TECH PUBLICDatasheet (PDF)

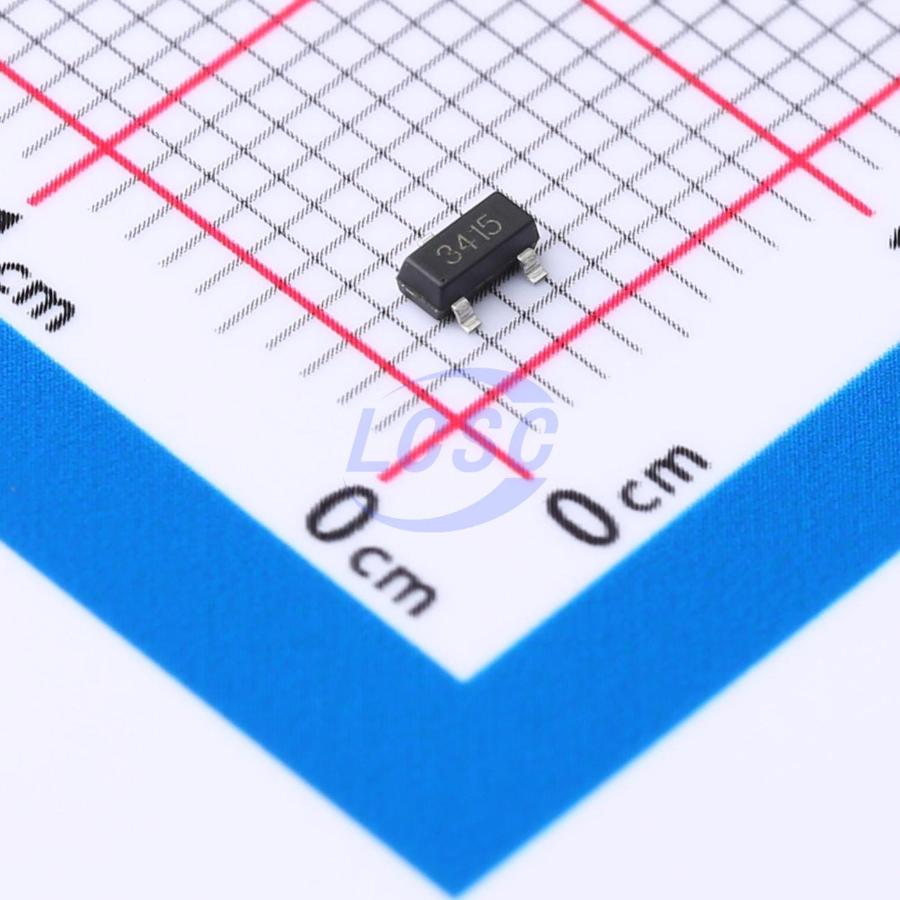

TPM3415ES3-1
20V 4A 1.4W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 4A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM3415ES3-1
- Store part #
- C5310937
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C5310937
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.37 | ₹83.70 |
| 100+ | ₹6.65 | ₹665.00 |
| 300+ | ₹5.79 | ₹1,737.00 |
| 3,000+ | ₹4.80 | ₹14,400.00 |
| 6,000+ | ₹4.29 | ₹25,740.00 |
| 9,000+ | ₹4.04 | ₹36,360.00 |
10 × ₹8.37
₹83.70
excl. GST
₹98.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM3415ES3-1
₹83.70 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 121.3pF
- Ciss-Input Capacitance
- 1.1811nF
- Pd - Power Dissipation
- 1.4W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 114.8pF
- RDS(on)
- 36mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10.2nC@4.5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 650mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
2NM65 is a super-junction MOSFET device. It employs advanced planar stripe DMOS technology, delivering excellent switching performance and ultra-low on-resistance. 2NM65 is widely used in electronic lamp ballasts based on half-bridge topology, high-efficiency switch-mode power supplies, active power factor correction, and related applications.
Applications
- Load/Power Switching
- Interfacing
- Switching
- Logic Level Shift
Key features
- RDS(ON) ≤ 2.52Ω at VGS = 10V, ID = 1.0A
- Fast switching capability
- Avalanche energy specified
- Improved dv/dt capability with high ruggedness
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMV50EPEA#C7472863TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,070 | ₹7.59 · 3,070 in stock | View |
 | TPM3415ES3#C2841417TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 3,930 | ₹8.55 · 3,930 in stock | View |
 | AO3415#C5380662TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,840 | ₹7.62 · 6,840 in stock | View |
 | APM2301CAC-TP#C47117515TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,770 | ₹8.84 · 2,770 in stock | View |
 | PMV33UPE#C28646373TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,450 | ₹6.89 · 2,450 in stock | View |
