NexperiaDatasheet (PDF)

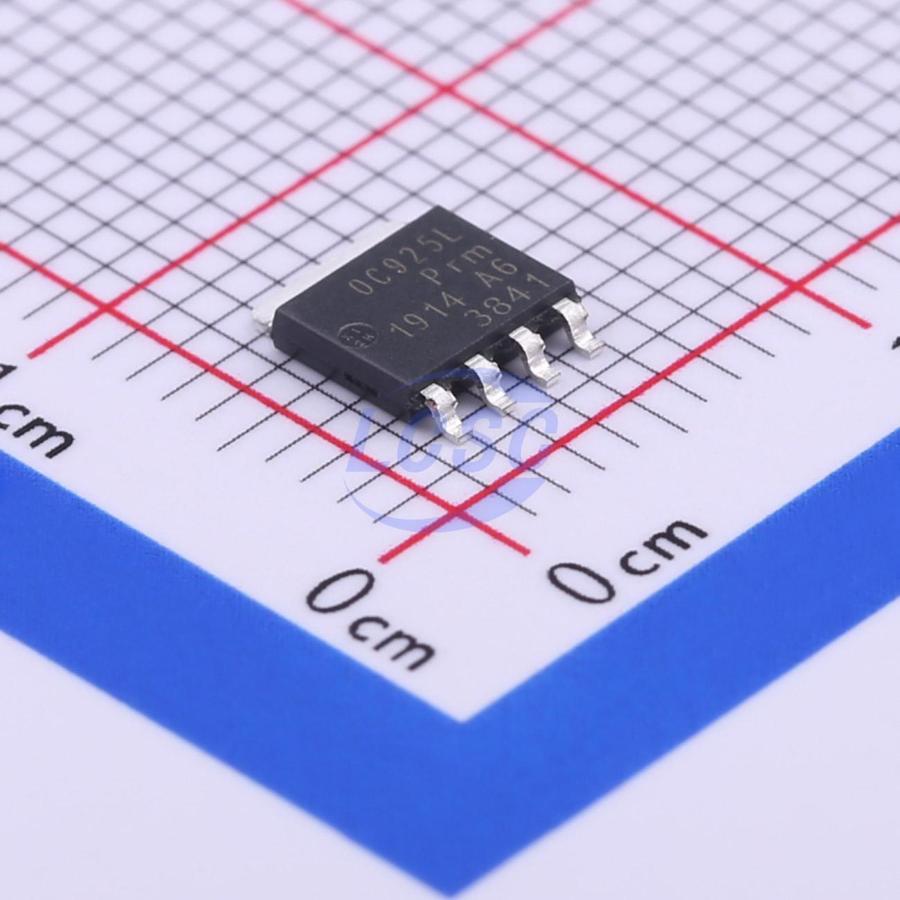

PSMN0R9-25YLC,115
N-Channel 25V 100A 272W LFPAK56(PowerSO-8)
LFPAK56(PowerSO-8)ROHS3 CompliantActive
MOSFET N-CH 25V 100A LFPAK56(PowerSO-8)
- Manufacturer
- Nexperia
- Manufacturer part #
- PSMN0R9-25YLC,115
- Store part #
- C179450
- Package / case
- LFPAK56(PowerSO-8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
402 in stock
#C179450
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.53 | ₹135.53 |
| 10+ | ₹109.04 | ₹1,090.40 |
| 30+ | ₹95.79 | ₹2,873.70 |
| 100+ | ₹82.54 | ₹8,254.00 |
| 500+ | ₹74.72 | ₹37,360.00 |
| 1,500+ | ₹70.60 | ₹1,05,900.00 |
1 × ₹135.53
₹135.53
excl. GST
₹159.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PSMN0R9-25YLC,115
₹135.53 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.437nF
- Ciss-Input Capacitance
- 6.775nF
- Pd - Power Dissipation
- 272W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 573pF
- RDS(on)
- 1.25mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.95V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Logic level enhancement mode N-channel MOSFET in LFPAK package. This product is designed and qualified for use in a wide range of industrial, communications and domestic equipment.
Applications
- Power OR-ing
- Server power supplies
- Sync rectifier
Key features
- High reliability Power SO8 package, qualified to 17500
- Optimised for 4.5V Gate drive utilising NextPower Superjunction technology
- Ultra low QG, QGD and QOSS for high system efficiencies at low and high loads
- Ultra low Rdson and low parasitic inductance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN1R0-30YLC,115#C82742Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 299 | ₹185.48 · 299 in stock | View |
 | BUK9Y1R6-40HX#C550041Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 1,394 | ₹279.26 · 1,394 in stock | View |
 | PSMN1R7-40YLDX#C553236Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 4 | ₹549.22 · 4 in stock | View |
 | PSMN3R2-40YLDX#C553274Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 5 | ₹130.09 · 5 in stock | View |
 | PSMN1R5-30YLC,115#C427523Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 1,228 | ₹152.91 · 1,228 in stock | View |
