NexperiaDatasheet (PDF)

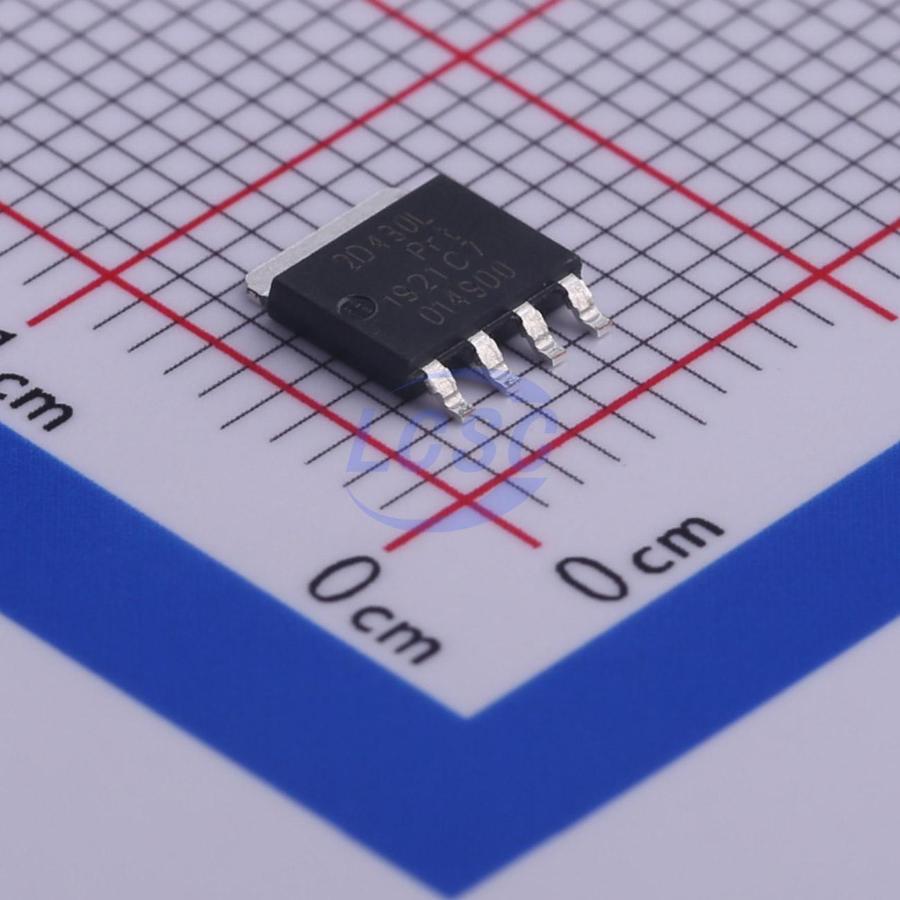

PSMN2R4-30YLDX
N-Channel 30V 100A 106W Surface Mount LFPAK-56
LFPAK-56ROHS3 CompliantActive
MOSFET N-CH 30V 100A LFPAK-56
- Manufacturer
- Nexperia
- Manufacturer part #
- PSMN2R4-30YLDX
- Store part #
- C478163
- Package / case
- LFPAK-56
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C478163
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.52 | ₹88.52 |
| 10+ | ₹70.86 | ₹708.60 |
| 30+ | ₹61.92 | ₹1,857.60 |
| 100+ | ₹53.20 | ₹5,320.00 |
| 500+ | ₹47.97 | ₹23,985.00 |
| 1,500+ | ₹45.13 | ₹67,695.00 |
1 × ₹88.52
₹88.52
excl. GST
₹104.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PSMN2R4-30YLDX
₹88.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.175nF
- Ciss-Input Capacitance
- 2.256nF
- Pd - Power Dissipation
- 106W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16.2nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Logic level gate drive N-channel enhancement mode MOSFET in LFPAK56 package. NextPowerS3 portfolio utilising Nexperia’s unique “SchottkyPlus” technology delivers high efficiency, low spiking performance usually associated with MOSFETs with an integrated Schottky or Schottky-like diode but without problematic high leakage current. NextPowerS3 is particularly suited to high efficiency applications at high switching frequencies.
Applications
- On-board DC-to-DC solutions for server and telecommunications
- Secondary-side synchronous rectification in telecommunication applications Voltage regulator modules (VRM)
- Point-of-Load (POL) modules
- Power delivery for V-core, ASIC, DDR, GPU, VGA and system components
- Brushed and brushless motor control
Key features
- Ultra low QG, QGD and QOSS for high system efficiency, especially at higher switching frequencies
- Superfast switching with soft-recovery; s-factor > 1
- Low spiking and ringing for low EMI designs
- Unique “SchottkyPlus” technology; Schottky-like performance with <1μA leakage at 25°C
- Optimised for 4.5V gate drive
- Low parasitic inductance and resistance
- High reliability clip bonded and solder die attach Power SO8 package; no glue, no wire bonds, qualified to 175°C
- Wave solderable; exposed leads for optimal visual solder inspection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN2R0-40YLBX#C24247238Nexperia · LFPAK-56 | Nexperia | LFPAK-56 | 9 | ₹310.05 · 9 in stock | View |
| BUK7S2R0-40HJ#C6136026Nexperia · LFPAK-56 | Nexperia | LFPAK-56 | 78 | ₹493.24 · 78 in stock | View | |
 | PSMN1R2-30YLD-VB#C52209239VBsemi Elec · LFPAK-56 | VBsemi Elec | LFPAK-56 | 5 | ₹208.99 · 5 in stock | View |
 | PSMN4R5-30YLC,115-VB#C52209270VBsemi Elec · LFPAK-56 | VBsemi Elec | LFPAK-56 | 5 | ₹208.33 · 5 in stock | View |
 | PSMN1R2-30YLDX-VB#C52209279VBsemi Elec · LFPAK-56 | VBsemi Elec | LFPAK-56 | 3 | ₹208.99 · 3 in stock | View |
