HXY MOSFETDatasheet (PDF)

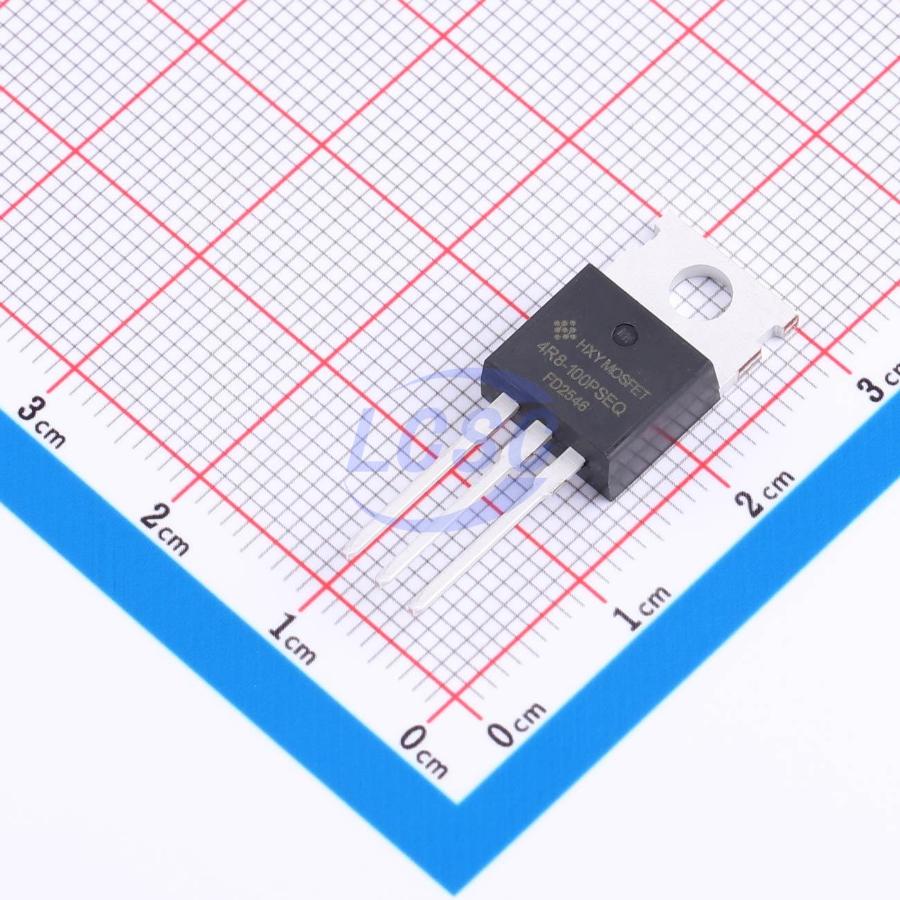

PSMN4R8-100PSEQ-HXY
178W 100V 120A 4.1mΩ@10V 1 N-channel N-Channel TO-220C Single FETs, MOSFETs
TO-220CRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PSMN4R8-100PSEQ-HXY
- Store part #
- C53262943
- Package / case
- TO-220C
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C53262943
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹202.02 | ₹202.02 |
| 10+ | ₹169.40 | ₹1,694.00 |
| 50+ | ₹151.47 | ₹7,573.50 |
| 100+ | ₹131.16 | ₹13,116.00 |
| 500+ | ₹122.09 | ₹61,045.00 |
| 1,000+ | ₹117.97 | ₹1,17,970.00 |
1 × ₹202.02
₹202.02
excl. GST
₹238.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN4R8-100PSEQ-HXY
₹202.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 592pF
- Ciss-Input Capacitance
- 4.102nF
- Pd - Power Dissipation
- 178W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 19.8pF
- RDS(on)
- 4.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 69nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.826 g
