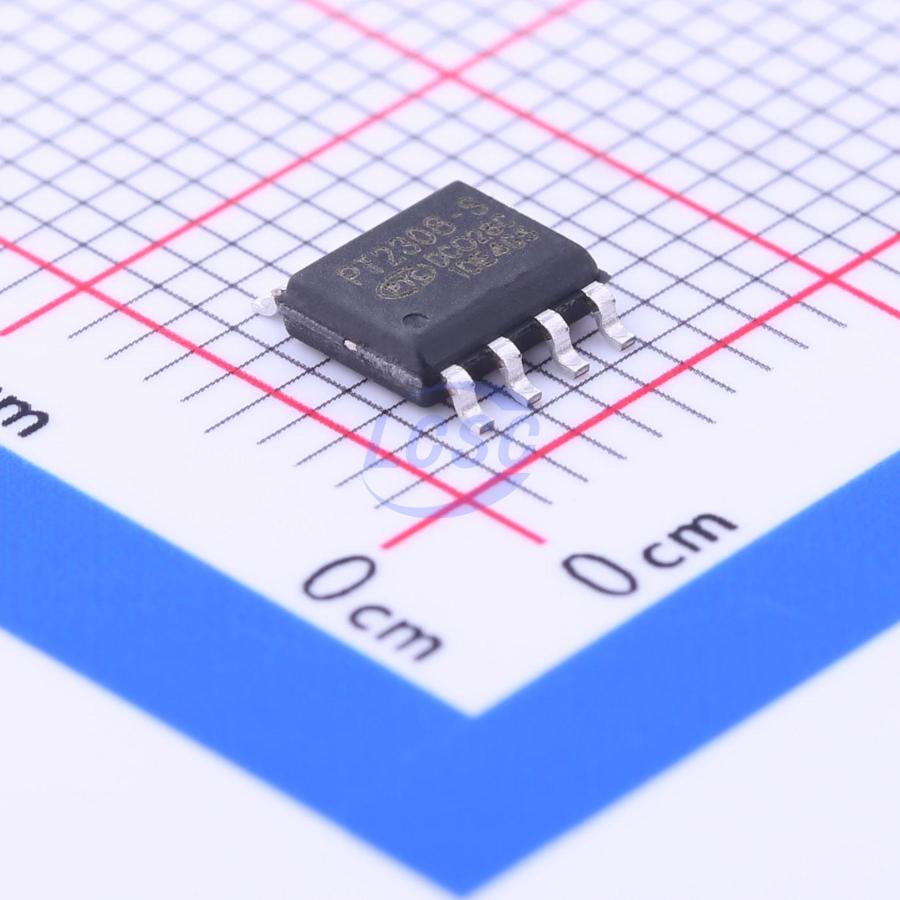

PT2308-S
2-Channel Class AB SOIC-8 Audio Amplifiers
Headphone Driver IC
- Manufacturer
- PTC
- Manufacturer part #
- PT2308-S
- Store part #
- C115492
- Package / case
- SOIC-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C115492
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.82 | ₹174.10 |
| 50+ | ₹28.80 | ₹1,440.00 |
| 150+ | ₹26.22 | ₹3,933.00 |
| 500+ | ₹22.99 | ₹11,495.00 |
| 2,500+ | ₹21.55 | ₹53,875.00 |
| 5,000+ | ₹20.69 | ₹1,03,450.00 |
5 × ₹34.82
₹174.10
excl. GST
₹205.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PT2308-S
₹174.10 for 5 + GST
Specifications
- Total Harmonic Distortion + Noise (THD+N)
- 0.001%
- Number of Inputs
- 2 Pairs Differential Inputs
- Signal-to-Noise Ratio
- 110dB
- Speaker Channels
- 2-Channel
- Class
- Class AB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
PT2308 is a Class AB stereo headphone driver chip utilizing CMOS Technology specially designed for portable digital audio applications. It is housed in an 8-pin DIP or SOP package and is functionally compatible with TDA1308. Pin assignments and application circuit are optimized for lower cost effectiveness and easy PCB Layout.
Applications
- Portable digital audio
- Hi-fi audio system
- Walkman CD-ROM
Key features
- CMOS technology
- Low power consumption
- Wide temperature range
- Excellent power supply ripple rejection
- High signal-to-noise ratio, S/N = 110dB
- Low harmonic distortion, THD = 0.001%
- Large output voltage swing
