PT438

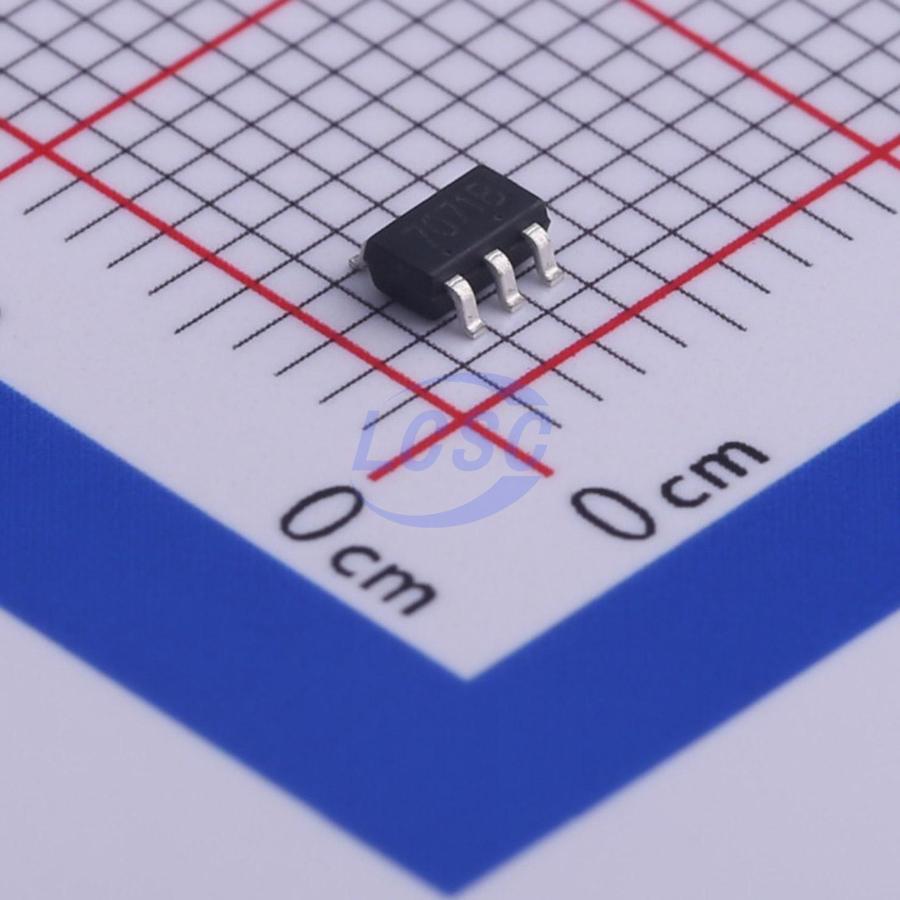

Battery Protection IC Lithium Battery SOT-23-6L
Specialized chip for single-cell lithium-ion battery power supply systems
- Manufacturer
- PUOLOP
- Manufacturer part #
- PT438
- Store part #
- C479059
- Package / case
- SOT-23-6L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C479059
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.46 | ₹74.60 |
| 100+ | ₹5.90 | ₹590.00 |
| 300+ | ₹5.11 | ₹1,533.00 |
| 3,000+ | ₹4.25 | ₹12,750.00 |
| 6,000+ | ₹3.78 | ₹22,680.00 |
| 9,000+ | ₹3.55 | ₹31,950.00 |
| 21,000+ | ₹3.49 | ₹73,290.00 |
| 39,000+ | ₹3.47 | ₹1,35,330.00 |
10 × ₹7.46
₹74.60
excl. GST
₹88.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PT438
₹74.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2V~5V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
PT438 is a dedicated IC designed for single-cell lithium-ion battery-powered systems (e.g., mobile phone battery packs) to protect lithium-ion batteries from damage or reduced service life caused by overcharge, over-discharge, and/or overcurrent. The ultra-compact package and minimal external component requirements allow the PT438 to be seamlessly integrated into space-constrained battery packs. Precise overcharge protection voltage ensures safe and adequate charging. The low-power design minimizes quiescent current consumption during both battery operation and storage.
Key features
- High-precision voltage detection circuit
- Overcharge detection voltage 4.375V, accuracy ±25mV
- Overcharge release voltage 4.10V, accuracy ±50mV
- Over-discharge detection voltage 2.40V, accuracy ±100mV
- Over-discharge release voltage 3.00V, accuracy ±100mV
- Discharge overcurrent detection voltage 176mV, accuracy ±36mV
- Load short-circuit detection voltage 1.00V, accuracy ±300mV
- Delay times set by internal circuit (no external capacitor required)
- Overcharge detection delay time: 100ms typical
- Over-discharge detection delay time: 50ms typical
- Discharge overcurrent detection delay time: 10ms typical
- Load short-circuit detection delay time: 50μs typical
- Sleep function: selectable "enabled" or "disabled" (see product catalog for details)
- Over-discharge recovery function: selectable "enabled" or "disabled" (see product catalog for details)
- Low supply current
- Operating mode: 3.0μA typical, 6.0μA maximum (VCC = 3.9V)
- 0V battery charging function
- Operating temperature range: -40℃~+85℃
- Compact package: SOT23-6L
