NexperiaDatasheet (PDF)

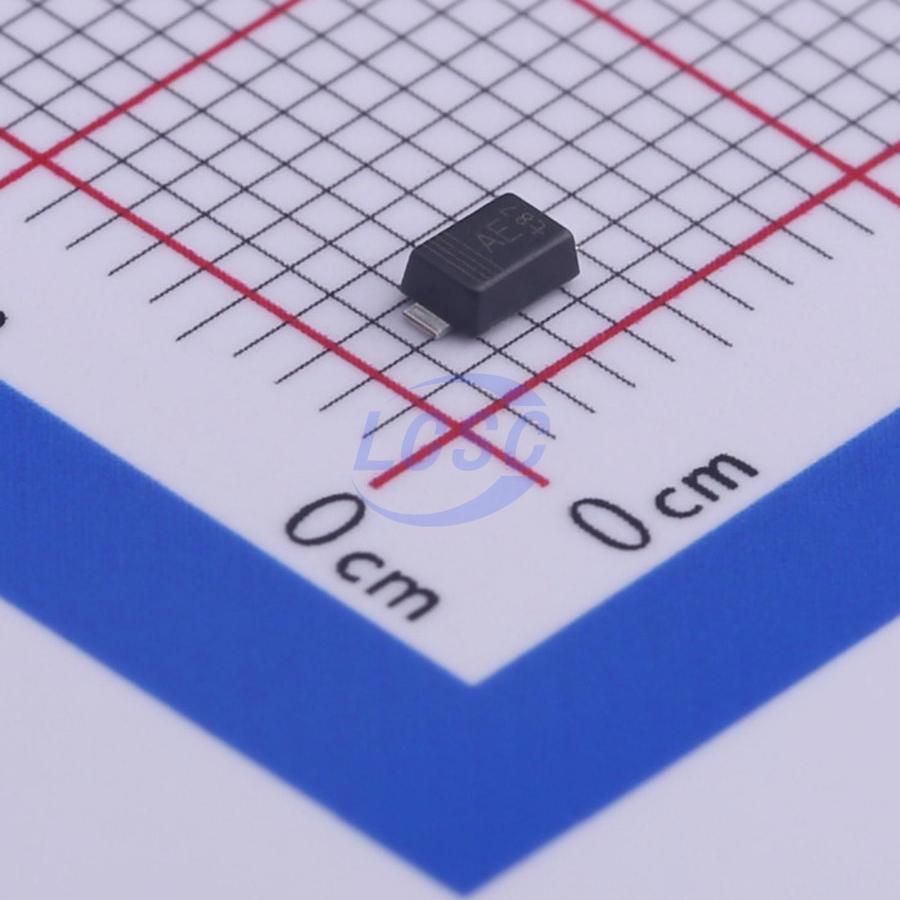

PTVS14VS1UR,115
23.2VC Clamp 17.2A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
TVS DIODE 14VWM 23.2VC SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS14VS1UR,115
- Store part #
- C456117
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
915 in stock
#C456117
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.01 | ₹51.01 |
| 10+ | ₹39.47 | ₹394.70 |
| 30+ | ₹34.45 | ₹1,033.50 |
| 100+ | ₹28.35 | ₹2,835.00 |
| 500+ | ₹25.73 | ₹12,865.00 |
| 1,000+ | ₹23.99 | ₹23,990.00 |
1 × ₹51.01
₹51.01
excl. GST
₹60.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS14VS1UR,115
₹51.01 for 1 + GST
Specifications
- Clamping Voltage
- 23.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17.2A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 15.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: Small plastic package suitable for Pppm = 400 W (350 W for 3V3) surface-mounted design
- Reverse standoff voltage range: VRWM = 3.3 V to 64 V
- Reverse current: IRM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF4L14A#C1976940Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 3,850 | ₹31.71 · 3,850 in stock | View |
 | TPSMF4L14A#C1976566Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 2,940 | ₹33.93 · 2,940 in stock | View |
 | SM4F14A#C20603447YANGJIE · SOD-123 | YANGJIE | SOD-123 | 750 | ₹5.72 · 750 in stock | View |
 | PTVS15VS1UR,115#C513104Nexperia · SOD-123W | Nexperia | SOD-123W | 6,650 | ₹34.90 · 6,650 in stock | View |
 | PTVS13VS1UTR,115#C553370Nexperia · SOD-123W | Nexperia | SOD-123W | 500 | ₹73.64 · 500 in stock | View |
