NexperiaDatasheet (PDF)

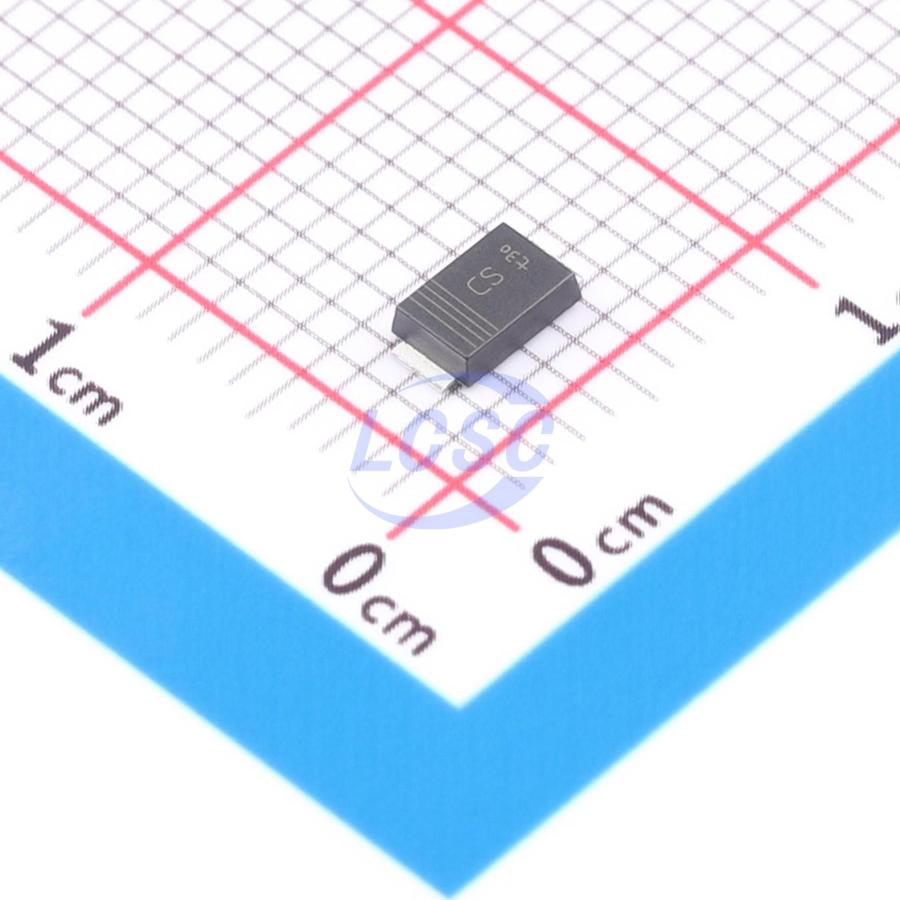

PTVS24VP1UTP,115
38.9VC Clamp 15.4A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS24VP1UTP,115
- Store part #
- C461162
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C461162
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.77 | ₹110.77 |
| 10+ | ₹88.84 | ₹888.40 |
| 30+ | ₹77.77 | ₹2,333.10 |
| 100+ | ₹66.90 | ₹6,690.00 |
| 500+ | ₹60.38 | ₹30,190.00 |
| 1,000+ | ₹57.13 | ₹57,130.00 |
1 × ₹110.77
₹110.77
excl. GST
₹130.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS24VP1UTP,115
₹110.77 for 1 + GST
Specifications
- Clamping Voltage
- 38.9V
- Peak Pulse Current (Ipp)
- 15.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.088 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Peak pulse power rating: PPPM = 600 W
- High temperature stability: TJ = 185℃
- Reverse standoff voltage range: VRWM = 3.3V to 64V
- Small plastic package for SMT design
- Reverse current: IRM = 0.001uA
- AEC-Q101 qualified
- Ultra-low profile package: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| VS24VUA1LAMTFTR#C1976781ROHM · SOD-128 | ROHM | SOD-128 | 272 | ₹33.25 · 272 in stock | View | |
 | PTVS26VP1UTP,115#C553401Nexperia · SOD-128 | Nexperia | SOD-128 | 99 | ₹119.24 · 99 in stock | View |
 | PTVS24VP1UP,115#C553397Nexperia · SOD-128 | Nexperia | SOD-128 | On request | ₹12.22 · 0 in stock | View |
| VS24VUA1LAMTR#C3706530ROHM · SOD-128 | ROHM | SOD-128 | On request | ₹24.32 · 0 in stock | View | |
| PTVS24VP1UTP-QX#C20235908Nexperia · SOD-128 | Nexperia | SOD-128 | On request | ₹78.27 · 0 in stock | View | |
