NexperiaDatasheet (PDF)

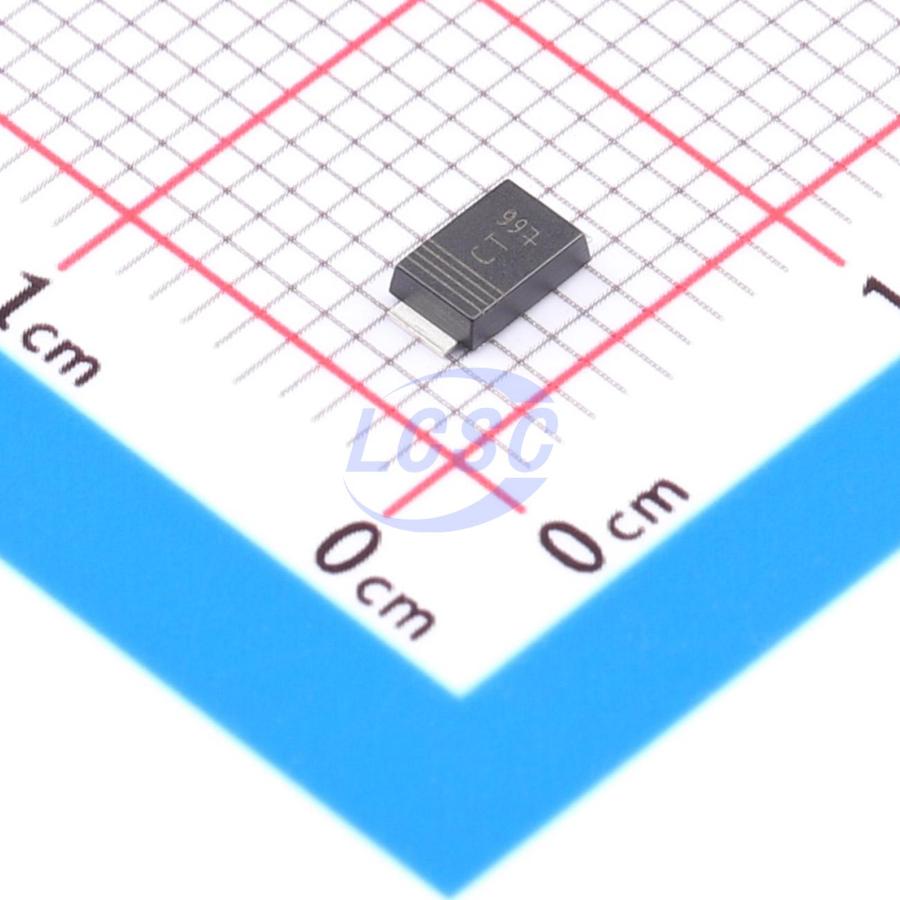

PTVS26VP1UTP,115
42.1VC Clamp 14.3A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS26VP1UTP,115
- Store part #
- C553401
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C553401
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.24 | ₹119.24 |
| 10+ | ₹95.57 | ₹955.70 |
| 30+ | ₹83.84 | ₹2,515.20 |
| 100+ | ₹72.12 | ₹7,212.00 |
| 500+ | ₹64.95 | ₹32,475.00 |
| 1,000+ | ₹61.47 | ₹61,470.00 |
1 × ₹119.24
₹119.24
excl. GST
₹140.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS26VP1UTP,115
₹119.24 for 1 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 14.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 28.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.102 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Peak pulse power rating: PPPM = 600 W
- High temperature stability: TJ = 185℃
- Reverse standoff voltage range: VRWM = 3.3V to 64V
- Small plastic package for SMT design
- Reverse current: IRM = 0.001uA
- AEC-Q101 qualified
- Ultra-low profile package: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS28VP1UP,115#C553404Nexperia · SOD-128 | Nexperia | SOD-128 | 325 | ₹30.39 · 325 in stock | View |
| VS24VUA1LAMTFTR#C1976781ROHM · SOD-128 | ROHM | SOD-128 | 272 | ₹33.25 · 272 in stock | View | |
 | PTVS24VP1UTP,115#C461162Nexperia · SOD-128 | Nexperia | SOD-128 | 75 | ₹110.77 · 75 in stock | View |
 | PTVS26VP1UP,115#C72320Nexperia · SOD-128 | Nexperia | SOD-128 | On request | ₹40.60 · 0 in stock | View |
| SMA6S26AH#C2444896Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹23.23 · 0 in stock | View | |
