TECH PUBLICDatasheet (PDF)

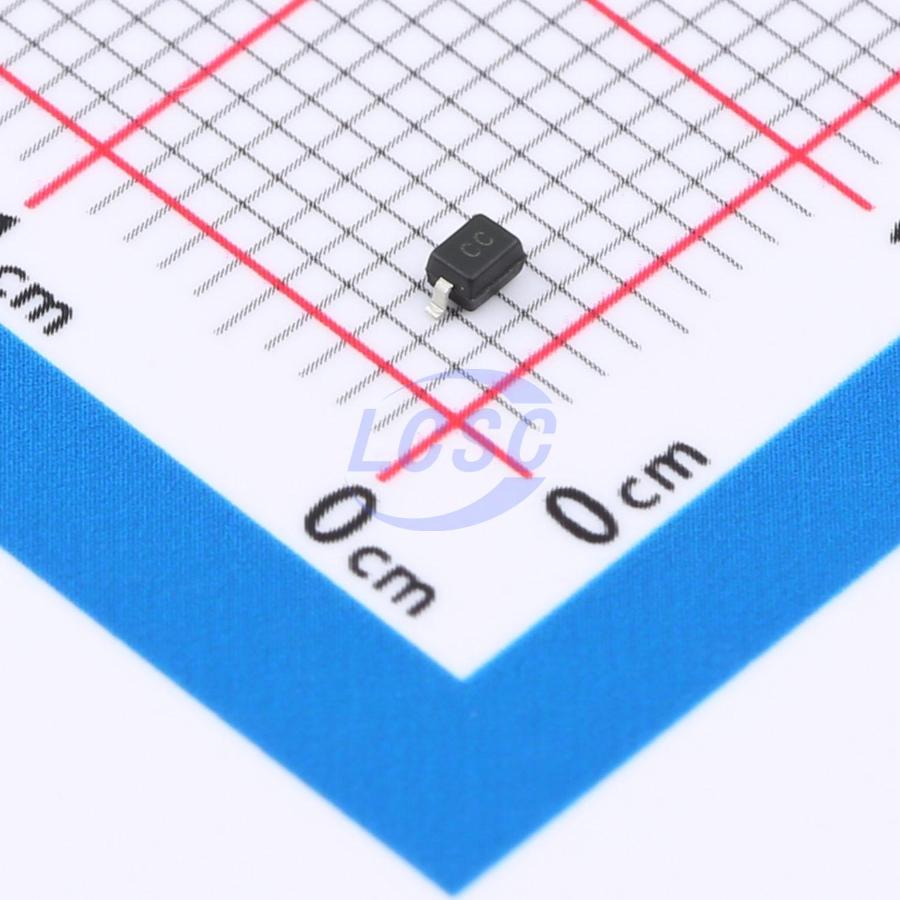

PUDD32C03L01
nan
SOD-323RoHSActive
3.3VWM 16VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PUDD32C03L01
- Store part #
- C2905613
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C2905613
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.03 | ₹70.30 |
| 100+ | ₹5.66 | ₹566.00 |
| 300+ | ₹4.97 | ₹1,491.00 |
| 3,000+ | ₹4.00 | ₹12,000.00 |
| 6,000+ | ₹3.57 | ₹21,420.00 |
| 9,000+ | ₹3.37 | ₹30,330.00 |
10 × ₹7.03
₹70.30
excl. GST
₹82.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PUDD32C03L01
₹70.30 for 10 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- USB Ports
- SmartPhones
- Wireless Systems
- Ethernet10/100/1000Base T
Key features
- 350W peak pulse power (8/20μs)
- Low operating: 3.3V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
