TECH PUBLICDatasheet (PDF)

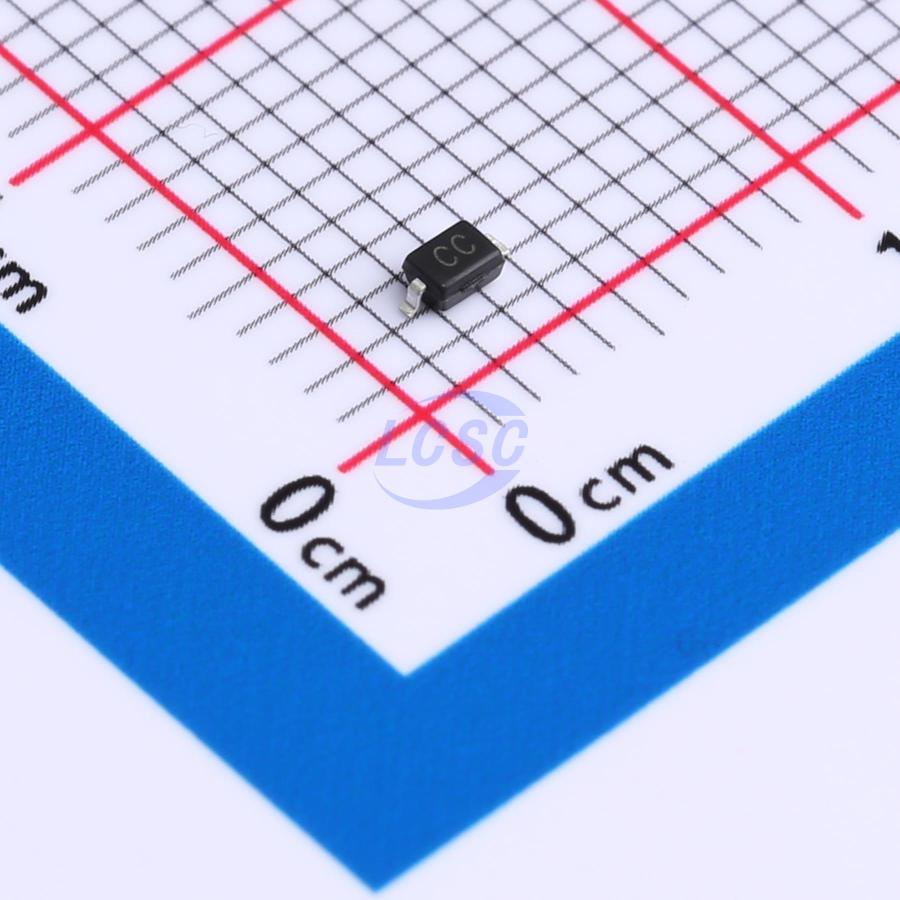

TPGC03C-1
nan
SOD-323RoHSActive
3.3VWM 16VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC03C-1
- Store part #
- C5197394
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,925 in stock
#C5197394
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.05 | ₹30.25 |
| 50+ | ₹5.90 | ₹295.00 |
| 150+ | ₹5.79 | ₹868.50 |
| 500+ | ₹5.70 | ₹2,850.00 |
5 × ₹6.05
₹30.25
excl. GST
₹35.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGC03C-1
₹30.25 for 5 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Applications
- USB Ports
- Smart Phones
- Wireless Systems Ethernet 10/100/1000Base T
Key features
- 350W peak pulse power (8/20μs)
- Low operating :3.3V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PUDD32C03L01#C2905613TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 80 | ₹7.03 · 80 in stock | View |
 | GBLC03CI#C2936994TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 9,540 | ₹7.69 · 9,540 in stock | View |
 | SP4020-01FTG-C#C2940620TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 4,865 | ₹14.33 · 4,865 in stock | View |
 | TUSD03FBX#C5310965TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 1,440 | ₹8.10 · 1,440 in stock | View |
 | TPGBLC03C#C587148TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 3,950 | ₹8.73 · 3,950 in stock | View |
