HXY MOSFETDatasheet (PDF)

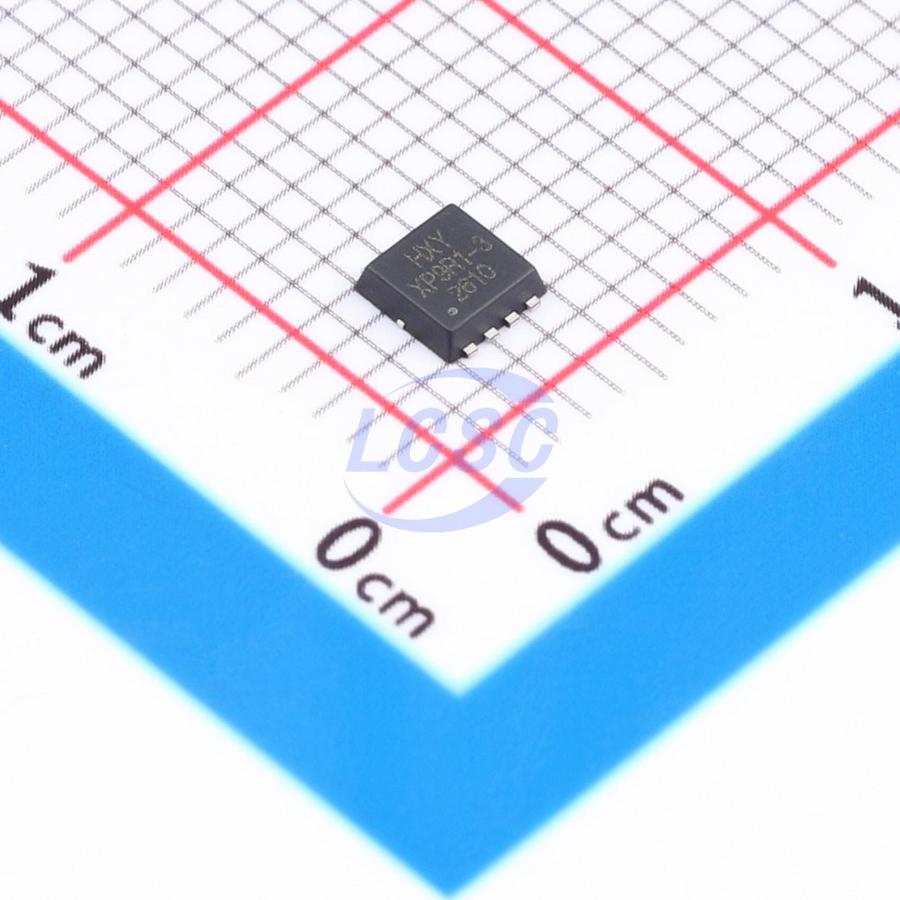

PXP9R1-30QLJ-HXY
30V 55A 21.5W 8.5mΩ@10V 1 P-Channel P-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- PXP9R1-30QLJ-HXY
- Store part #
- C54582657
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582657
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.40 | ₹83.40 |
| 10+ | ₹68.36 | ₹683.60 |
| 30+ | ₹61.04 | ₹1,831.20 |
| 100+ | ₹53.53 | ₹5,353.00 |
| 500+ | ₹43.86 | ₹21,930.00 |
| 1,000+ | ₹41.70 | ₹41,700.00 |
1 × ₹83.40
₹83.40
excl. GST
₹98.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PXP9R1-30QLJ-HXY
₹83.40 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 346pF
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 21.5W
- Reverse Transfer Capacitance (Crss)
- 319pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.092 g
Overview
PXP9R1 - 30QLJ utilizes advanced trench technology to deliver excellent on-resistance RDS(ON), low gate charge, and operates at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = -30V, ID = -55A
- RDS(ON) < 11mΩ (at VGS = -10V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3013SFV-HXY#C22366584HXY MOSFET · DFN3x3-8L | HXY MOSFET | DFN3x3-8L | 870 | ₹34.15 · 870 in stock | View |
 | SIS413DN-T1-GE3-HXY#C22366586HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 235 | ₹43.50 · 235 in stock | View |
 | DMP3011SFVW-7-HXY#C49420463HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 640 | ₹47.85 · 640 in stock | View |
 | SIS427EDN-T1-GE3-HXY#C54582640HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 46 | ₹67.06 · 46 in stock | View |
 | DMP3018SFV-7-HXY#C54582642HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 40 | ₹46.25 · 40 in stock | View |
