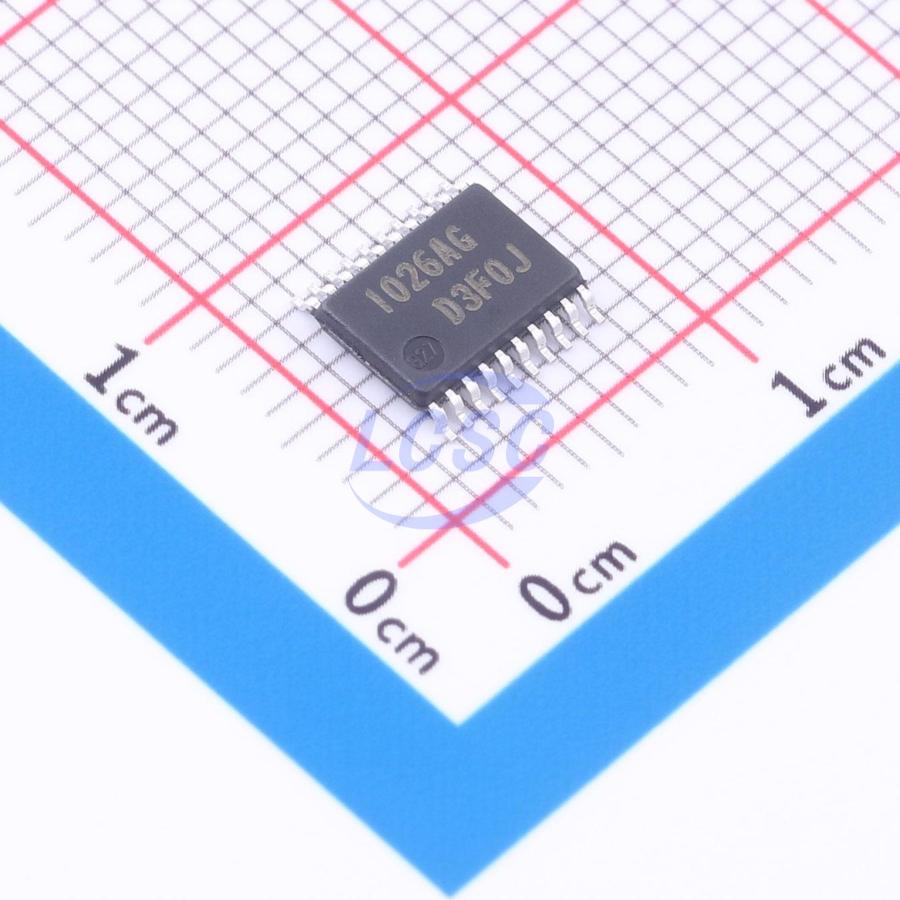

R5F1026AGSP#55

True low-power platform (63 μA/MHz) for the general-purpose applications, with 1.8-V to 5.5-V operation, 2- to 16-Kbyte code flash memory, and 31 DMIPS at 24 MHz

Key features

• Ultra-low power consumption technology
• VDD = single power supply voltage of 1.8 to 5.5 V which can operate at a low voltage
• HALT mode
• STOP mode
• SNOOZE mode
• RL78 CPU core
• CISC architecture with 3-stage pipeline
• Minimum instruction execution time: Can be changed from high speed (0.04167 μs @ 24 MHz operation with high-speed on-chip oscillator) to ultra-low speed (Δ μs @ 1 MHz operation)
• Address space: 1 MB
• General-purpose registers: (8-bit register x 8) x 4 banks
• On-chip RAM: 256 B to 2 KB
• Code flash memory
• Code flash memory: 2 to 16 KB
• Block size: 1 KB
• Prohibition of block erase and rewriting (security function)
• On-chip debug function
• Self-programming (with flash shield window function)
• Data flash memory
• Data flash memory: 2 KB
• Back ground operation (BGO): Instructions are executed from the program memory while rewriting the data flash memory.
• Number of rewrites: 1,000,000 times (TYP.)
• Voltage of rewrites: VDD = 1.8 to 5.5 V
• High-speed on-chip oscillator
• Select from 24 MHz, 16 MHz, 12 MHz, 8 MHz, 6 MHz, 4 MHz, 3 MHz, 2 MHz, and 1 MHz
• High accuracy: +/- 1.0% (VDD = 1.8 to 5.5 V, TA = -20 to +85 ℃)
• Operating ambient temperature
• TA = -40 to +85 ℃ (A: Consumer applications, D: Industrial applications)
• TA = -40 to +105 ℃ (G: Industrial applications)
• Power management and reset function
• On-chip power-on-reset (POR) circuit
• On-chip voltage detector (LVD) (Select interrupt and reset from 12 levels)
• DMA (Direct Memory Access) controller
• 2 channels
• Number of clocks during transfer between 8/16-bit SFR and internal RAM: 2 clocks
• Multiplier and divider/multiply-accumulator
• 16 bits x 16 bits = 32 bits (Unsigned or signed)
• 32 bits x 32 bits = 32 bits (Unsigned)
• 16 bits x 16 bits + 32 bits = 32 bits (Unsigned or signed)
• Serial interface
• CSI : 1 to 3 channels
• UART : 1 to 3 channels
• Simplified I²C communication : 0 to 3 channels
• I²C communication : 1 channel
• Timer
• 16-bit timer : 4 to 8 channels
• 12-bit interval timer : 1 channel
• Watchdog timer : 1 channel (operable with the dedicated low-speed on-chip oscillator)
• A/D converter
• 8/10-bit resolution A/D converter (VDD = 1.8 to 5.5 V)
• 8 to 11 channels, internal reference voltage (1.45 V), and temperature sensor
• I/O port
• I/O port: 18 to 26 (N-ch open drain I/O [withstand voltage of 6 V]: 2, N-ch open drain I/O [VDD withstand voltage]: 4 to 9)
• Can be set to N-ch open drain, TTL input buffer, and on-chip pull-up resistor
• Different potential interface: Can connect to a 1.8/2.5/3 V device
• On-chip key interrupt function
• On-chip clock output/buzzer output controller
• Others
• On-chip BCD (binary-coded decimal) correction circuit
