R5F51303ADFL#10 RENESAS
RENESAS

R5F51303ADFL#10

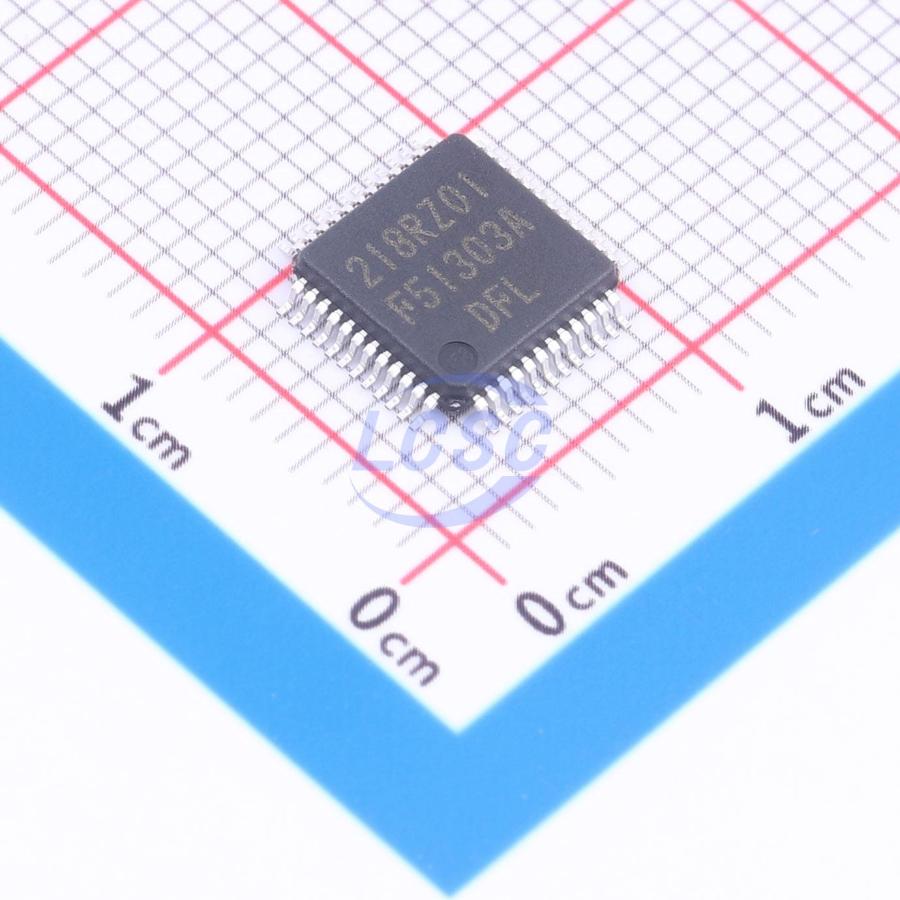

RX 32 Bit 32MHz LQFP-48(7x7) Microcontrollers RoHS

LQFP-48(7x7)ROHS3 CompliantActive

32-bit RX MCUs, 50 DMIPS, up to 512-KB flash memory, IEC60730 compliance, single supply

Manufacturer
RENESAS
Manufacturer part #
R5F51303ADFL#10
Store part #
C1018292
Package / case
LQFP-48(7x7)
Packaging
Tray
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C1018292

Stock & price checked 39 h ago

QuantityUnit pricePack price
1+₹572.61₹572.61
10+₹558.95₹5,589.50
30+₹549.85₹16,495.50
100+₹540.74₹54,074.00

1 × ₹572.61

₹572.61

excl. GST

₹675.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 2,000 per tray

R5F51303ADFL#10

₹572.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

ADC (Bit)
12bit
Number of I/O
38
Operating Temperature
-40℃~+85℃
Voltage - Supply
1.8V~5.5V
Program Memory Type
FLASH
EEPROM
8KB
Program Storage Size
64KB
CPU Core
RX
Core Size
32 Bit
CPU Maximum Speed
32MHz
Oscillator Type
Built-in

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
3A991A2
Packaging
Tray
Standard pack
2,000 / Tray
Sold per
Piece
Minimum order
1
Unit weight
6.1 g

Overview

32-MHz, 32-bit RX MCUs, 50 DMIPS, up to 512-KB flash memory, up to 36 pins capacitive touch sensing unit, up to 6 comms channels, 12-bit A/D, D/A, RTC, IEC60730 compliance, 1.8-V to 5.5-V single supply

Key features

  • 32-bit RX CPU core
  • Max. operating frequency: 32 MHz Capable of 50 DMIPS in operation at 32 MHz
  • Accumulator handles 64-bit results (for a single instruction) from 32-bitx32-bit operations
  • Multiplication and division unit handles 32-bitx32-bit operations (multiplication instructions take one CPU clock cycle)
  • Fast interrupt
  • CISC Harvard architecture with 5-stage pipeline
  • Variable-length instructions, ultra-compact code
  • On-chip debugging circuit
  • Low power design and architecture
  • Operation from a single 1.8-V to 5.5-V supply
  • Three low power consumption modes
  • Low power timer (LPT) that operates during the software standby state
  • Supply current High-speed operating mode: 96 μA/MHz Supply current in software standby mode: 0.37 μA
  • Recovery time from software standby mode: 4.8 μs
  • On-chip flash memory for code, no wait states
  • 64 K/128 K/256 K/383 K/512 Kbytes
  • Operation at 32 MHz, read cycle of 31.25 ns
  • No wait states for reading at full CPU speed
  • Programmable at 1.8 V
  • For instructions and operands
  • On-chip data flash memory
  • 8 Kbytes (1,000,000 program/erase cycles (typ.))
  • BGO (Background Operation)
  • On-chip SRAM, no wait states
  • 10 K/16 K/32 K/48 Kbytes size capacities
  • DTC
  • Four transfer modes
  • Transfer can be set for each interrupt source.
  • Module operation can be initiated by event signals without using interrupts.
  • Linked operation between modules is possible while the CPU is sleeping.
  • Reset and supply management
  • Eight types of reset, including the power-on reset (POR)
  • Low voltage detection (LVD) with voltage settings
  • Clock functions
  • External clock input frequency: Up to 20 MHz
  • Main clock oscillator frequency: 1 to 20 MHz
  • Sub clock oscillator frequency: 32.768 kHz
  • PLL circuit input: 4 MHz to 8 MHz
  • Low-speed on-chip oscillator: 4 MHz
  • High-speed on-chip oscillator: 32 MHz±1 %
  • IWDT-dedicated on-chip oscillator: 15 kHz
  • Generate a 32.768 kHz clock for the real-time clock
  • On-chip clock frequency accuracy measurement circuit (CAC)
  • Realtime clock
  • Adjustment functions (30 seconds, leap year, and error)
  • Calendar count mode or binary count mode selectable
  • Independent watchdog timer
  • 15-kHz on-chip oscillator produces a dedicated clock signal to drive IWDT operation.
  • Useful functions for IEC60730 compliance
  • Self-diagnostic and disconnection-detection assistance functions for the A/D converter, clock frequency accuracy measurement circuit, independent watchdog timer, RAM test assistance functions using the DOC, etc.
  • MPC
  • Input/output functions selectable from multiple pins
  • Up to 6 communication functions
  • SCI with many useful functions (up to 4 channels) Asynchronous mode (Fine adjustable baud rate: 0 to 255/255), clock synchronous mode, smart card interface mode
  • I²C bus interface: Transfer at up to 400 kbps, capable of SMBus operation (one channel)
  • RSPI (one channel): Transfer at up to 16 Mbps
  • Remote control signal reception
  • Two units integrated
  • Four pattern waveform matching supported
  • Up to 12 extended-function timersMPC
  • 16-bit MTU: input capture, output compare, complementary PWM output, phase counting mode (six channels)
  • 8-bit TMR (four channels)
  • 16-bit compare-match timers (two channels)
  • 12-bit A/D converter
  • Capable of conversion within 1.4 μs
  • 17 channels
  • Sampling time can be set for each channel
  • Conversion results compare features
  • Self-diagnostic function and analog input disconnection detection assistance function
  • Double trigger (data duplication) function for motor control
  • D/A converter
  • Capacitive touch sensing unit
  • Self-capacitance method: A single pin configures a single key, supporting up to 36 keys
  • Mutual capacitance method: Matrix configuration with 36 pins, supporting up to 324 keys
  • Comparator B
  • Two channels
