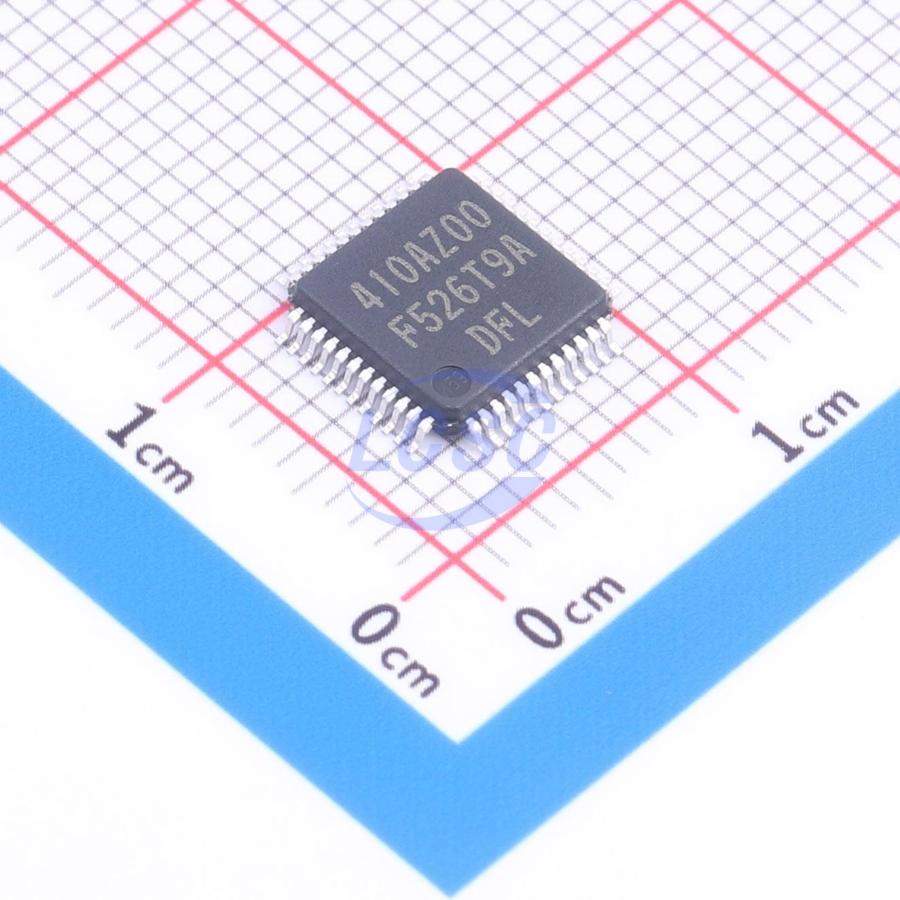

R5F526T9ADFL#30

120-MHz, 32-bit RX MCU, on-chip FPU, 709 CoreMark, Supportive of 5V power supply, up to 512-KB flash memory, up to 64-KB SRAM, 16-KB data flash memory, various communications interfaces including CAN FD, Simultaneous sampling with 3 units of 12-bit A/D converter (up to 7 channels), Analog comparator (6 channels), 120 MHz PWM (4 channels for 3-phase complementary, 2 channels for 5-phase complementary, 10 channels for single-phase complementary), 4-channel high-resolution PWM with resolution of 260 ps at the minimum, Encryption functions

Key features

• 32-bit RXv3 CPU core
• Maximum operating frequency: 120 MHz
• Capable of 709 CoreMark in operation at 120 MHz
• A collective register bank save function is available.
• Supports the memory protection unit (MPU)
• JTAG and FINE (one-line) debugging interfaces
• Low-power design and architecture
• Operation from a single 2.7- to 5.5-V supply
• Three low-power modes
• On-chip code flash memory
• Supports versions with up to 512 Kbytes of ROM
• Operation at 120 MHz (with no waiting)
• User code is programmable by on-board or off-board programming.
• Programming/erasing as background operations (BGOs)
• A dual-bank structure allows exchanging the start-up bank.
• On-chip data flash memory
• 16 Kbytes, reprogrammable up to 100,000 times
• Programming/erasing as background operations (BGOs)
• On-chip SRAM
• 64 K/48Kbytes of SRAM (with no waiting)
• Data transfer
• DMACAa: 8 channels
• DTCb: 1 channel
• ELC
• Module operation can be initiated by event signals without using interrupts
• Linked operation between modules is possible when the CPU is in sleep mode
• Reset and supply management
• Power-on reset (POR)
• Low voltage detection (LVD) with voltage settings
• Clock functions
• The main clock oscillator is connectable to an 8- to 24-MHz external crystal resonator and usable as the PLL reference clock.
• Internal 240-kHz LOCO and HOCO selectable from 16, 18, and 20 MHz
• 120-kHz clock for the IWDTa
• Useful functions for IEC60730 compliance
• Oscillation-stoppage detection, functions for self-diagnosis and detection of disconnection for the A/D converter, clock frequency accuracy measurement circuit, independent watchdog timer, RAM test-assisting function by DOC, and CRCA, etc.
• Register write protection function can protect values in important registers against overwriting.
• Encryption functions (Trusted Secure IP Lite)
• 128- or 256-bit key length of AES for ECB, CBC, GCM, others
• True random number generator
• Unauthorized access to the encryption engine is disabled and imposture and falsification of information are prevented
• Safe management of keys
• 5-V tolerance, open drain, input pull-up, switchable driving ability, and retention of the port output
• Various communications interfaces
• CAN FD: Compliant with ISO11898-1:2015, standard frame and extended frame (1 channel)
• SCIk and SCIh with multiple functionalities (up to 4 channels) Choose from among asynchronous mode, clock-synchronous mode, smart-card interface mode, simplified SPI, simplified I²C, and extended serial mode.
• Up to three RSCIs with Manchester encoding and HBS functionality
• I²C bus interface (RIICa) for transfer at up to 400 kbps (fast mode), capable of SMBus operation (1 channel)
• I³C bus interface (RI3C) for the single data rate (SDR) mode (1 channel)
• RSPId (1 channel) for transfer at up to 30 Mbps
• Up to 29 extended-function timers
• 32-bit (products with 64 Kbytes of RAM) or 16-bit (products with 48 Kbytes of RAM) GPTWa (8 channels): operation at 120 MHz, input capture, output compare, PWM waveforms: 10 output channels in single-phase complementary PWM mode/3 output channels in 3-phase complementary PWM mode/2 output channels in 5-phase complementary PWM mode, phase-counting mode, linkage with comparator (counting operation, PWM negate control)
• 16-bit MTU3d (9 channels): operation at 120 MHz, input capture, output compare, PWM waveforms: 2 output channels in 3-phase complementary PWM mode, phase-counting mode
• 8-bit TMRb (8 channels)
• 16-bit CMT (4 channels)
• High-resolution PWM waveform generation circuit (HRPWM): 4 channels
• Controlling the timing of rising or falling of the PWM output waveform for 32-bit GPTWa is realized with minimum of 260 ps resolution (in operation at 120 MHz)
• 12-bit A/D converter (S12ADH)
• Products with 64 Kbytes of RAM Three 12-bit units of sample-and-hold circuit included: Unit 0 (4 channels for 3 sample-and-hold circuits), Unit 1 (4 channels for 3 sample-and-hold circuits), Unit 2 (14 channels)
• Products with 48 Kbytes of RAM Two 12-bit units of sample-and-hold circuit included: Unit 0 (7 channels for 3 sample-and-hold circuits), Unit 2 (8 channels)
• Analog Comparator (CMPCa): 6 channels
• 12-bit D/A converter: 2 channels
• Usable as a reference voltage for the analog comparator
• Temperature sensor for measuring temperature within the chip
• Recommended operating temp. range (Topr)
• D-version: -40℃ to +85℃
• G-version: -40℃ to +105℃
