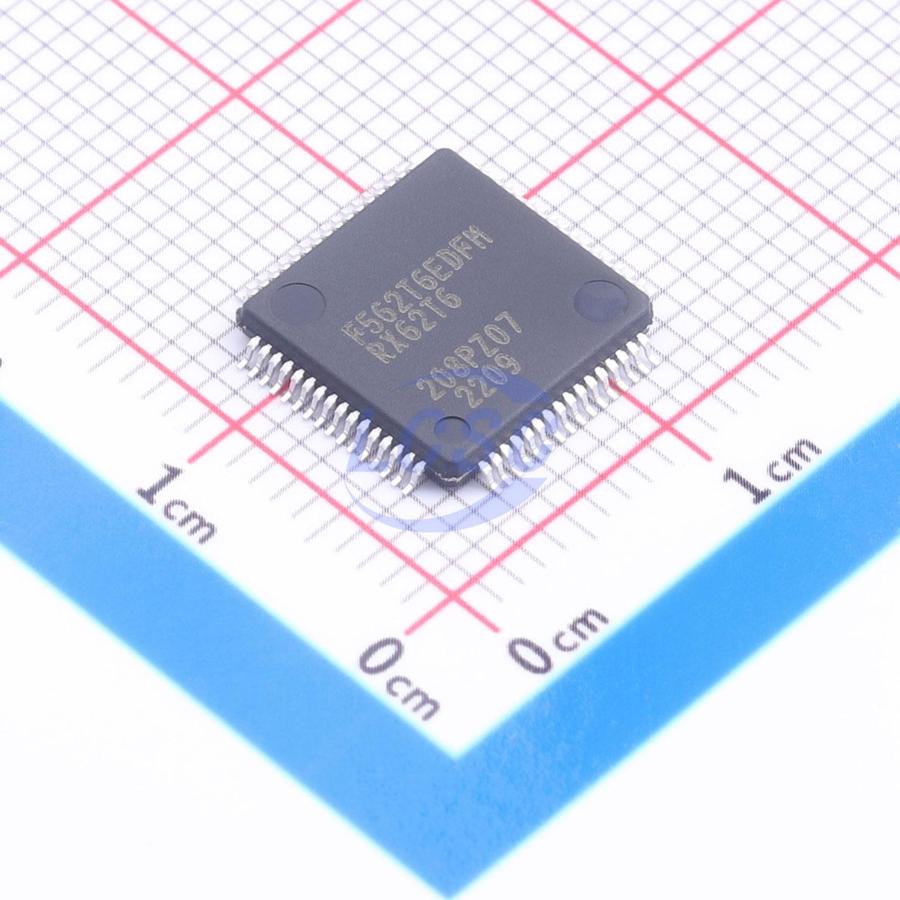

R5F562T6EDFM#13

RX62T Group, RX62G Group Renesas MCUs 100-MHz 32-bit RX MCUs, FPU, 165 DMIPS, 12-bit ADC (3 S/H circuits, double data register, amplifier, comparator): two units, 10-bit ADC one unit, the three ADC units are capable of simultaneous 7-ch. sampling, 100-MHz PWM (two three-phase complementary channels and four single-phase complementary channels or three three-phase complementary channels and one single-phase complementary channel)

Key features

• 32-bit RX CPU core
• Max. operating frequency: 100 MHz, Capable of 165 DMIPS in operation at 100 MHz
• Single precision 32-bit IEEE-754 floating point
• Accumulator handles 64-bit results (for a single instruction) from 32-×32-bit operations
• Multiplication and division unit handles 32-×32-bit operations (multiplication instructions take one CPU clock cycle)
• Fast interrupt Divider (fastest instruction execution takes two CPU clock cycles)
• Fast interrupt
• CISC Harvard architecture with 5-stage pipeline
• Variable-length instructions: Ultra-compact code
• Supports the memory protection unit (MPU)
• Background JTAG debugging plus high-speed tracing
• Operating voltage
• Single 3.3- or 5-V supply; 5-V analog supply is possible with 3.3-V products
• Low-power design and architecture
• Four low-power modes
• On-chip main flash memory, no wait states
• 100-MHz operation, 10-ns read cycle
• No wait states for reading at full CPU speed
• 64-Kbyte/128-Kbyte/256-Kbyte capacities
• For instructions and operands, User code programmable via the SCI or JTAG
• On-chip data flash memory
• Max. 32 Kbytes, reprogrammable up to 30,000 times
• Erasing and programming impose no load on the CPU
• On-chip SRAM, no wait states
• 8-Kbyte/16-Kbyte SRAM, For instructions and operands
• DMA DTC: The single unit is capable of transfer on multiple channels
• Reset and supply management
• Power-on reset (POR)
• Low voltage detection (LVD) with voltage settings
• Clock functions
• External crystal oscillator or internal PLL for operation at 8 to 12.5 MHz
• Internal 125-kHz LOCO for the IWDT
• Detection of main oscillator stoppage (for IEC 60730 compliance)
• Independent watchdog timer (for IEC60730 compliance)
• 125-kHz LOCO clock operation
• Software is incapable of stopping the robust WDT
• Up to 7 communications interfaces
• 1: CAN (compliant with ISO11898-1), incorporating 32 mailboxes
• 3: SCIs, with asynchronous mode (incorporating noise cancellation), clock-synchronous mode, and smart-card interface mode
• 1: I2C bus interface, capable of SMBus operation
• 1: RSPI
• 1: LIN
• Up to 16 16-bit timers
• 8: 16-bit MTU3: 100-MHz operation, input capture, output compare, two three-phase complementary PWM output channels, complementary PWM imposing no load on the CPU, phase-counting mode
• 4: 16-bit GPT: 100-MHz operation, input capture, output compare, four complementary single-phase PWM output channels, or one three-phase complementary PWM output channel and one single-phase complementary PWM output channel, complementary PWM imposing no load on the CPU, operation linked with comparator (for counting and control of PWM-signal negation), detection of abnormal oscillation frequencies (for IEC 60730 compliance)
• 4: 16-bit CMT
• Generation of delays in PWM waveforms (only for the RX62G Group)
• The timing with which signals on the 16-bit GPT PWM output pin rise and fall can be controlled with an accuracy of up to 312 ps (in operation at 100 MHz)
• Three A/D converter units for 1-MHz operation, for a total of 20 channels
• Three units are capable of simultaneous sampling on seven channels
• Self diagnosis (for IEC60730 compliance)
• 8: Two 12-bit ADC units: three sample-and-hold circuits, double data registers, amplifier, comparator
• 12: Single 10-bit ADC unit
• CRC (cyclic redundancy check) calculation unit
• Monitoring of data being transferred (for IEC 60730 compliance)
• Monitoring of data in memory (for IEC 60730 compliance)
• Up to 61 input–output ports and up to 21 input-only ports
• PORT registers: Monitoring of output ports (for IEC 60730 compliance)
• Operating temp. range
• -40℃ to +85℃
• -40℃ to +105℃
