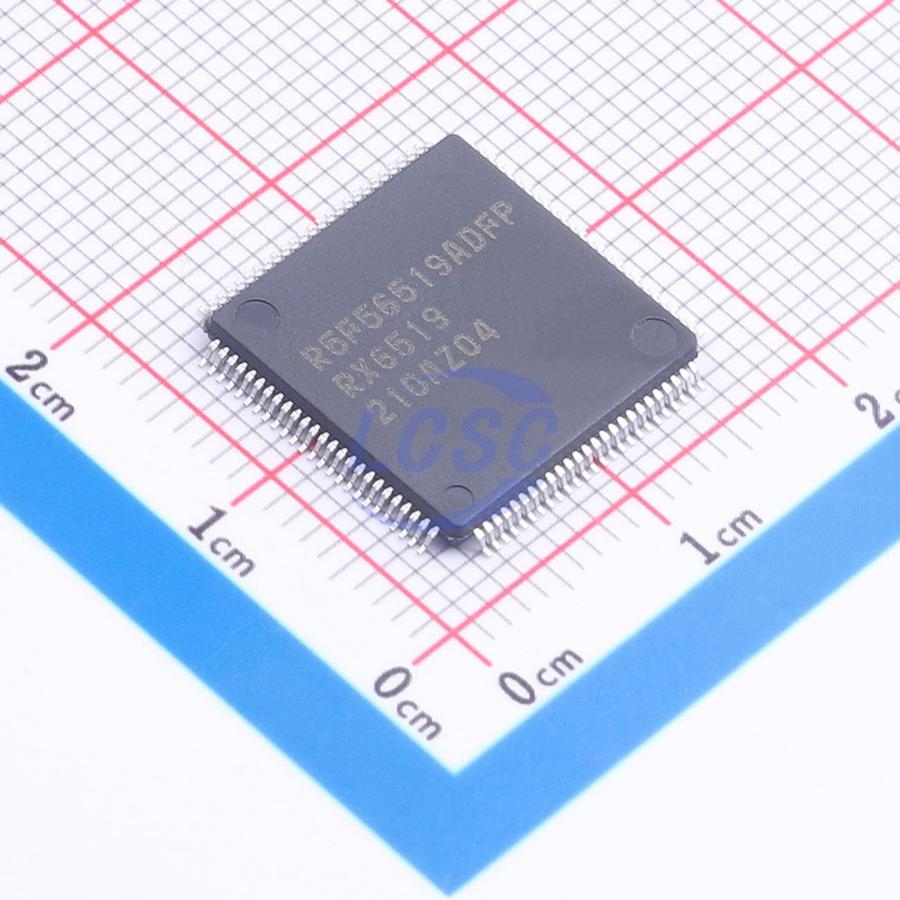

R5F56519ADFP#10

Key features

• 32-bit RXv2 CPU core
• Max. operating frequency: 120 MHz
• Capable of 240 DMIPS in operation at 120 MHz
• Single precision 32-bit IEEE-754 floating point
• Two types of multiply-and-accumulation unit (between memories and between registers)
• 32-bit multiplier (fastest instruction execution takes one CPU clock cycle)
• Divider (fastest instruction execution takes two CPU clock cycles)
• Fast interrupt
• CISC Harvard architecture with 5-stage pipeline
• Variable-length instructions: Ultra-compact code
• Supports the memory protection unit (MPU)
• JTAG and FINE (one-line) debugging interfaces
• Low-power design and architecture
• Operation from a single 2.7- to 3.6-V supply
• Low power consumption: A product that supports all peripheral functions draws only 0.19 mA/MHz (Typ.)
• RTC is capable of operation from a dedicated power supply
• Four low-power modes
• On-chip code flash memory
• Supports versions with up to 2 Mbytes of ROM
• No wait cycles at up to 50 MHz or when the ROM cache is hit, one wait state at up to 100 MHz, two-wait state at above 100 MHz
• User code is programmable by on-board or off-board programming
• Programming/erasing as background operations (BGOs)
• A dual-bank structure allows exchanging the start-up bank
• On-chip data flash memory
• 32 Kbytes, reprogrammable up to 100,000 times
• Programming/erasing as background operations (BGOs)
• On-chip SRAM, no wait states
• 256K/640 Kbytes of SRAM (no wait states)
• 8 Kbytes of standby RAM (backup on deep software standby)
• Data transfer
• DMACAa: 8 channels
• DTCb: 1 channel
• EXDMAC: 2 channels
• DMAC for the Ethernet controller: 1 channel
• Reset and supply management
• Power-on reset (POR)
• Low voltage detection (LVD) with voltage settings
• Clock functions
• External crystal resonator or internal PLL for operation at 8 to 24 MHz
• Internal 240-kHz LOCO and HOCO selectable from 16, 18, and 20 MHz
• 120-kHz clock for the IWDTa
• Real-time clock
• Adjustment functions (30 seconds, leap year, and error)
• Real-time clock counting and binary counting modes are selectable
• Time capture function (for capturing times in response to event-signal input)
• Independent watchdog timer
• 120-kHz (1/2 LOCO frequency) clock operation
• Useful functions for IEC60730 compliance
• Oscillation-stoppage detection, frequency measurement, CRCA, IWDTa, self-diagnostic function for the A/D converter, etc.
• Register write protection function can protect values in important registers against overwriting
• Various communications interfaces
• Ethernet MAC (1 channel)
• PHY layer (1 channel) for host/function or OTG controller (1 channel) with full-speed USB 2.0 transfer
• CAN (compliant with ISO11898-1), incorporating 32 mailboxes (up to 2 channels)
• SCIg and SCIh with multiple functionalities (up to 11 channels) Choose from among asynchronous mode, clock-synchronous mode, smart-card interface mode, simplified SPI, simplified I2C, and extended serial mode
• SCIi with 16-byte transmission and reception FIFOs (up to 2 channels)
• I2C bus interface for transfer at up to 1 Mbps (up to 3 channels)
• Four-wire QSPI (1 channel) in addition to RSPIc (3 channels)
• Parallel data capture unit (PDC) for the CMOS camera interface
• Graphic-LCD controller (GLCDC)
• 2D drawing engine (DRW2D)
• SD host interface (optional: 1 channel) with a 1- or 4-bit SD bus for use with SD memory or SDIO
• SD slave interface (optional: 1 channel) with a 1- or 4-bit SD bus for use with SD host interface
• MMCIF with 1-, 4-, or 8-bit transfer bus width
• External address space
• Buses for full-speed data transfer (max. operating frequency of 60 MHz)
• 8 CS areas
• 8-, 16-, or 32-bit bus space is selectable per area
• Independent SDRAM area (128 Mbytes)
• Up to 25 extended-function timers
• 16-bit TPUa, MTU3a
• 8-bit TMRa (4 channels), 16-bit CMT (4 channels), 32-bit CMTW (2 channels)
• 12-bit A/D converter
• Two 12-bit units (8 channels for unit 0; 21 channels for unit 1)
• Self diagnosis, detection of analog input disconnection
• 12-bit D/A converter: 2 channels
• Temperature sensor for measuring temperature within the chip
• Encryption functions (optional)
• AES (key lengths: 128, 192, and 256 bits)
• Trusted Secure IP (TSIP)
• Up to 136 pins for general I/O ports
• 5-V tolerance, open drain, input pull-up, switchable driving ability
• Operating temp. range
• D-version: -40°C to +85°C
• G-version: -40°C to +105°C
