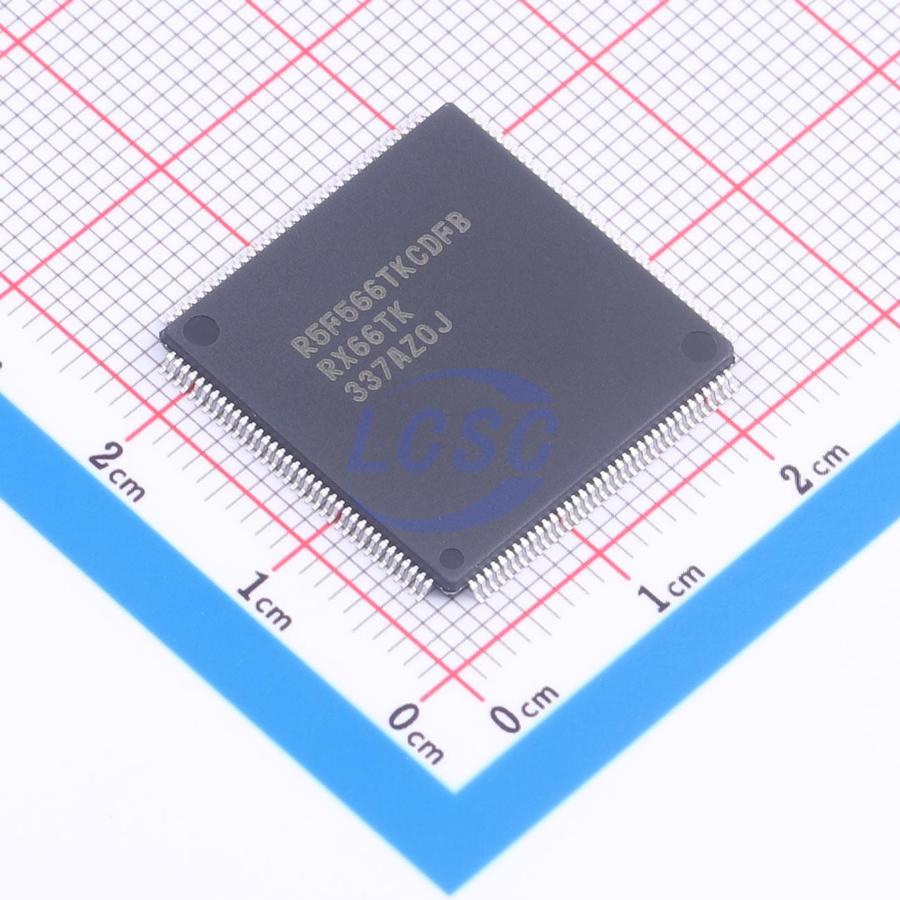

R5F566TKCDFB#10

160-MHz, 32-bit RX MCU, on-chip FPU, 928 CoreMark, Supportive of 5V power supply, up to 1-MB flash memory, up to 128-KB SRAM, 32-KB data flash memory, 16-KB SRAM with ECC, Simultaneous sampling with 3 units of 12-bit A/D converter (up to 7 channels), Single-end/pseudo differential input supportive amplifier (6 channels), Analog comparator (6 channels), 160 MHz PWM (4 channels for 3-phase complementary, 2 channels for 5-phase complementary, 10 channels for single-phase complementary), 4-channel high-resolution PWM with resolution of 195 ps at the minimum, Host/function or OTG controller with full-speed USB 2.0 transfer, CAN, Encryption functions (optional)

Key features

• 32-bit RXv3 CPU core
• Low-power design and architecture
• Operation from a single 2.7- to 5.5-V supply
• Four low-power modes
• On-chip code flash memory
• Supports versions with 1 Mbytes/512 Kbytes/256 Kbytes
• No wait cycles at up to 120 MHz or when the ROM cache is hit
• User code is programmable by on-board or off-board programming
• On-chip SRAM, no wait states
• 128K/64 Kbytes of SRAM (no wait states)
• 16 Kbytes of RAM with ECC (with wait)
• Data transfer
• DMACa: 8 channels
• DTCa: 1 channel
• ELC
• Module operation can be initiated by event signals without using interrupts
• Linked operation between modules is possible when the CPU is in sleep mode
• Reset and supply management
• Power-on reset (POR)
• Low voltage detection (LVDA) with voltage settings
• Clock functions
• Frequency of resonator for main clock oscillator: 8 to 24 MHz (this can be used as the PLL reference clock)
• High-speed on-chip oscillator: 16 MHz/18 MHz/20 MHz (this can be used as the PLL reference clock)
• Low-speed on-chip oscillator: 240 kHz
• Independent watchdog timer
• 120-kHz IWDT-dedicated on-chip oscillator clock operation
• Useful functions for IEC60730 compliance
• Oscillation-stoppage detection, functions for self-diagnosis and detection of disconnection for the A/D converter, clock frequency accuracy measurement circuit, independent watchdog timer, RAM test-assisting function by DOC, and CRCA, etc.
• Register write protection function can protect values in important registers against overwriting
• External bus
• Bus clock at 40 MHz (max)
• Four CS areas
• 8- or 16-bit bus space is selectable per area
• Various communications interfaces
• Host/function or OTG controller (1 channel) with full-speed USB 2.0 (USBb) transfer
• CAN (compliant with ISO11898-1), incorporating 32 mailboxes (1 channel)
• SCIj and SCIh with multiple functionalities (up to 6 channels) Choose from among asynchronous mode, clock-synchronous mode, smart-card interface mode, simplified SPI, simplified I²C, and extended serial mode
• SCIi with 16-byte transmission and reception FIFOs (1 channel)
• I²C bus interface (RIICa) for transfer at up to 400 kbps (fast mode), capable of SMBus operation (1 channel)
• RSPId (1 channel) for transfer at up to 30 Mbps
• Up to 31 extended-function timers
• 32-bit GPTW (10 channels): operation at 160 MHz, input capture, output compare, PWM waveforms: 10 output channels in singlephase complementary PWM mode/3 output channels in 3-phase complementary PWM mode/2 output channels in 5-phase complementary PWM mode, phase-counting mode, linkage with comparator (counting operation, PWM negate control)
• 16-bit MTU3d (9 channels): operation at 160 MHz, input capture, output compare, PWM waveforms: 2 output channels in 3-phase complementary PWM mode, phase-counting mode
• 8-bit TMR (8 channels)
• 16-bit CMT (4 channels)
• High-resolution PWM waveform generation circuit (HRPWM): 4 channels
• Controlling the timing of rising or falling of the PWM output waveform for 32-bit GPTW is realized with minimum of 195 ps resolution (in operation at 160 MHz)
• 12-bit A/D converter (S12ADH): total of 30 channels for three units
• Up to three 12-bit units of sample-and-hold circuit included Unit 0 (8 channels for 3 sample-and-hold circuits), Unit 1 (8 channels for 3 sample-and-hold circuits), Unit 2 (14 channels)
• Programmable gain amplifier with pseudo differential amplification (3 channels × 2)
• Analog Comparator (CMPC): 6 channels
• 12-bit D/A converter: 2 channels
• Usable as a reference voltage for the analog comparator
• Temperature sensor for measuring temperature within the chip
• 128- or 256-bit key length of AES for ECB, CBC, GCM, others
• True random number generator
• Unauthorized access to the encryption engine is disabled and imposture and falsification of information are prevented
• Safe management of keys
