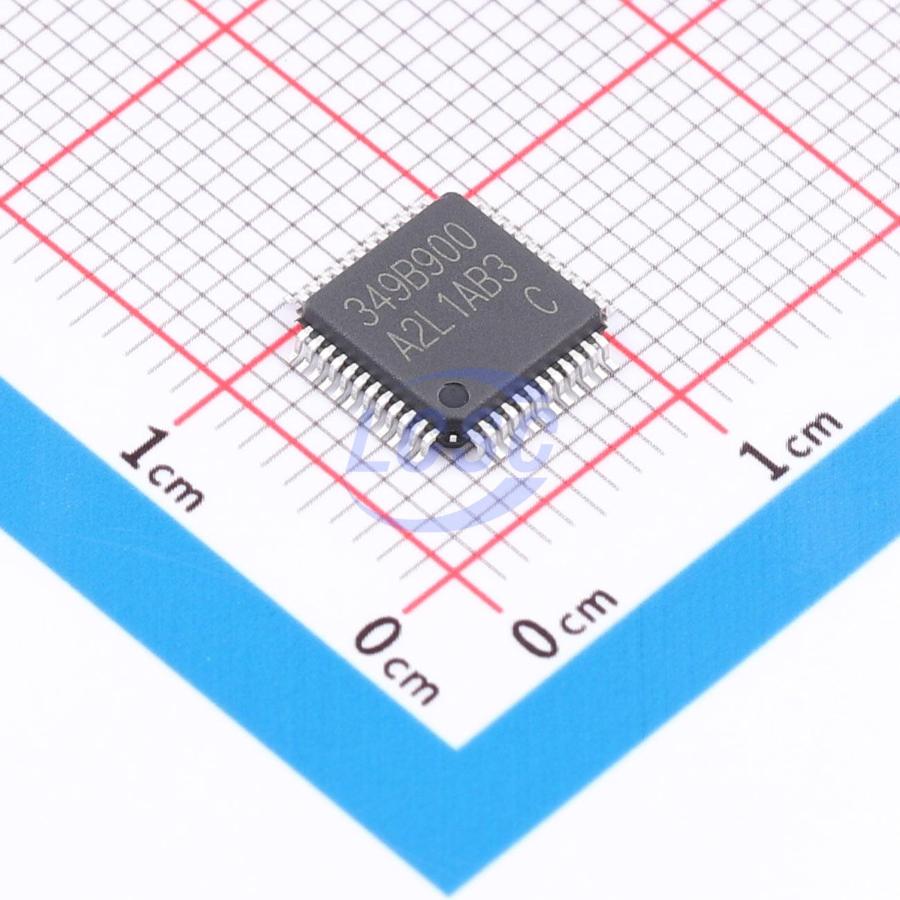

R7FA2L1AB3CFL#BA0

The MCU integrates multiple series of software- and pin-compatible Arm-based 32-bit cores that share a common set of Renesas peripherals to facilitate design scalability. The MCU in this series incorporates an energy-efficient Arm Cortex®-M23 32-bit core, that is particularly well suited for cost-sensitive and low-power applications, with the following features: Up to 256-KB code flash memory ● 32-KB SRAM ● 12-bit A/D Converter (ADC12) ● 12-bit D/A Converter (DAC12) ● Security features

Key features

• Arm Cortex-M23 Core:
• Armv8-M architecture
• Maximum operating frequency: 48 MHz
• Arm Memory Protection Unit (Arm MPU) with 8 regions
• Debug and Trace: DWT, FPB, CoreSight MTB-M23
• CoreSight Debug Port: SW-DP
• Middle-speed on-chip oscillator (MOCO) (8 MHz)
• Low-speed on-chip oscillator (LOCO) (32.768 kHz)
• Clock trim function for HOCO/MOCO/LOCO
• IWDT-dedicated on-chip oscillator (15 kHz)
• Clock out support
• Memory:
• Up to 256-KB code flash memory
• 8-KB data flash memory (100,000 program/erase (P/E) cycles)
• 32 KB SRAM
• Memory protection units
• 128-bit unique ID
• Connectivity:
• Serial Communications Interface (SCI)×5 – Asynchronous interfaces – 8-bit clock synchronous interface – Simple IIC – Simple SPI – Smart card interface
• Serial Peripheral Interface (SPI)×2
• I²C bus interface (IIC)×2
• CAN module (CAN)
• Operating Voltage:
• VCC: 1.6 to 5.5 V
• Operating Temperature and Packages:
• Ta = -40℃ to +85℃
• 100-pin LQFP (14 mm×14 mm, 0.5 mm pitch)
• 80-pin LQFP (12 mm×12 mm, 0.5 mm pitch)
• 64-pin LQFP (10 mm×10 mm, 0.5 mm pitch)
• 48-pin LQFP (7 mm×7 mm, 0.50 mm pitch)
• 48-pin HWQFN (7 mm×7 mm, 0.50 mm pitch)
• Analog:
• 12-bit A/D Converter (ADC12)
• 12-bit D/A Converter (DAC12)
• Low-Power Analog Comparator (ACMPLP) × 2
• Temperature Sensor (TSN)
• Timers:
• General PWM Timer 32-bit (GPT32)×4
• General PWM Timer 16-bit (GPTl6)×6
• Low Power Asynchronous General Purpose Timer (AGT)×2
• Watchdog Timer (WDT)
• Safety:
• ECC in SRAM
• SRAM parity error check
• Flash area protection
• ADC self-diagnosis function
• Clock Frequency Accuracy Measurement Circuit (CAC)
• Cyclic Redundancy Check (CRC) calculator
• Data Operation Circuit (DOC)
• Port Output Enable for GPT (POEG)
• Independent Watchdog Timer (IWDT)
• GPIO readback level detection
• Register write protection
• Main oscillator stop detection
• Illegal memory access
• Security and Encryption:
• AES128/256
• True Random Number Generator (TRNG)
• System and Power Management:
• Low power modes
• Switching regulator
• Realtime Clock (RTC)
• Event Link Controller (ELC)
• Data Transfer Controller (DTC)
• Key Interrupt Function (KINT)
• Power-on reset
• Low Voltage Detection (LVD) with voltage settings
• Human Machine Interface (HMI):
• Capacitive Sensing Unit (CTSU2)
• Multiple Clock Sources:
• Main clock oscillator (MOSC) （1 to 20 MHz）
• Sub-clock oscillator (SOSC) (32.768 kHz)
• High-speed on-chip oscillator (HOCO) (24/32/48/64 MHz)
