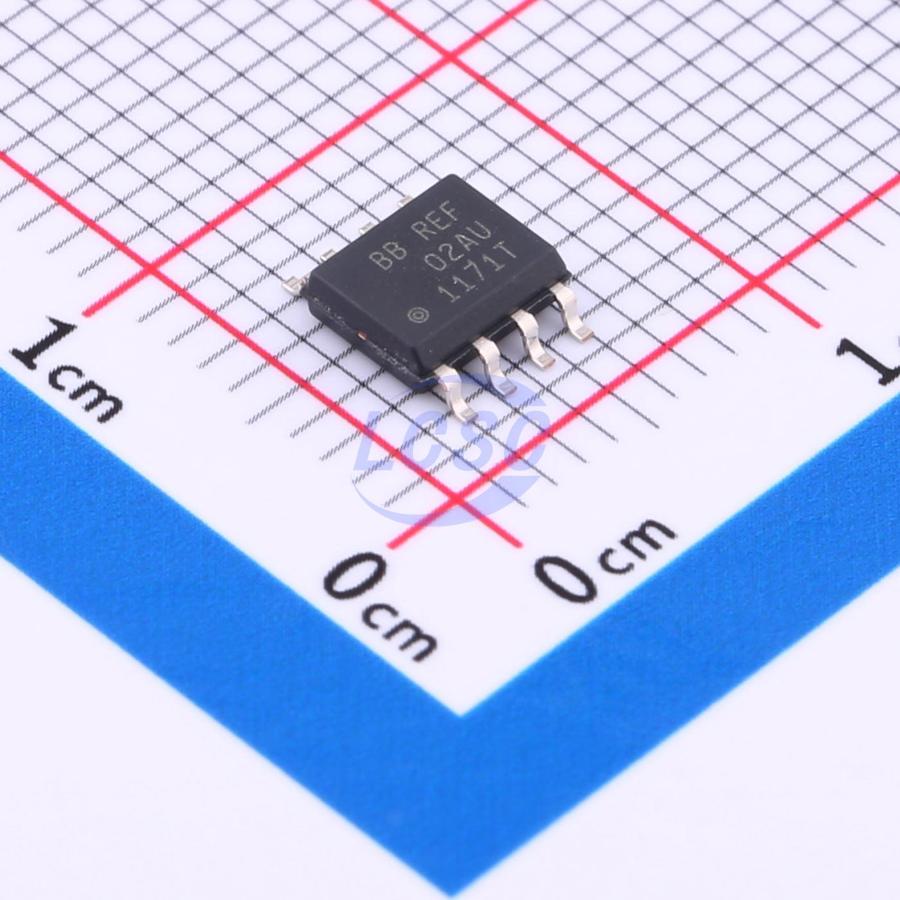

REF02AU/2K5
5V ±0.2% 8V~40V 21mA Fixed SOIC-8 Voltage Reference RoHS
SOIC-8ROHS3 CompliantActive
+5V Precision Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF02AU/2K5
- Store part #
- C55857
- Package / case
- SOIC-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,379 in stock
#C55857
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹499.75 | ₹499.75 |
| 10+ | ₹434.83 | ₹4,348.30 |
| 30+ | ₹394.24 | ₹11,827.20 |
| 100+ | ₹352.55 | ₹35,255.00 |
| 500+ | ₹333.89 | ₹1,66,945.00 |
| 1,000+ | ₹325.64 | ₹3,25,640.00 |
1 × ₹499.75
₹499.75
excl. GST
₹589.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REF02AU/2K5
₹499.75 for 1 + GST
Specifications
- Output Voltage
- 5V
- Quiescent Current
- 1.4mA
- Tolerance
- ±0.2%
- Voltage - Supply
- 8V~40V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 10uVp-p
- Output Current
- 21mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
A precision 5V voltage reference. The drift is laser trimmed to 10ppm/°C max over the extended industrial temperature range. It provides a stable 5V output that can be externally adjusted over a ±6% range with minimal effect on temperature stability. It operates from a single supply with an input range of 8V to 40V with a very low current drain of 1mA, and has excellent temperature stability due to an improved design. Excellent line and load regulation, low noise, low power, and low cost make it the best choice whenever a 5V voltage reference is required. Available package options are DIP - 8 and SO - 8. It is an ideal choice for portable instrumentation, temperature transducers, Analog - to - Digital (A/D) and Digital - to - Analog (D/A) converters, and digital voltmeters.
Applications
- PRECISION REGULATORS
- CONSTANT CURRENT SOURCE/SINK
- DIGITAL VOLTMETERS
- V/F CONVERTERS
- A/D AND D/A CONVERTERS
- PRECISION CALIBRATION STANDARD
- TEST EQUIPMENT
Key features
- OUTPUT VOLTAGE: +5V ±0.2% max
- EXCELLENT TEMPERATURE STABILITY: 10ppm/°C max (-40°C to +85°C)
- LOW NOISE: 10μVPP max (0.1Hz to 10Hz)
- EXCELLENT LINE REGULATION: 0.01%/V max
- EXCELLENT LOAD REGULATION: 0.008%/mA max
- LOW SUPPLY CURRENT: 1.4mA max
- SHORT - CIRCUIT PROTECTED
- WIDE SUPPLY RANGE: 8V to 40V
- INDUSTRIAL TEMPERATURE RANGE: -40°C to +85°C
- PACKAGE OPTIONS: DIP - 8, SO - 8
