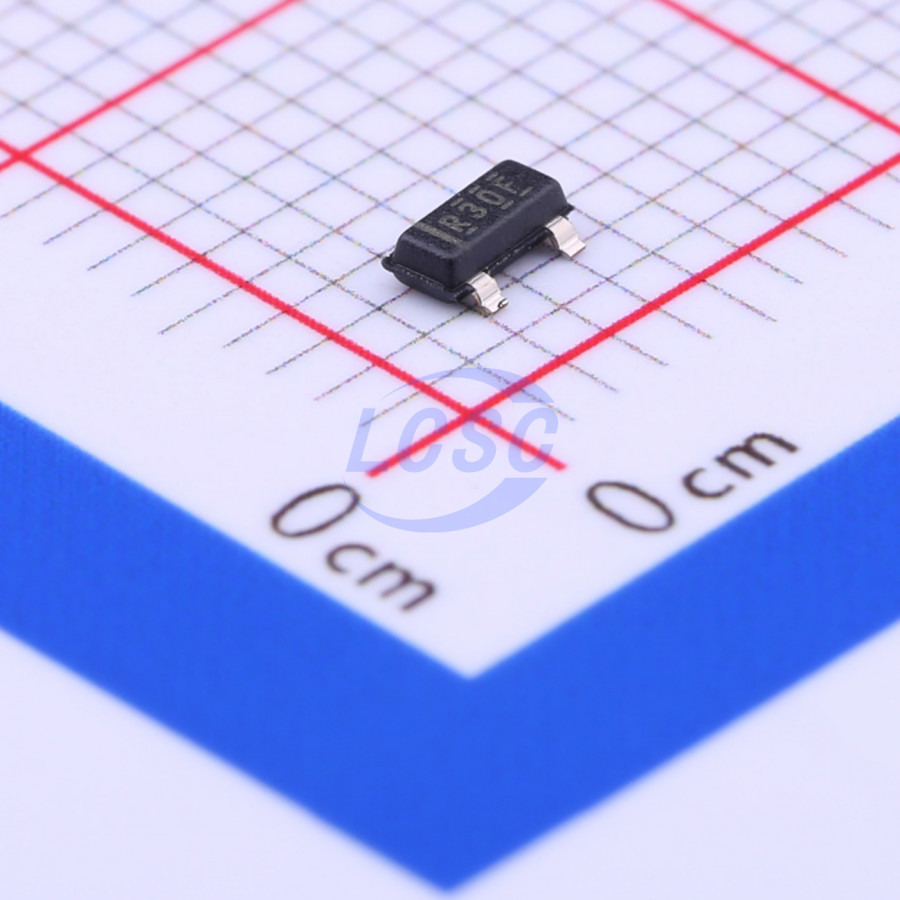

REF3030AIDBZR
3V ±0.2% 3.05V~5.5V 25mA Fixed SOT-23 Voltage Reference RoHS
PopularSOT-23ROHS3 CompliantActive
CMOS Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3030AIDBZR
- Store part #
- C38423
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,954 in stock
#C38423
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.47 | ₹107.47 |
| 10+ | ₹88.97 | ₹889.70 |
| 30+ | ₹76.14 | ₹2,284.20 |
| 100+ | ₹65.48 | ₹6,548.00 |
| 500+ | ₹62.00 | ₹31,000.00 |
| 1,000+ | ₹60.04 | ₹60,040.00 |
1 × ₹107.47
₹107.47
excl. GST
₹126.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3030AIDBZR
₹107.47 for 1 + GST
Specifications
- Output Voltage
- 3V
- Quiescent Current
- 50uA
- Tolerance
- ±0.2%
- Voltage - Supply
- 3.05V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 33uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 94uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3. The REF30xx small size and low power consumption (50µA max) make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor. Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, -40°C to +125°C.
Applications
- PORTABLE, BATTERY-POWERED EQUIPMENT
- DATA ACQUISITION SYSTEMS
- MEDICAL EQUIPMENT
- HAND-HELD TEST EQUIPMENT
Key features
- MicroSIZE PACKAGE: SOT23-3
- LOW DROPOUT: 1mV
- HIGH OUTPUT CURRENT: 25mA
- HIGH ACCURACY: 0.2%
- LOW l₀: 50µA max
- EXCELLENT SPECIFIED DRIFT PERFORMANCE: 50ppm/°C (max) from 0°C to +70°C; 75ppm/°C (max) from -40°C to ±125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | REF3030AIDBZT#C2156522TI · SOT-23-3 | TI | SOT-23-3 | 4,056 | ₹167.19 · 4,056 in stock | View |
 | GM7200AUJZ-3.0-R7#C55595898GONGMOSEMI · SOT-23 | GONGMOSEMI | SOT-23 | On request | ₹84.37 · 0 in stock | View |
 | REF3130AIDBZT#C134023TI · SOT-23 | TI | SOT-23 | On request | ₹387.67 · 0 in stock | View |
 | REF3130AQDBZRQ1#C2156928TI · SOT-23-3 | TI | SOT-23-3 | 236 | ₹501.14 · 236 in stock | View |
 | REF3130AIDBZR#C486060TI · SOT-23-3 | TI | SOT-23-3 | 13,731 | ₹257.48 · 13,731 in stock | View |
