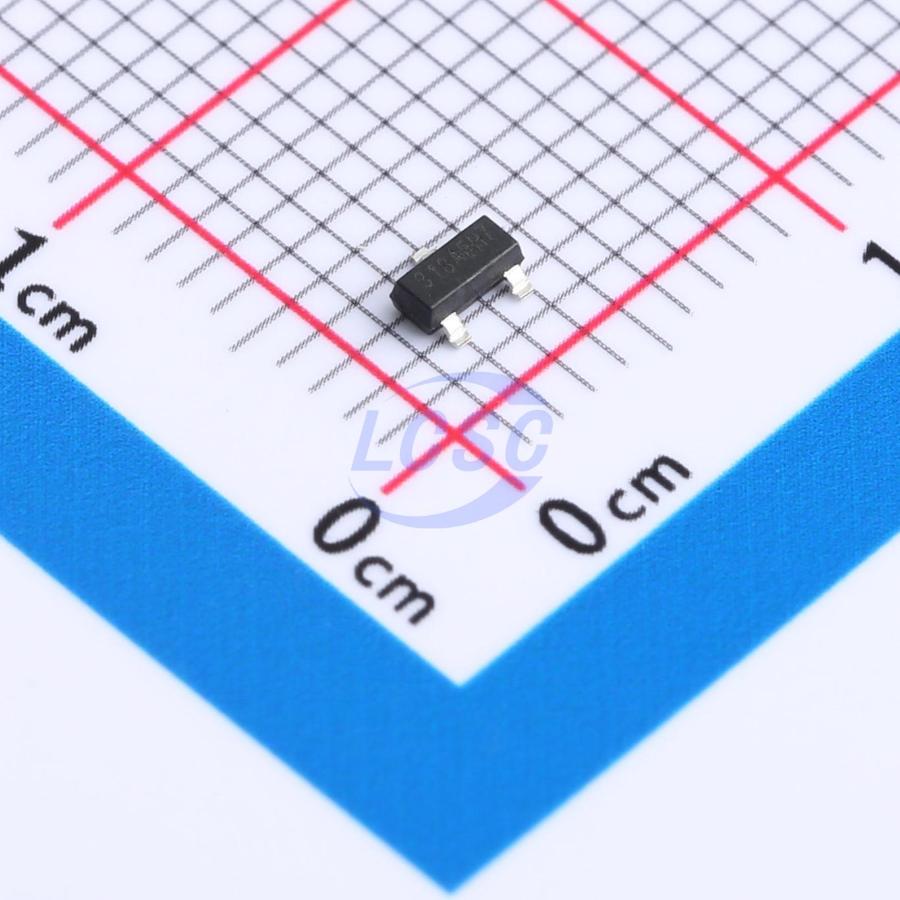

REF318SOT233
Voltage Reference IC 1.8V ±0.1% 25mA SOT-23-3
SOT-23-3RoHSActive
Low-power, precision, low-dropout voltage reference
- Manufacturer
- analogysemi
- Manufacturer part #
- REF318SOT233
- Store part #
- C19078489
- Package / case
- SOT-23-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,909 in stock
#C19078489
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.07 | ₹139.07 |
| 10+ | ₹112.35 | ₹1,123.50 |
| 30+ | ₹98.88 | ₹2,966.40 |
| 100+ | ₹85.62 | ₹8,562.00 |
| 500+ | ₹77.58 | ₹38,790.00 |
| 1,000+ | ₹73.45 | ₹73,450.00 |
1 × ₹139.07
₹139.07
excl. GST
₹164.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF318SOT233
₹139.07 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Quiescent Current
- 60uA
- Tolerance
- ±0.1%
- Voltage - Supply
- 1.82V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 20uVp-p
- Output Current
- 25mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
- Noise - 10Hz to 10kHz
- 35uVrms
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.064 g
Overview
REF3xx is a low-power, precision, low-dropout voltage reference family in a SOT23-3 package. The small size and low power consumption make REF3xx ideal for a wide variety of portable and battery-powered applications. Under normal load conditions, REF3xx can operate with a supply voltage as low as 2mV above the specified output voltage, except for REF312, which has a minimum supply voltage of 1.8V. All versions are specified over the wide temperature range of −40°C to 125°C.
Applications
- Portable devices
- Tablets and smartphones
- Hard disk drives
- Sensor modules
- Data acquisition systems
- Medical equipment
- Test equipment
Key features
- Compact package: SOT23-3
- AEC-Q100 (REF3xxQ only)
- Low supply current: 60μA (typical)
- Ultra-low dropout: 2mV (typical)
- High output current: ±25mA
- Low temperature drift: 20ppm/°C (maximum)
- High initial accuracy: ±0.1% (maximum)
- 0.1Hz to 10Hz noise: 20μVₚ₋ₚ (REF318)
- Voltage options: 1.25V, 1.8V, 2.048V, 2.5V, 3V, 3.3V, 4.096V, 4.5V, 5V
