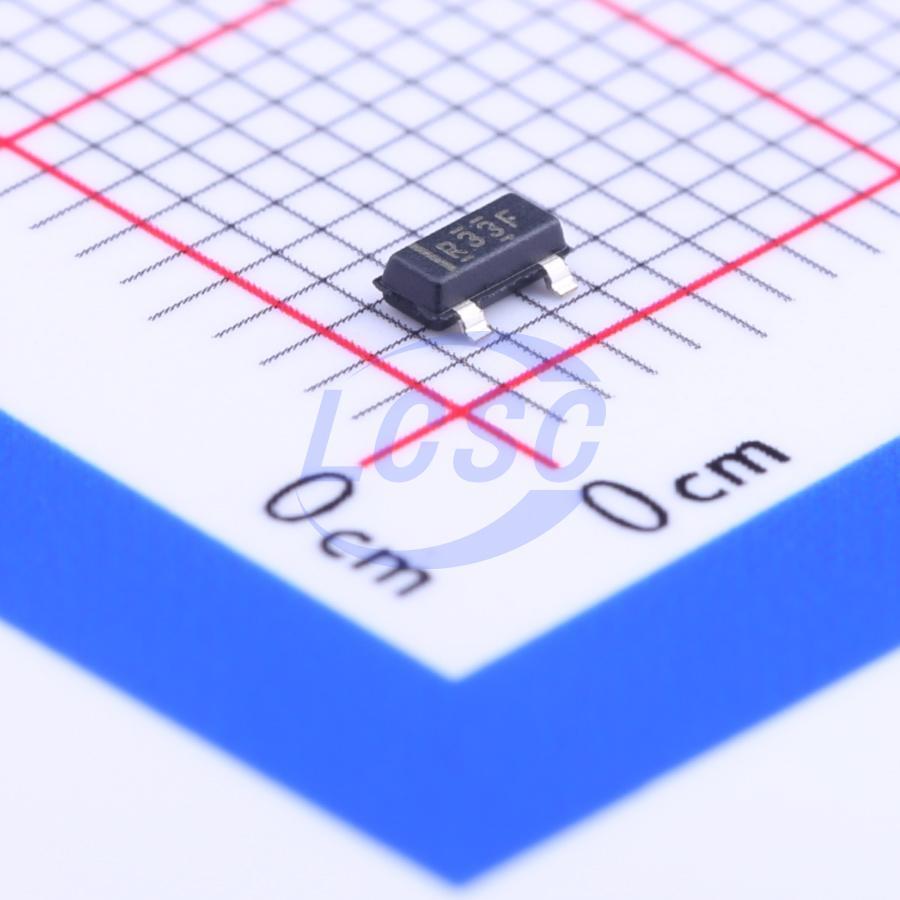

REF3333AIDBZR
3.3V ±0.15% 3.5V~5.5V 5mA Fixed SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
3.9-uA, 30-ppm/°C Drift Voltage Reference
- Manufacturer
- TI
- Manufacturer part #
- REF3333AIDBZR
- Store part #
- C130016
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,029 in stock
#C130016
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.73 | ₹134.73 |
| 10+ | ₹108.18 | ₹1,081.80 |
| 30+ | ₹94.90 | ₹2,847.00 |
| 100+ | ₹81.84 | ₹8,184.00 |
| 500+ | ₹69.87 | ₹34,935.00 |
| 1,000+ | ₹65.74 | ₹65,740.00 |
1 × ₹134.73
₹134.73
excl. GST
₹158.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
REF3333AIDBZR
₹134.73 for 1 + GST
Specifications
- Quiescent Current
- 8.5uA
- Output Voltage
- 3.3V
- Tolerance
- ±0.15%
- Voltage - Supply
- 3.5V~5.5V
- Reference Type
- Series
- Noise - 1/10Hz to 10Hz
- 92uVp-p
- Output Current
- 5mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The REF33xx is a low-power, precision, low-dropout voltage reference family available in tiny SC70-3 and SOT-23-3 packages, and in a 1.5-mm×1.5-mm UQFN-8 package. Small size and low power consumption ('5-μA max) make the REF33xx ideal for a wide variety of portable and battery-powered applications. The REF33xx can be operated at a supply voltage 180 mV above the specified output voltage under normal load conditions, with the exception of the REF3312, which has a minimum supply voltage of 1.7 V. All models are specified for the wide temperature range of -40°C to +125°C.
Applications
- Portable Equipment
- Tablets and Smartphones
- Hard Disk Drives
- Sensor Modules
- Data Acquisition Systems
- Medical Equipment
- Test Equipment
Key features
- Microsize Packages: SC70-3, SOT-23-3, UQFN-8
- Low Supply Current: 3.9 μA (typ)
- Extremely Low Dropout Voltage: 110 mV (typ)
- High Output Current: ±5 mA
- Low Temperature Drift: 30 ppm/°C (max)
- High Initial Accuracy: ±0.15% (max)
- 0.1 Hz to 10-Hz Noise: 35 μVPP (REF3312)
- Voltage Options: 1.2 V, 1.8 V, 2.5 V, 3 V, 3.3 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| REF3333AIDBZT#C2156614TI · SOT-23-3 | TI | SOT-23-3 | 265 | ₹168.95 · 265 in stock | View | |
 | REF3033AIM3/TR#C50314591HGSEMI · SOT-23-3 | HGSEMI | SOT-23-3 | 2,597 | ₹54.97 · 2,597 in stock | View |
 | LTR3333T20YT3#C49253660Guestgood · SOT-23-3 | Guestgood | SOT-23-3 | 380 | ₹98.97 · 380 in stock | View |
 | REF3330AIDBZR#C140329TI · SOT-23 | TI | SOT-23 | 2,491 | ₹217.96 · 2,491 in stock | View |
 | REF3330AIDBZT#C2156496TI · SOT-23-3 | TI | SOT-23-3 | 15 | ₹392.19 · 15 in stock | View |
