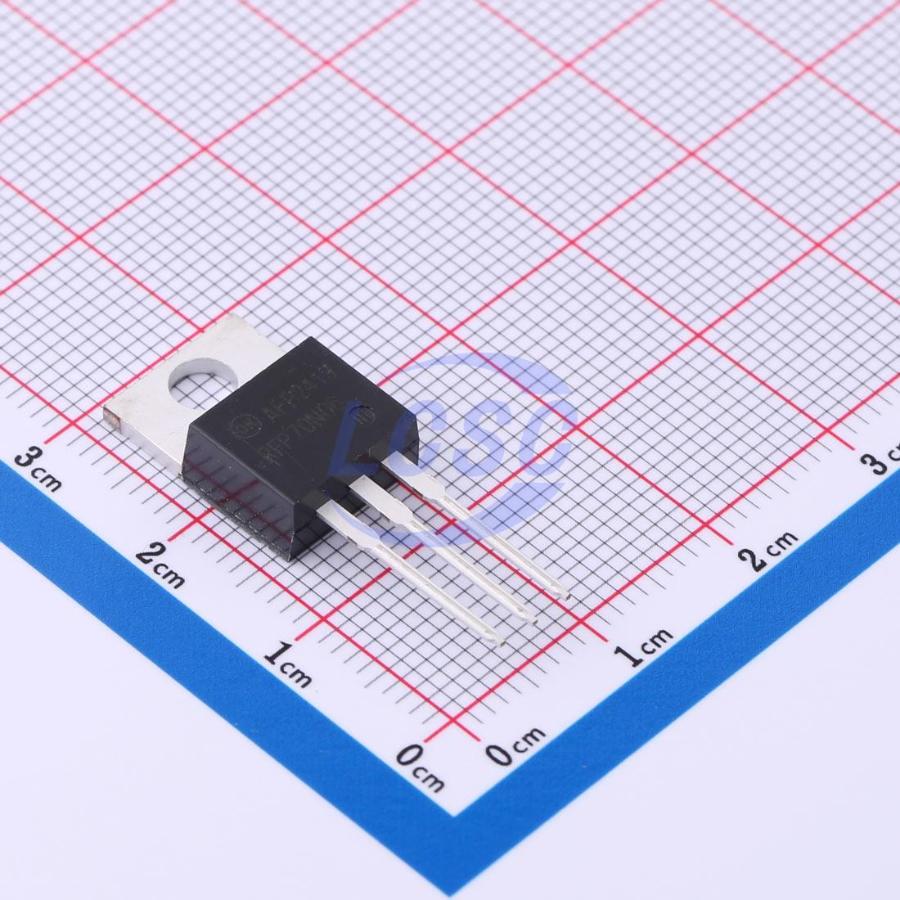

RFP70N06
N-Channel 60V 70A 150W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 60V 70A TO-220AB
- Manufacturer
- onsemi
- Manufacturer part #
- RFP70N06
- Store part #
- C898823
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
41 in stock
#C898823
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹235.34 | ₹235.34 |
| 10+ | ₹229.91 | ₹2,299.10 |
| 50+ | ₹226.21 | ₹11,310.50 |
| 100+ | ₹222.74 | ₹22,274.00 |
1 × ₹235.34
₹235.34
excl. GST
₹277.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RFP70N06
₹235.34 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 792pF
- Ciss-Input Capacitance
- 2.25nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 70A
- Reverse Transfer Capacitance (Crss)
- 206pF
- RDS(on)
- 14mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.5 g
Overview
These are N-Channel power MOSFETs manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI circuits, gives optimum utilization of silicon, resulting in outstanding performance. They were designed for use in applications such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits.
Applications
- switching regulators
- switching converters
- motor drivers
- relay drivers
Key features
- 70A, 60V
- rDS(on)=0.014Ω
- Temperature Compensated PSPICE Model
- Peak Current vs Pulse Width Curve UIS Rating Curve (Single Pulse)
- 175°C Operating Temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMP70N06#C20416964Cmos · TO-220 | Cmos | TO-220 | 100 | ₹63.66 · 100 in stock | View |
 | ME3205T#C2693567MATSUKI · TO-220 | MATSUKI | TO-220 | 20 | ₹56.07 · 20 in stock | View |
 | LNC10R040W3#C483753LONTEN · TO-220FB-3 | LONTEN | TO-220FB-3 | 1 | ₹121.36 · 1 in stock | View |
 | IRF1010EPBF#C2557Infineon · TO-220AB | Infineon | TO-220AB | 6,337 | ₹123.85 · 6,337 in stock | View |
 | HUF75645P3#C512967onsemi · TO-220AB | onsemi | TO-220AB | 200 | ₹443.80 · 200 in stock | View |
