HXY MOSFETDatasheet (PDF)

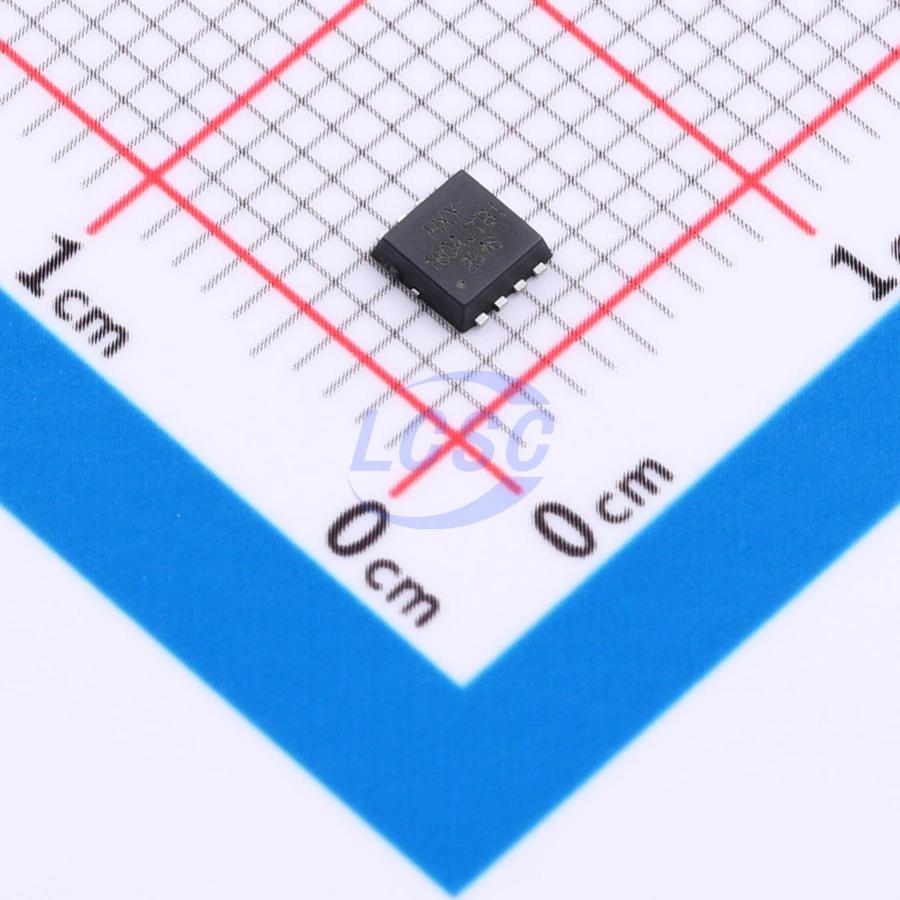

RQ3E180AJTB1-HXY
46W 30V 90A 3.5mΩ@10V 1 N-channel N-Channel DFN-8L(3x3) Single FETs, MOSFETs
DFN-8L(3x3)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RQ3E180AJTB1-HXY
- Store part #
- C53263016
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53263016
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.54 | ₹77.54 |
| 10+ | ₹63.80 | ₹638.00 |
| 30+ | ₹56.70 | ₹1,701.00 |
| 100+ | ₹49.84 | ₹4,984.00 |
| 500+ | ₹45.75 | ₹22,875.00 |
| 1,000+ | ₹43.61 | ₹43,610.00 |
1 × ₹77.54
₹77.54
excl. GST
₹91.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RQ3E180AJTB1-HXY
₹77.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 277pF
- Ciss-Input Capacitance
- 2.088nF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 209pF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.092 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSZ0506NSATMA1-HXY#C53262972HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 74 | ₹73.45 · 74 in stock | View |
 | DMN3009SFG-7-HXY#C53262983HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 488 | ₹72.86 · 488 in stock | View |
 | DMN3009LFV-7-HXY#C53262993HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 40 | ₹40.25 · 40 in stock | View |
 | RQ3E150BNTB-HXY#C53262999HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 40 | ₹65.29 · 40 in stock | View |
 | RQ3E180GNTB-HXY#C53263006HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 35 | ₹42.96 · 35 in stock | View |
