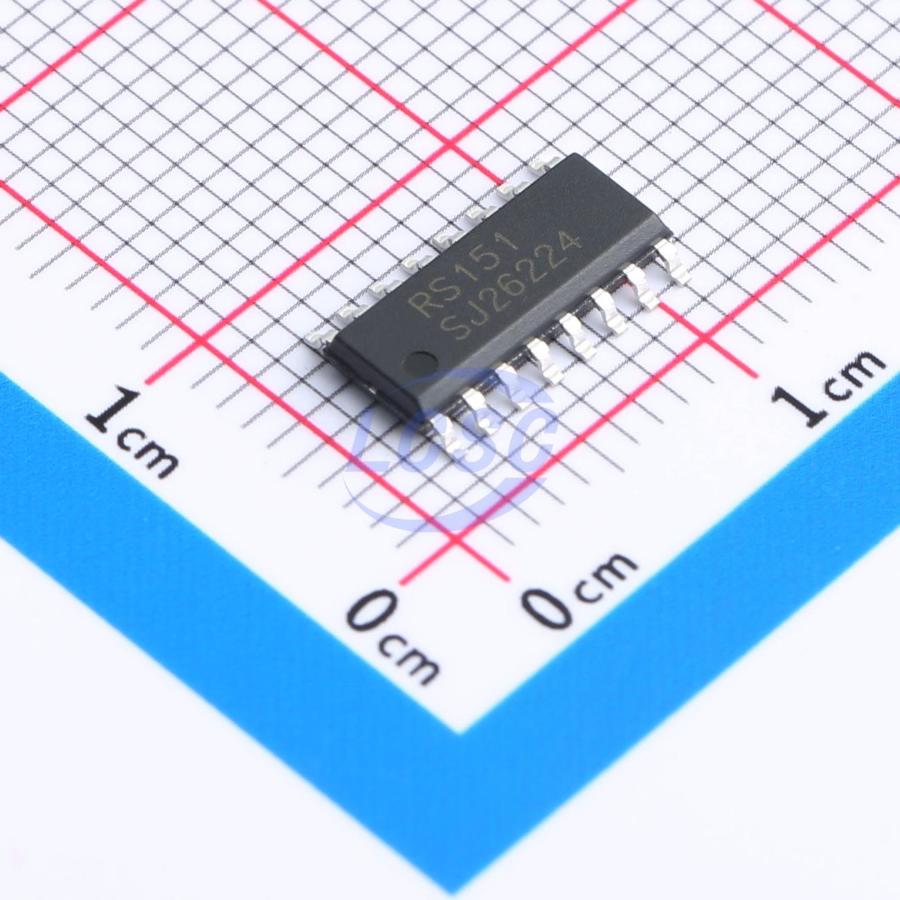

RUNIC

RS151XS16

2 1.65V~5.5V SOIC-16 Analog Switches, Multiplexers, Demultiplexers

SOIC-16RoHSActive

8-Line To 1-Line Data Selectors/Multiplexers

Manufacturer: RUNIC
Manufacturer part #: RS151XS16
Store part #: C20611905
Package / case: SOIC-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,900 in stock

#C20611905

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹32.32	₹161.60
50+	₹25.39	₹1,269.50
150+	₹22.41	₹3,361.50
500+	₹18.69	₹9,345.00
2,500+	₹17.04	₹42,600.00
4,000+	₹16.05	₹64,200.00

Quantity (min 5, multiples of 5)

5 × ₹32.32

₹161.60

excl. GST

₹190.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS151XS16

₹161.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Number of Channels: 2
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 6ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

Operating Voltage Range: 1.65V to 5.5V Low power consumption: 8μA MAX ICC Inputs Accept Voltage to 5.5V Output Drive: ±6mA at VCC = 4.5V Operating Temperature Range: -40°C to +125°C PACKAGES: SOIC-16(SOP16) and TSSOP-16 The RS151, a data selector/multiplexer provides full binary decoding to select one of eight data sources. The RS151 is consist of one enable input G̅, three binary address inputs (A0, A1 and A2), eight data inputs (D0 to D7) and two outputs (Y and W). The strobe (G̅) input must be at a low logic level to enable the inputs. A high level at the strobe terminal forces the standard output (Y) low and the inverted output (W) high. The RS151 is available in Green SOIC-16(SOP16) and TSSOP-16 packages. It operates over an ambient temperature range of -40°C to +125°C.
