RUNICDatasheet (PDF)

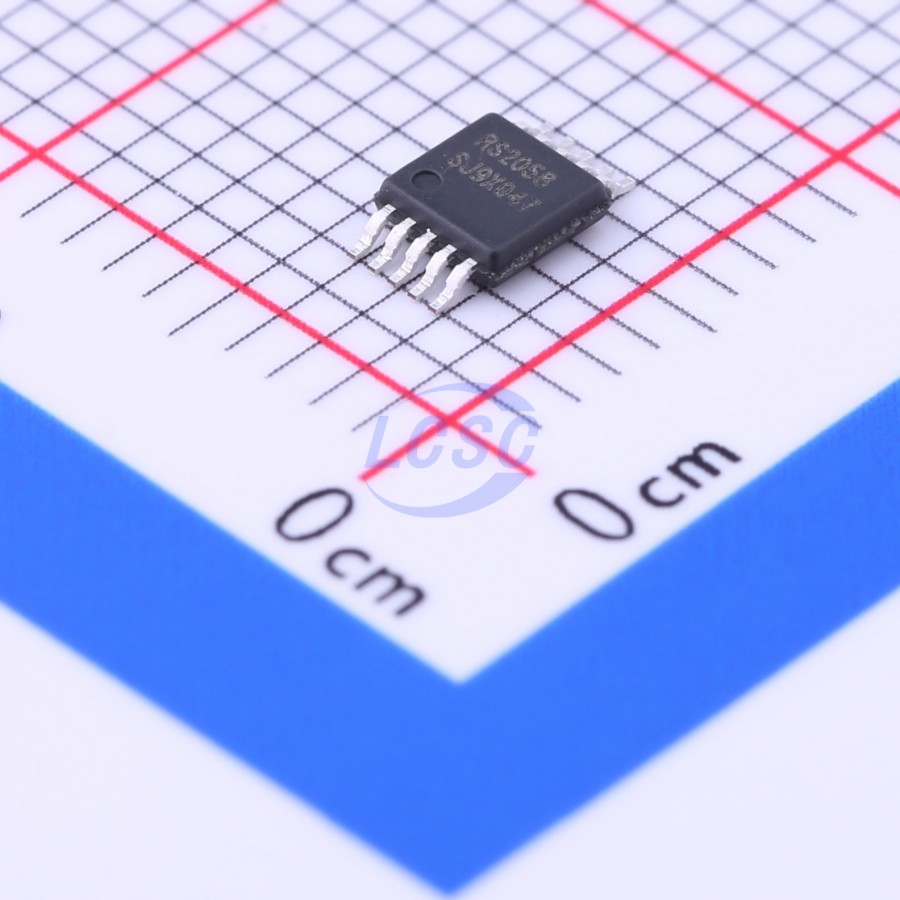

RS2058XN
4.5Ω 2 1.8V~5.5V MSOP-10 Analog Switches, Multiplexers, Demultiplexers RoHS
MSOP-10ROHS3 CompliantActive
Low Voltage Dual SPDT Analog Switch
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2058XN
- Store part #
- C255475
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,970 in stock
#C255475
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.83 | ₹194.15 |
| 50+ | ₹29.00 | ₹1,450.00 |
| 150+ | ₹24.78 | ₹3,717.00 |
| 500+ | ₹19.51 | ₹9,755.00 |
5 × ₹38.83
₹194.15
excl. GST
₹229.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS2058XN
₹194.15 for 5 + GST
Specifications
- Features
- Glitch-free switching
- Operating Temperature
- -40℃~+125℃
- Ron
- 4.5Ω
- Number of Channels
- 2
- Voltage - Supply
- 1.8V~5.5V
- Con
- 15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
The RS2058 is a dual, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The RS2058 device can handle both analog and digital signals. It features high-bandwidth(300MHz) and low on-resistance (4.5Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Applications
- Wearable Devices
- Battery-Operated Equipment
- Signal Gating, Chopping, Modulation or Demodulation (Modem)
- Portable Computing
- Cell Phones
Key features
- High Bandwidth: 300MHz High Speed, Typically 30ns
- Supply Range: +1.8V to +5.5V
- Low ON-State Resistance, 4.5Ω(TYP)
- Break-Before-Make Switching
- Rail-to-Rail Operation
- TTL/CMOS Compatible
- Extended Industrial Temperature Range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS2102XN#C255473RUNIC · MSOP-10 | RUNIC | MSOP-10 | 965 | ₹40.74 · 965 in stock | View |
 | RS2105XN#C237025RUNIC · MSOP-10 | RUNIC | MSOP-10 | 10,705 | ₹35.46 · 10,705 in stock | View |
 | RS2227XN#C255478RUNIC · MSOP-10 | RUNIC | MSOP-10 | 9,315 | ₹41.54 · 9,315 in stock | View |
 | RS2228XN#C783420RUNIC · MSOP-10 | RUNIC | MSOP-10 | 3,880 | ₹43.29 · 3,880 in stock | View |
