RUNICDatasheet (PDF)
RS2252XS16
48Ω 2 2.5V~5.5V SOIC-16 Analog Switches, Multiplexers, Demultiplexers
SOIC-16RoHSActive

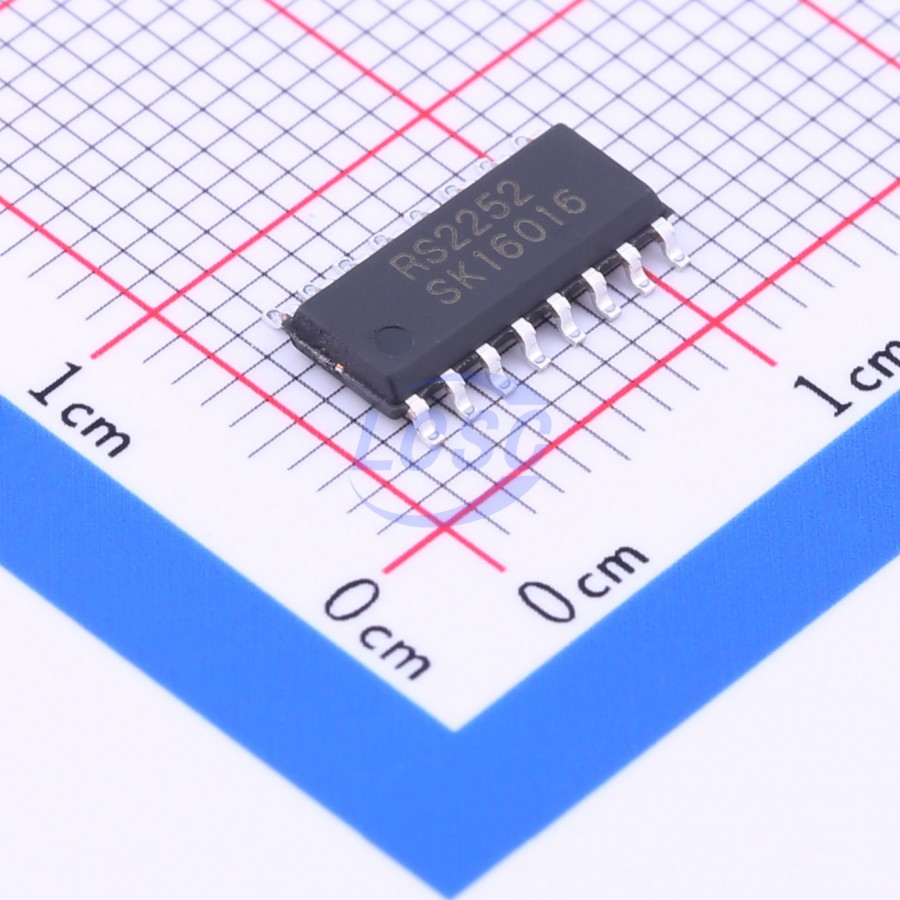

CMOS Two 4-Channel Analog Multiplexer/Demultiplexer
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2252XS16
- Store part #
- C255481
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,680 in stock
#C255481
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.20 | ₹151.00 |
| 50+ | ₹22.56 | ₹1,128.00 |
| 150+ | ₹19.28 | ₹2,892.00 |
| 500+ | ₹15.19 | ₹7,595.00 |
5 × ₹30.20
₹151.00
excl. GST
₹178.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS2252XS16
₹151.00 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+125℃
- Ron
- 48Ω
- Number of Channels
- 2
- Voltage - Supply
- 2.5V~5.5V
- Con
- 16pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.293 g
Overview
The RS2252 is a CMOS analog IC configured as two 4-channel multiplexers. This CMOS device can operate from 2.5 V to 5.5 V. The RS2252 device are digitally-controlled analog switches. It has low on-resistance (48Ω TYP) and very low off-leakage current (1nA TYP). The RS2252 is available in Green SOIC-16, SSOP16, TSSOP-16 and QFN-3x3-16L packages. It operates over an ambient temperature range of -40℃ to +125℃.
Applications
- Sensors
- Analog and Digital Multiplexing and Demultiplexing
- A/D and D/A Conversion
- Signal Gating
- Battery-Operated Equipment
- Factory Automation
- Appliances
- Communications Circuits
Key features
- 3dB Bandwidth: 180MHz
- Single Supply Operation +2.5V to +5.5V
- Low ON Resistance, 48Ω(TYP) With 5V Supply
- High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
- Break-Before-Make Switching
- Binary Address Decoding on Chip
- Operating Temperature Range: -40°C to +125°C
- PACKAGES: SOIC-16(SOP16), SSOP-16, TSSOP-16 and QFN-3×3-16L
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RS2252FXS16#C42459535RUNIC · SOP-16 | RUNIC | SOP-16 | On request | ₹26.71 · 0 in stock | View | |
