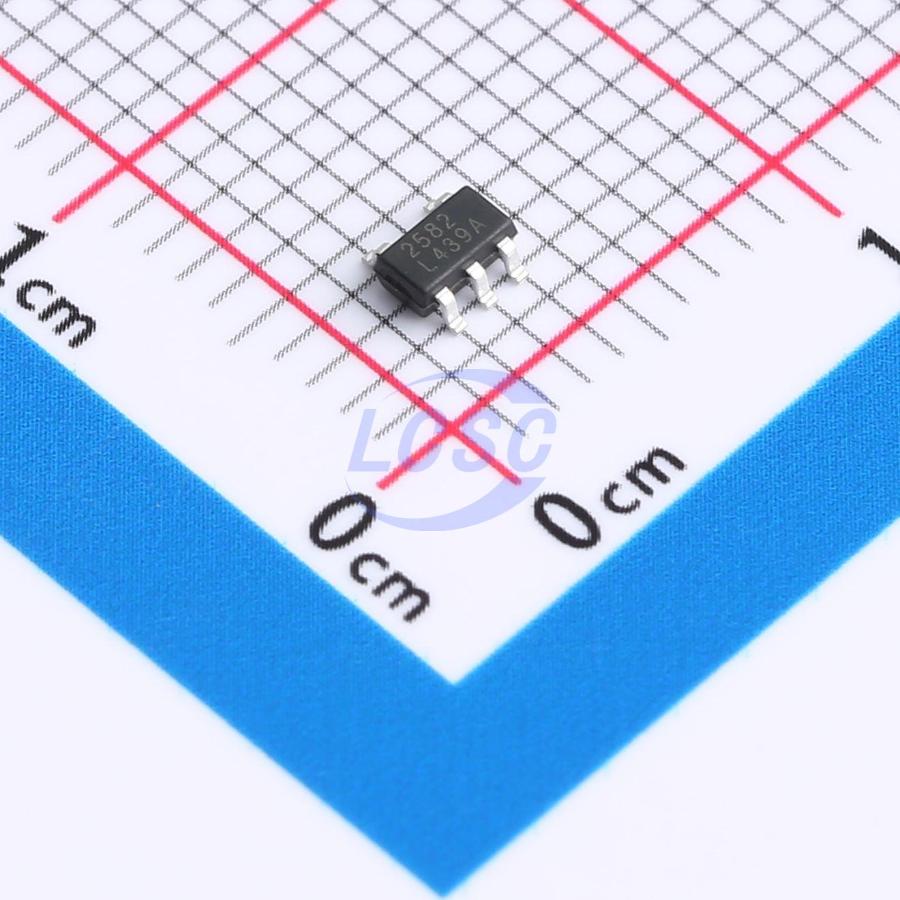

RS2582YF5
1 2.7A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
Precision Adjustable Current Limited Power Distribution Switches
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2582YF5
- Store part #
- C42459544
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,185 in stock
#C42459544
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.99 | ₹139.95 |
| 50+ | ₹21.98 | ₹1,099.00 |
| 150+ | ₹19.41 | ₹2,911.50 |
| 500+ | ₹16.19 | ₹8,095.00 |
| 3,000+ | ₹14.41 | ₹43,230.00 |
| 6,000+ | ₹13.55 | ₹81,300.00 |
5 × ₹27.99
₹139.95
excl. GST
₹165.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2582YF5
₹139.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Soft-start;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2.7A
- Control Input Logic
- Active High
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 70mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.121 g
Overview
The RS2582 is an integrated power switch for selfpowered and bus-powered Universal Serial Bus (USB) applications. The RS2582 is a cost-effective, low voltage, single Pchannel MOSFET load switch with 70mΩ RDS(ON), which is free of parasitic body diode and has no reverse inputoutput leakage current. When the output voltage is higher than input voltage, the power switch is turned off by internal output reverse-voltage protector. Several protection features include current limiting and thermal shutdown to prevent catastrophic switch failure caused by increasing power dissipation when continuous heavy loads or short circuit occurs. RS2582 is available in the Green SOT23-5 package. It is rated over the -40°C to 85°C temperature range.
Applications
- USB Host and Self-Powered Hubs
- USB Bus-Powered Hubs
- USB Power Management
- General Purpose Power Switch (High Side)
- Hot Plug-in Power Supplies Battery-Charger Circuits
Key features
- Typical 27μA Low Quiescent Current
- Typical 0.1μA Shutdown Current
- No Reverse Input-Output Leakage Current Meets USB Current Limiting Requirements
- Adjustable Current Limit: 400mA to 2.7A
- Fast Over-Current Response
- 70mΩ High-side MOSFET
- Under Voltage Lockout
- Thermal Shutdown Protection
- Operating Range: 2.5V to 5.5V
- Built-In Soft-Start Function Available in the Green SOT23-5 Package
