RICHTEKDatasheet (PDF)

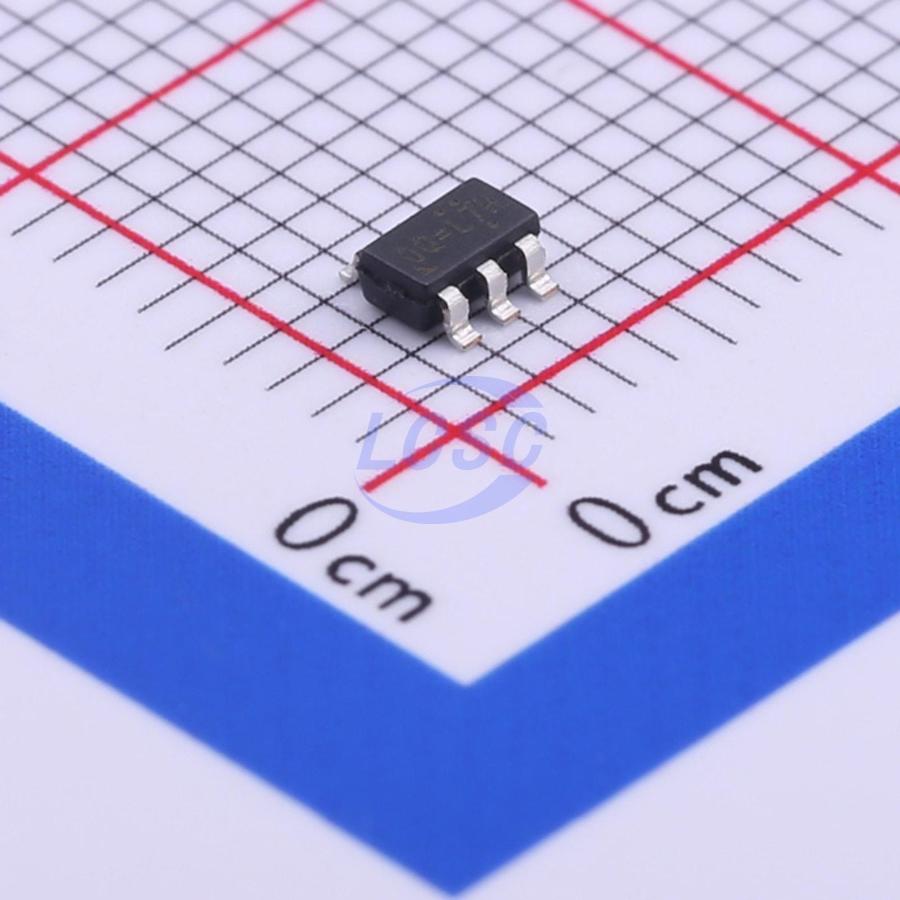

RT6200GE
1.2MHz Step-down type Adjustable 600mA 800mV~15V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
36V Input, 0.6A Output High-Efficiency Buck Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT6200GE
- Store part #
- C427325
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,318 in stock
#C427325
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.86 | ₹55.86 |
| 10+ | ₹44.12 | ₹441.20 |
| 30+ | ₹39.12 | ₹1,173.60 |
| 100+ | ₹33.04 | ₹3,304.00 |
| 500+ | ₹26.08 | ₹13,040.00 |
| 1,000+ | ₹24.34 | ₹24,340.00 |
1 × ₹55.86
₹55.86
excl. GST
₹65.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT6200GE
₹55.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Output Voltage
- 800mV~15V
- Quiescent Current
- 550uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
The RT6200 is a high voltage Buck converter that can support the input voltage range from 4.5V to 36V and the output current can be up to 0.6A. Current mode operation provides fast transient response and eases loop stabilization. The chip also provides protection functions such as cycleby-cycle current limit and thermal shutdown protection. The RT6200 is available in the SOT-23-6 package.
Applications
- Distributed Power Systems
- Battery Chargers
- Pre-Regulator for Linear Regulators
- WLED Drivers
Key features
- Wide Operating Input Voltage Range: 4.5V to 36V
- Adjustable Output Voltage Range: 0.8V to 15V
- 0.6A Output Current
- 0.35Ω Internal Power MOSFET Switch
- High Efficiency up to ±95%
- 1.2MHz Fixed Switching Frequency (Duty <90%)
- Support duty up to ±95%
- Stable with Low ESR Output Ceramic Capacitors
- Thermal Shutdown
- Cycle-By-Cycle Over-Current Protection
