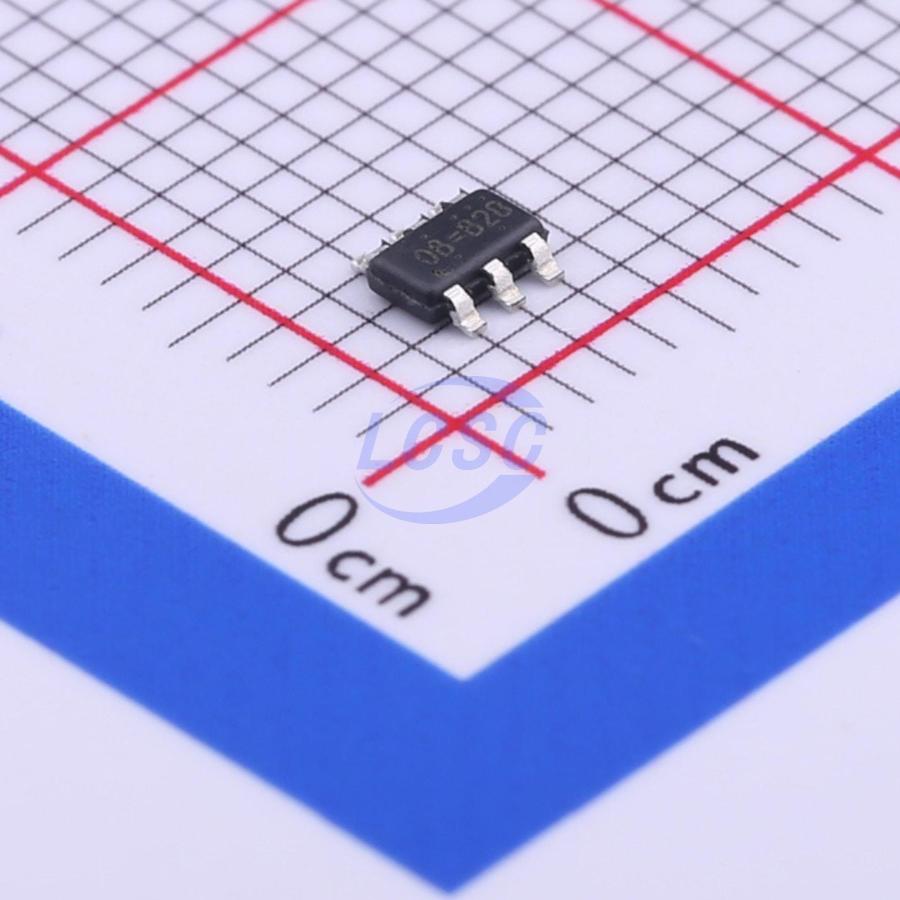

1.5A, 18V, 500kHz ACOT synchronous buck converter

Manufacturer: RICHTEK
Manufacturer part #: RT7285CGJ6
Store part #: C425178
Package / case: TSOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,300 in stock

#C425178

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹57.59	₹57.59
10+	₹45.64	₹456.40
30+	₹40.42	₹1,212.60
100+	₹33.91	₹3,391.00
500+	₹31.08	₹15,540.00
1,000+	₹29.34	₹29,340.00

Quantity (min 1)

1 × ₹57.59

₹57.59

excl. GST

₹67.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT7285CGJ6

₹57.59 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.3V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~8V
Output Current: 1.5A
Quiescent Current: 500uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.022 g

Overview

The RT7285C is a synchronous step-down converter with Advanced Constant On-Time (ACOTTM) mode control. The ACOTTM provides a very fast transient response with few external components. The low impedance internal MOSFET supports high efficiency operation with wide input voltage range from 4.3V to 18V. The proprietary circuit of the RT7285C enables to support all ceramic capacitors. The output voltage can be adjusted between 0.6V and 8V.

Applications

Industrial and Commercial Low Power Systems
Computer Peripherals
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key features

4.3V to 18V Input Voltage Range
1.5A Output Current
Advanced Constant On-Time Control
Fast Transient Response
Support All Ceramic Capacitors
Up to 95% Efficiency
500kHz Switching Frequency
Adjustable Output Voltage from 0.6V to 8V
Cycle-by-Cycle Current Limit
Input Under-Voltage Lockout
Hiccup Mode Under-Voltage Protection
Thermal Shutdown
RoHS Compliant and Halogen Free
