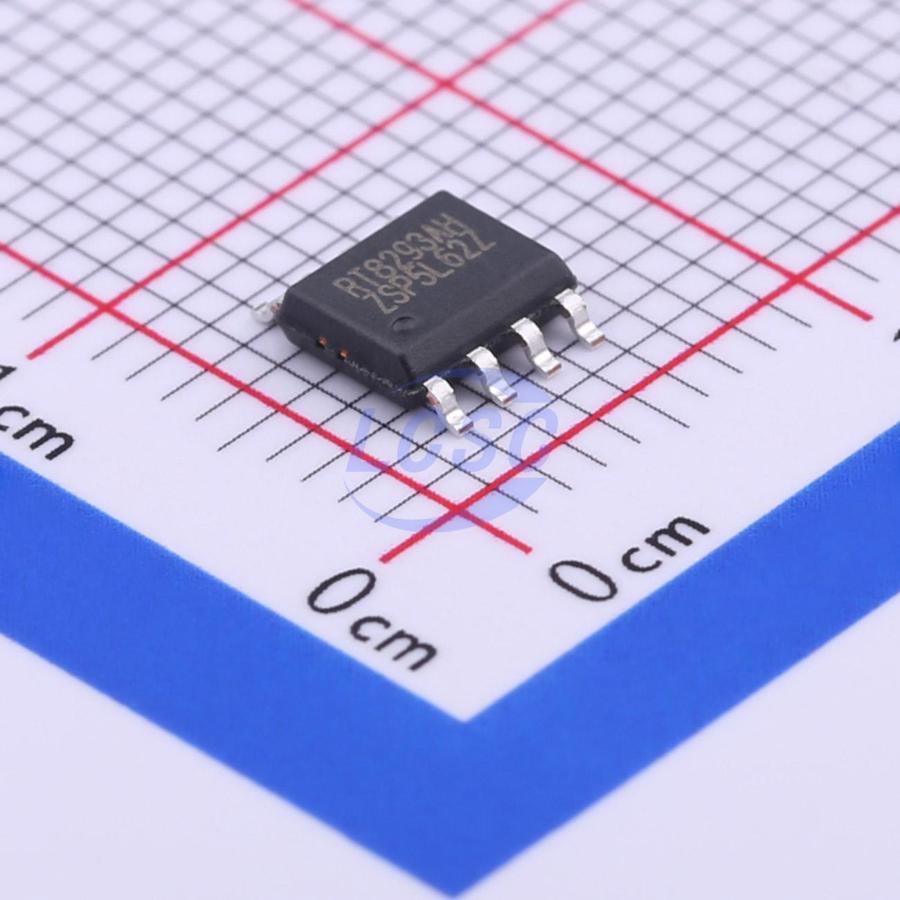

3A, 23V, 340kHz Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT8293AHZSP
Store part #: C116810
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,886 in stock

#C116810

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹42.72	₹42.72
10+	₹37.73	₹377.30
30+	₹35.56	₹1,066.80
100+	₹32.74	₹3,274.00
500+	₹31.66	₹15,830.00
1,000+	₹31.01	₹31,010.00

Quantity (min 1)

1 × ₹42.72

₹42.72

excl. GST

₹50.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

RT8293AHZSP

₹42.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 340kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Cycle-by-cycle current limiting;Hiccup current limiting;Protection latch;External compensation;Load disconnect
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~23V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~20V
Output Current: 3A
Quiescent Current: 800uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.105 g

Overview

The RT8293A is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 3A output current from a 4.5V to 23V input supply. The RT8293A's current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. The RT8293A also provides output under voltage protection and thermal shutdown protection. The low current (<3μA) shutdown mode provides output disconnection, enabling easy power management in battery-powered systems. The RT8293A is available in an SOP-8 (Exposed Pad) package.

Applications

Wireless AP/Router
Set-Top-Box
Industrial and Commercial Low Power Systems
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation of High-Performance DSPs

Key features

±1.5% High Accuracy Feedback Voltage
4.5V to 23V Input Voltage Range
3A Output Current
Integrated N-MOSFET Switches
Current Mode Control Fixed Frequency Operation: 340kHz
Output Adjustable from 0.8V to 20V
Up to 95% Efficiency
Programmable Soft-Start
Stable with Low-ESR Ceramic Output Capacitors Cycle-by-Cycle Over Current Protection
Input Under Voltage Lockout
Output Under Voltage Protection
Thermal Shutdown Protection
RoHS Compliant and Halogen Free
