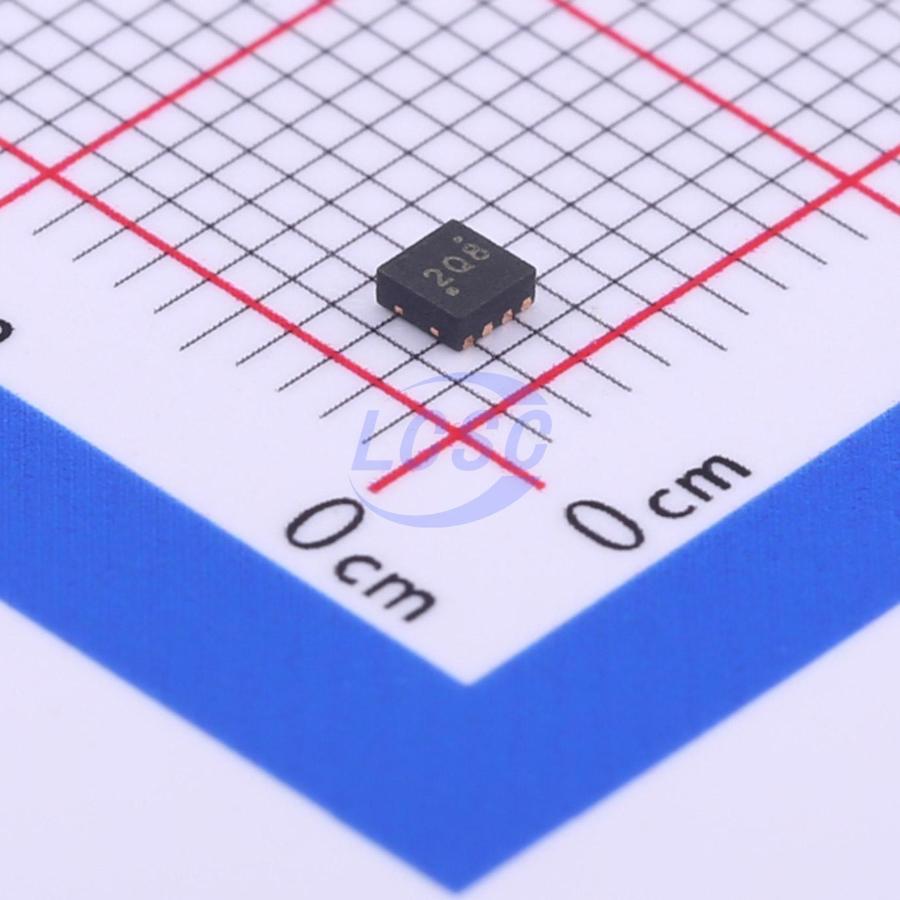

RT9610CGQW
4.5V~5.5V 4A 2A WDFN-8-EP(2x2) Gate Drivers RoHS
High Voltage Synchronous Rectified Buck MoSFET Driver for Notebook Computer
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9610CGQW
- Store part #
- C426477
- Package / case
- WDFN-8-EP(2x2)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,055 in stock
#C426477
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.44 | ₹147.20 |
| 50+ | ₹23.38 | ₹1,169.00 |
| 150+ | ₹20.78 | ₹3,117.00 |
| 500+ | ₹17.54 | ₹8,770.00 |
| 2,500+ | ₹16.10 | ₹40,250.00 |
| 5,000+ | ₹15.23 | ₹76,150.00 |
5 × ₹29.44
₹147.20
excl. GST
₹173.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RT9610CGQW
₹147.20 for 5 + GST
Specifications
- Input Logic Level - Low
- 700mV~1.3V
- Low Level Delay Time
- 20ns
- High Level Delay Time
- 35ns
- Quiescent Current
- 80uA
- Input Logic Level - High
- 3.5V~4.1V
- Voltage - Supply
- 4.5V~5.5V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+85℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 8ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The RT9610C is a high frequency, dual MOSFET driver specifically designed to drive two power N-MOSFETS in a synchronous-rectified buck converter topology. It is especially suited for mobile computing applications that require high efficiency and excellent thermal performance. This driver, combined with Richtek's series of multi-phase Buck PWM controllers, provides a complete core voltage regulator solution for advanced microprocessors. The drivers are capable of driving a 3nF load with fast rising/falling time and fast propagation delay. This device implements bootstrapping on the upper gates with only a single external capacitor. This reduces implementation complexity and allows the use of higher performance, cost effective, N-MOSFETs. Adaptive shoot through protection is integrated to prevent both MOSFETs from conducting simultaneously. The RT9610C is available in WDFN-8L 2x2 Package.
Applications
- Core Voltage Supplies for Intel/AMD Mobile Microprocessors
- High Frequency Low Profile DC/DC Converters
- High Current Low Output Voltage DC/DC Converters
- High Input Voltage DC/DC Converters
Key features
- Drives Two N-MOSFETs
- Adaptive Shoot-Through Protection
- 0.5Q On-Resistance, 4A Sink Current Capability
- Supports High Switching Frequency
- Tri-State PwM Input for Power Stage Shutdown
- Output Disable Function
- Integrated Boost Switch
- Low Bias Supply Current
- VCC POR Feature Integrated
