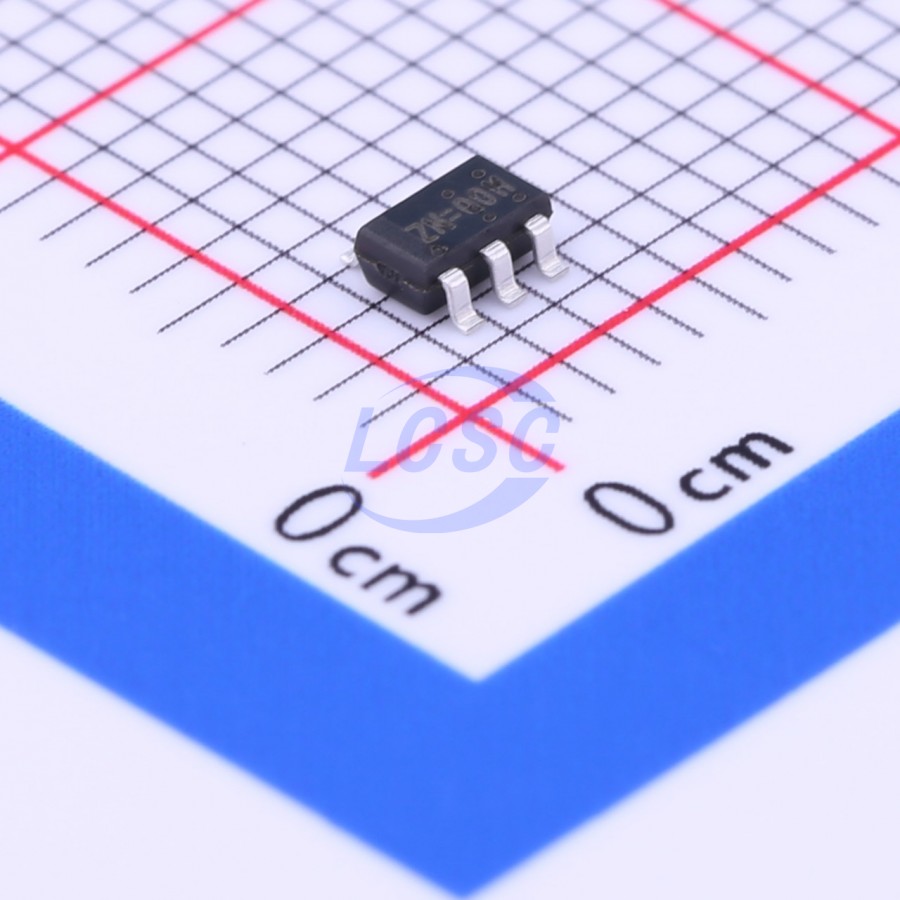

RT9711AGB
1 1.5A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS CompliantActive
High-Side Power Switches with Flag
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT9711AGB
- Store part #
- C250543
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,917 in stock
#C250543
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.59 | ₹61.59 |
| 10+ | ₹49.23 | ₹492.30 |
| 30+ | ₹44.02 | ₹1,320.60 |
| 100+ | ₹37.30 | ₹3,730.00 |
| 500+ | ₹34.48 | ₹17,240.00 |
| 1,000+ | ₹32.74 | ₹32,740.00 |
1 × ₹61.59
₹61.59
excl. GST
₹72.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9711AGB
₹61.59 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Soft-start;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 1.5A
- Control Input Logic
- Active High
- RDS(on)
- 80mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The RT9711A/B/C/D are cost-effective, low voltage, single N-MOSFET high-side power switches, optimized for selfpowered and bus-powered Universal Serial Bus (USB) applications. The RT9711 series are equipped with a charge pump circuitry to drive the internal MOSFET switch. The switch's low RDS(ON), 80mΩ, meets USB voltage drop requirements. A flag output is available to indicate fault conditions to the local USB controller. Additional features include soft-start to limit inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under-voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present, fault current is limited to typically 2.5A for RT9711A/B in dual ports and 1A for RT9711C/D in single port in accordance with the USB power requirements, lower quiescent current as 25μA making this device ideal for portable battery-operated equipment. The RT9711 series are available in SOT-23-5, TSOT-23-5, SOP-8 and MSOP-8 packages fitting different aspect of broad applications.
Applications
- USB Bus/Self Powered Hubs
- USB Peripherals
- ACPI Power Distribution
- PC Card Hot Swap
- Notebook, Motherboard PCs
- Battery-Powered Equipment
- Hot-Plug Power Supplies
- Battery-Charger Circuits
Key features
- Compliant to USB Specifications
- Built-In N-MOSFET Typical RDS(ON): 80mΩ (SOT-23-5 & TSOT-23-5) and 90mΩ (SOP-8 & MSOP-8)
- Output Can Be Forced Higher Than Input (Off-State)
- Low Supply Current: 25μA Typical at Switch On State, 1μA Typical at Switch Off State
- Guaranteed 1.5A for RT9711A/B and 0.6A for RT9711C/D Continuous Load Current
- Wide Input Voltage Ranges: 2.5V to 5.5V
- Open-Drain Fault Flag Output
- Hot Plug-In Application (Soft-Start)
- 1.7V Typical Under-Voltage Lockout (UVLO)
- Current Limiting Protection
- Thermal Shutdown Protection
- Reverse Current Flow Blocking (no body diode)
- Smallest SOT-23-5 and TSOT-23-5 Packages Minimizes Board Space
- UL Approved - E219878
- TUV IEC60950-1: 2005 Certified
- RoHS Compliant and 100% Lead (Pb)-Free
