TECH PUBLICDatasheet (PDF)

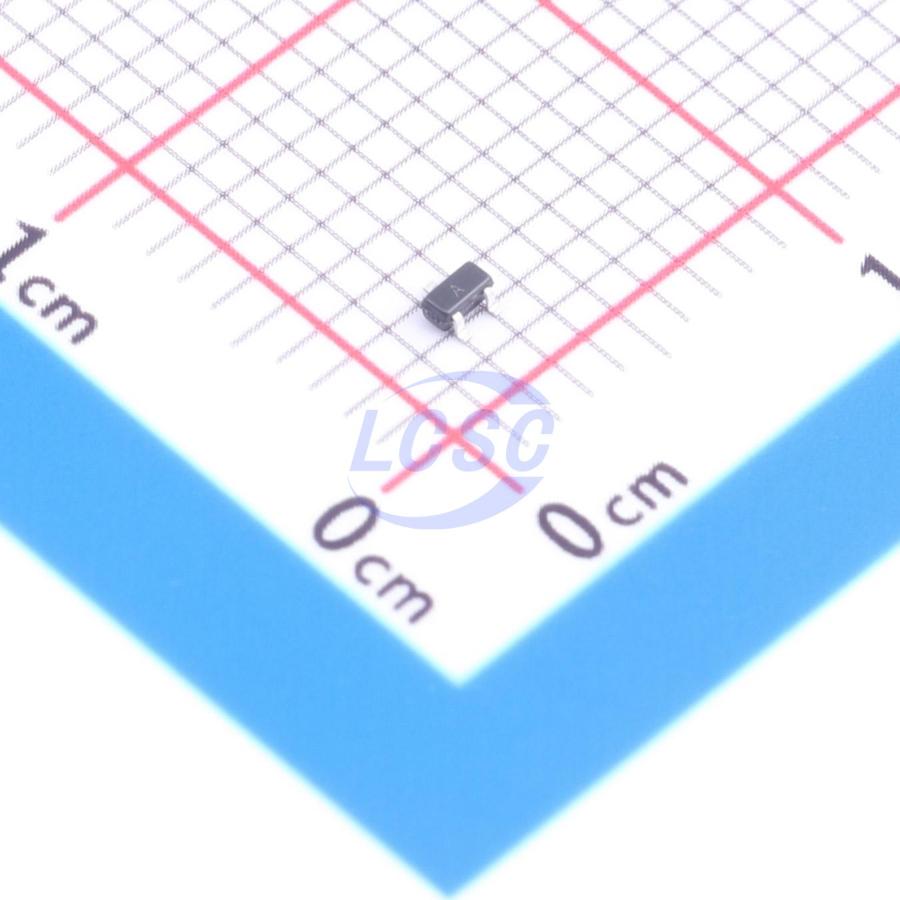

RUE002N02TL-TP
20V 800mA 280mW 250mΩ@4.5V 1 N-channel SOT-523 Single FETs, MOSFETs RoHS
SOT-523ROHS CompliantActive
MOSFET 20V 800mA SOT-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RUE002N02TL-TP
- Store part #
- C51939595
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C51939595
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.13 | ₹102.60 |
| 200+ | ₹4.00 | ₹800.00 |
| 600+ | ₹3.36 | ₹2,016.00 |
| 3,000+ | ₹2.99 | ₹8,970.00 |
| 9,000+ | ₹2.66 | ₹23,940.00 |
| 21,000+ | ₹2.49 | ₹52,290.00 |
20 × ₹5.13
₹102.60
excl. GST
₹121.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RUE002N02TL-TP
₹102.60 for 20 + GST
Specifications
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 20pF
- Current - Continuous Drain(Id)
- 800mA
- Ciss-Input Capacitance
- 120pF
- Pd - Power Dissipation
- 280mW
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 250mΩ@4.5V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 750mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Load/Power Switching
- Interface Switching
- Battery Management for Ultra-Compact Portable Electronics
- Logic Level Translation
Key features
- V(DS) = 20V, I(D) = 0.8A
- R(DS(ON)) = 250 mΩ (typ.) at V(GS) = 4.5V
- R(DS(ON)) = 300 mΩ (typ.) at V(GS) = 2.5V
- ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN2004TK-TP#C51939543TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,920 | ₹5.09 · 2,920 in stock | View |
 | SI1012X-TP#C51939598TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,980 | ₹5.12 · 2,980 in stock | View |
 | WNM4002#C51939681TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,240 | ₹5.32 · 2,240 in stock | View |
 | DMN2310UT-TP#C55042585TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 3,000 | ₹5.12 · 3,000 in stock | View |
 | FDY301NZ-TP#C51939562TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,360 | ₹5.09 · 2,360 in stock | View |
