TECH PUBLICDatasheet (PDF)

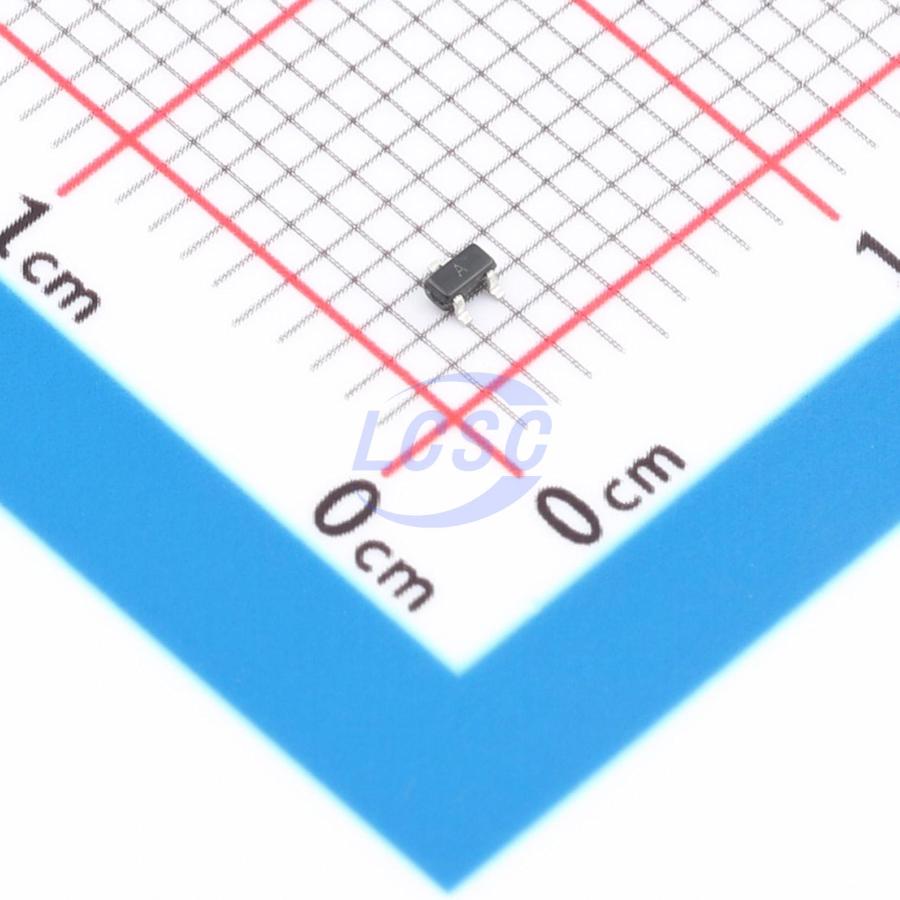

SI1012X-TP
280mW 20V 800mA 250mΩ@4.5V 1 N-channel N-Channel SOT-523 Single FETs, MOSFETs
SOT-523RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI1012X-TP
- Store part #
- C51939598
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C51939598
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.12 | ₹102.40 |
| 200+ | ₹3.97 | ₹794.00 |
| 600+ | ₹3.32 | ₹1,992.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 9,000+ | ₹2.61 | ₹23,490.00 |
| 21,000+ | ₹2.42 | ₹50,820.00 |
20 × ₹5.12
₹102.40
excl. GST
₹120.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI1012X-TP
₹102.40 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 20pF
- Ciss-Input Capacitance
- 120pF
- Pd - Power Dissipation
- 280mW
- Drain to Source Voltage
- 20V
- Configuration
- Standalone
- Current - Continuous Drain(Id)
- 800mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 250mΩ@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 750mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Load/power switch
- Interface switch
- Battery management for ultra-compact portable electronics
- Logic level translation
Key features
- Drain-Source Voltage (VDS) = 20V, Drain Current (ID) = 0.8A
- RDS(ON) = 250mΩ (typ) at VGS = 4.5V
- RDS(ON) = 300mΩ (typ) at VGS = 2.5V
- ESD protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WNM4002#C51939681TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,240 | ₹5.32 · 2,240 in stock | View |
 | DMN2310UT-TP#C55042585TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 3,000 | ₹5.12 · 3,000 in stock | View |
 | DMN2004TK-TP#C51939543TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,920 | ₹5.09 · 2,920 in stock | View |
 | RUE002N02TL-TP#C51939595TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,480 | ₹5.13 · 2,480 in stock | View |
 | FDY301NZ-TP#C51939562TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,360 | ₹5.09 · 2,360 in stock | View |
