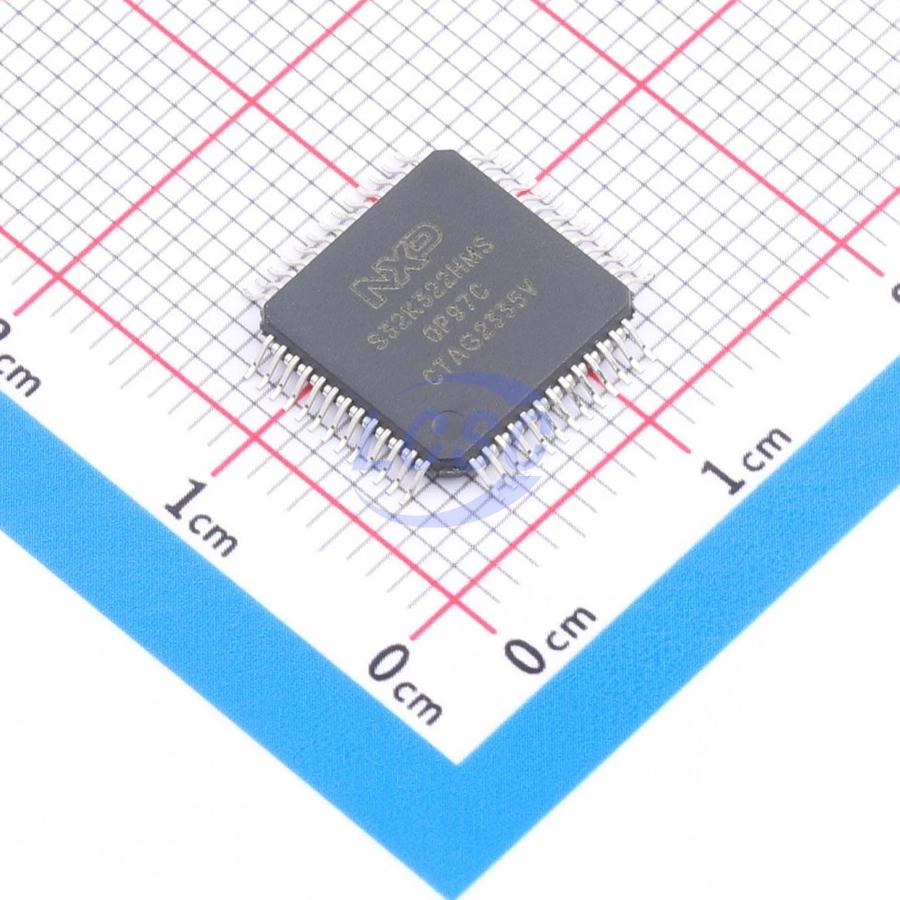

S32K322EHT0MPAST

ARM Cortex-M7 32 Bit 160MHz QFP-100 Microcontrollers RoHS

QFP-100ROHS3 CompliantActive

Operating characteristics, Memory and memory interfaces, Arm Cortex-M7 core, Mixed-signal analog, Clock interfaces, Human-Machine Interface, I/O and package, Power management, Debug functionality, Communications interfaces, Timing and control, Reliability, safety and security

Manufacturer: NXP
Manufacturer part #: S32K322EHT0MPAST
Store part #: C20234353
Package / case: QFP-100
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C20234353

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹2,929.40	₹2,929.40
10+	₹2,843.66	₹28,436.60

Quantity (min 1)

1 × ₹2,929.40

₹2,929.40

excl. GST

₹3,456.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 480 per tray

S32K322EHT0MPAST

₹2,929.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Program Memory Type: FLASH
Voltage - Supply: 2.97V~5.5V
EEPROM: 128KB
Program Storage Size: 2MB
CPU Core: ARM Cortex-M7
Core Size: 32 Bit
CPU Maximum Speed: 160MHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 480 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

Applications

Wide range of applications in harsh electrical environments
Cost-sensitive applications
Automotive industry

Key features

Arm Cortex-M7 core, 32-bit CPU — M7 supports up to 320 MHz frequency with 2.14 DMIPS / MHz
Arm Core based on the Armv7 and Thumb-2 ISA
Integrated Digital Signal Processor (DSP)
Configurable Nested Vectored Interrupt Controller (NVIC)
Single Precision Floating Point Unit (FPU)
8 - 40 MHz Fast External Oscillator (FXOSC)
48 MHz Fast Internal RC oscillator (FIRC)
32 kHz Low Power Oscillator (SIRC)
32 kHz Slow External Oscillator (SXOSC) System Phased Lock Loop (SPLL)
LQFP48, HDQFP100, HDQFP172, MAPBGA257, MAPBGA289, HDQFP172 with Exposed pad (EP) package options
Up to 32-channel DMA with up to 128 request sources using DMAMUX
Up to 8 MB program flash memory with ECC
Up to 128 K of flexible program or data flash memory
Up to 1152 KB SRAM with ECC, includes 384 KB of TCM RAM ensuring maximum CPU performance of fast control loops with minimal latency
Data and instruction cache for each core to minimize performance impact of memory access latencies
QuadSPI support
Up to three 12-bit Analog-to-Digital Converters (ADC) with up to 24 channel analog inputs per module
One Temperature Sensor (TempSense)
Up to three Analog Comparators (CMP), with each comparator having an internal 8-bit DAC
Up to 235 GPIO pins
Non-Maskable Interrupt (NMI)
Up to 60 pins with wakeup capability
Up to 32 pins with interrupt support
Low-power Arm Cortex-M7 core with excellent energy efficiency, balanced with performance
Power Management Controller (PMC) with simplified mode management (RUN and STANDBY)
Supports peripheral specific clock gating. Only specific peripherals remain working in low power modes.
Up to 16 serial communication interface (LPUART) modules, with LIN, UART and DMA support
Up to six Low Power Serial Peripheral Interface (LPSPI) modules with DMA support
Up to two Low Power Inter-Integrated Circuit (LPI2C) modules with DMA support
Up to eight FlexCAN modules (with optional CANFD support)
FlexIO module for flexible and high performance serial interfaces
Up to two Ethernet modules
Up to two Synchronous Audio Interface (SAI) modules
Hardware Security Engine (HSE_B) - Supports AES accelerator(for K388 only)
Up to two Internal Software Watchdog Timers (SWT)
Error-Correcting Code (ECC) on all memories
Error Detection Code (EDC) on data path
Cyclic Redundancy Check (CRC) module
120-bit Unique Identification (ID) number
Extended Cross domain Domain Controller (XRDC), providing protection for master core access rights
Virtualization Wrapper (VIRT_WRAPPER), providing I/O protection
Serial Wire JTAG debug Port (SWJ-DP), with 2 pin Serial Wire Debug (SWD) for external debugger
Debug Watchpoint and Trace (DWT), with four configurable comparators as hardware watchpoints
Serial Wire Output (SWO)-synchronous trace data support
Instrumentation Trace Macrocell (ITM) with software and hardware trace, plus time stamping
CoreSight AHB Trace Macrocell (HTM)
Flash Patch and Breakpoints (FPB) with ability to patch code and data from code space to system space
Serial Wire Viewer (SWV): A trace capability providing displays of reads, writes, exceptions, PC Samples and print
Full data trace for up to 16 output wide
Embedded Cross Trigger (ECT) is used for multicore run-control and trace cross triggering, using CoreSight Cross Trigger Interface (CTI)
Up to three enhanced modular I/O system (eMIOS), offering up to 72 timer channels (IC/OC/PWM)
Up to two System Timer Modules (STM)
Up to two Logic Control Units (LCU)
Full cross triggering support for ADC / timer (BCTU)
One Trigger MUX Control (TRGMUX) module
Up to three Periodic Interrupt Timer (PIT) modules
32-bit Real Time Counter (RTC) with autonomous periodic interrupt (API) function
