VISHAYDatasheet (PDF)

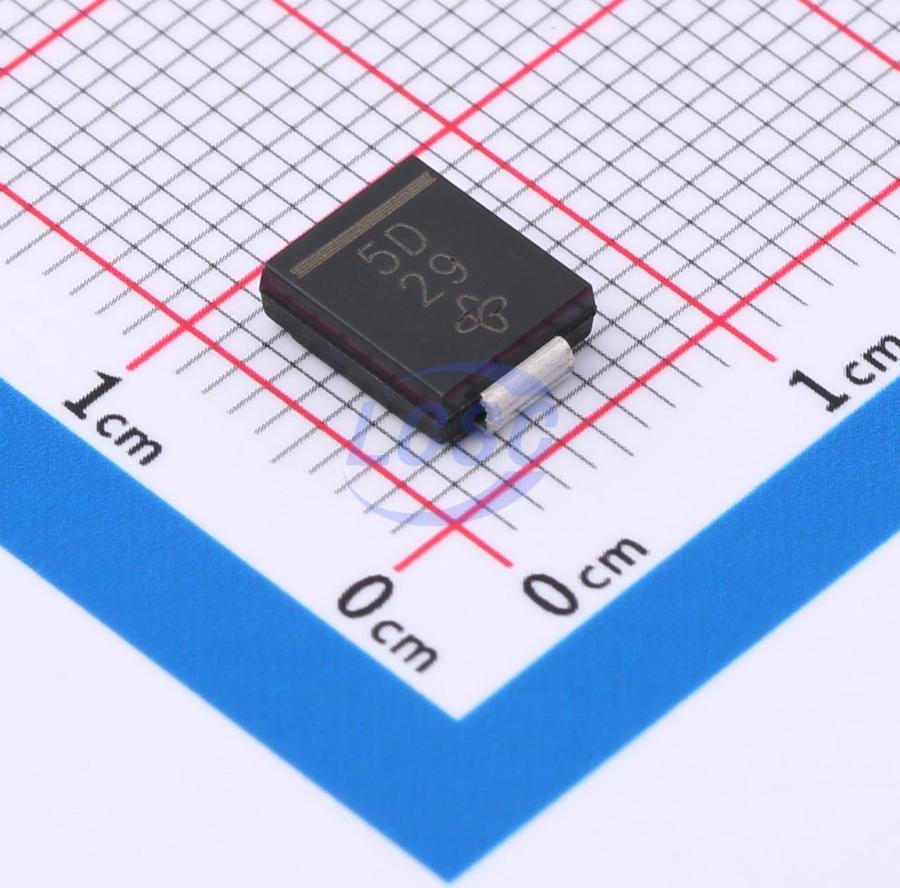

S5D-E3/57T
Diode 1 Independent 200V Surface Mount DO-214AB
DO-214ABROHS3 CompliantActive
DIODE STANDARD 200V DO-214AB
- Manufacturer
- VISHAY
- Manufacturer part #
- S5D-E3/57T
- Store part #
- C5224086
- Package / case
- DO-214AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C5224086
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.70 | ₹110.70 |
| 10+ | ₹109.20 | ₹1,092.00 |
| 30+ | ₹108.34 | ₹3,250.20 |
| 100+ | ₹107.48 | ₹10,748.00 |
1 × ₹110.70
₹110.70
excl. GST
₹130.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
S5D-E3/57T
₹110.70 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.15V@5A
- Reverse Leakage Current (Ir)
- 10uA
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop RoHS COMPLIANT
- Low leakage current HALOGEN
- High forward surge capability FREE
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5D-E3/9AT#C17563407VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 206 | ₹135.82 · 206 in stock | View |
 | S5G-E3/57T#C142622VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 440 | ₹24.93 · 440 in stock | View |
 | S5G#C18548242DOWO · SMC | DOWO | SMC | 2,120 | ₹4.86 · 2,120 in stock | View |
 | S5J-E3/57T#C143035VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 720 | ₹37.27 · 720 in stock | View |
 | S5JHE3_A/H#C511410VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 395 | ₹45.51 · 395 in stock | View |
