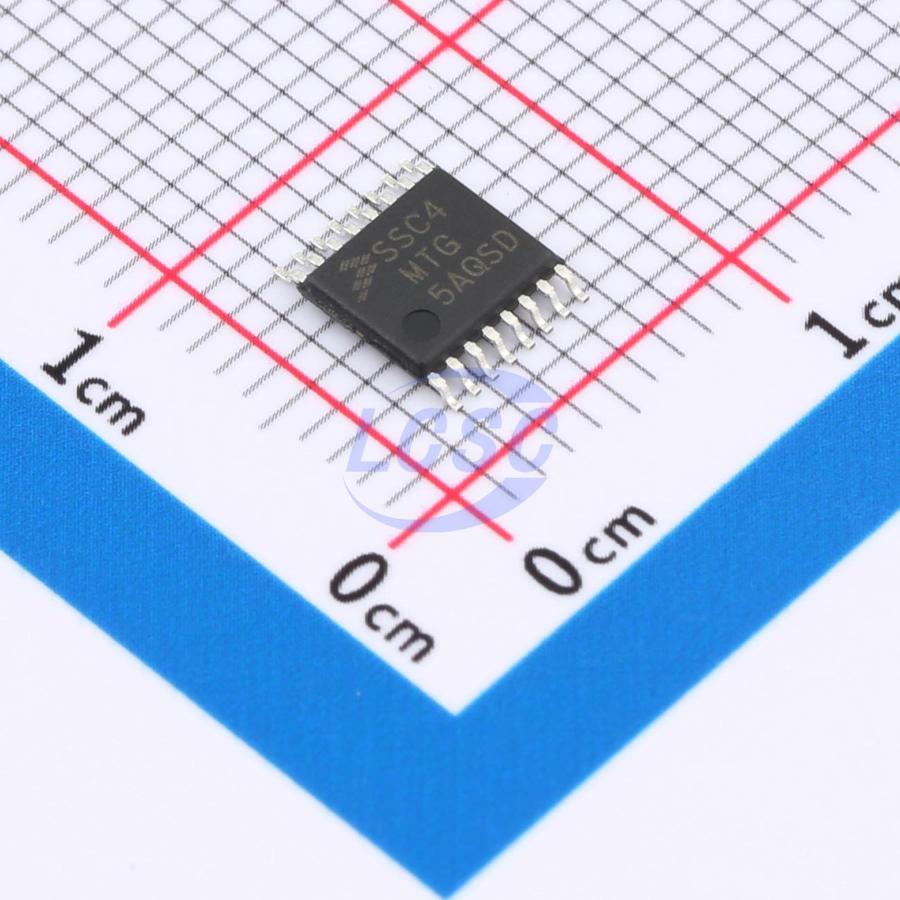

S9S08SC4E0MTGR

The MC9S08SC4 is a member of the low-cost, high-performance HCS08 Family of 8-bit microcontroller units (MCUs). The MC9S08SC4 uses the enhanced HCS08 core.

Key features

• Up to 40 MHz HCS08 CPU (central processor unit); up to 20 MHz bus frequency
• HC08 instruction set with added BGND instruction
• 4 KB of FLASH with read/program/erase over full operating voltage and temperature
• 256 bytes of Random-access memory (RAM)
• Two very low power stop modes
• Reduced power wait mode
• Oscillator (XOSC) — Loop-control Pierce oscillator; Crystal or ceramic resonator range of 32 kHz to 38.4 kHz or 1 MHz to 16 MHz
• Internal Clock Source (ICS) — Internal clock source module containing a frequency-locked loop (FLL) controlled by internal or external reference; precision trimming of internal reference allows 0.2 % resolution and 2.0 % deviation over temperature and voltage; supports bus frequencies from 2 MHz to 20 MHz
• Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
• Low-voltage detection with reset or interrupt; selectable trip points
• Illegal opcode detection with reset
• Illegal address detection with reset
• FLASH block protect
• Reset on loss of clock
• Single-wire background debug interface
• Breakpoint capability to allow single breakpoint setting during in-circuit debugging
• SCI — Serial Communication Interface: Full-duplex non-return to zero (NRZ), LIN master extended break generation, LIN slave extended break detection, Wake-up on active edge
• TPMx — Two 2-channel Timer/PWM modules (TPM1 and TPM2): 16-bit modulus or up/down counters, Input capture, output compare, buffered edge-aligned or center-aligned PWM
• ADC — Analog to Digital Converter: 8-channel, 10-bit resolution, 2.5 μs conversion time, Automatic compare function, Temperature sensor, Internal bandgap reference channel
• 12 general purpose I/O pins (GPIOs)
• 8 interrupt pins with selectable polarity
• Hysteresis and configurable pull-up device on all input pins; Configurable slew rate and drive strength on all output pins
• 16-TSSOP package
• 4.5 - 5.5 V operation
• C, V, M temperature ranges available, covering -40 - 125 ℃ operation
