NXPDatasheet (PDF)

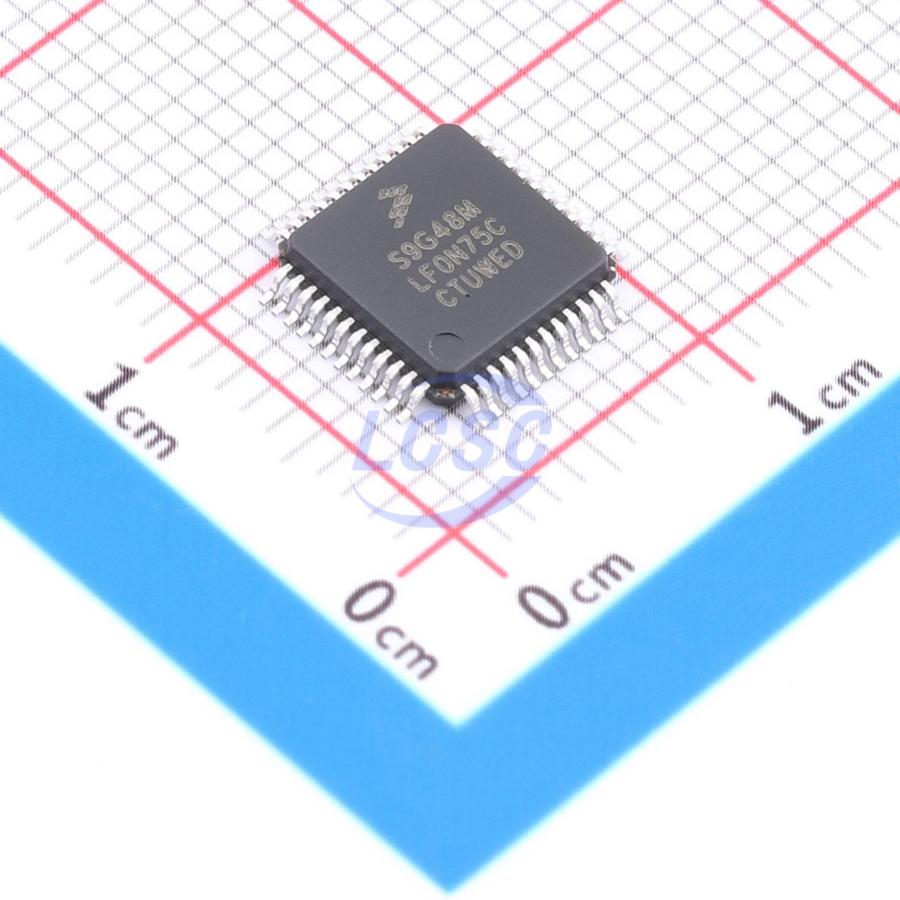

S9S12G48F0MLF
Others 16 Bit 25MHz LQFP-48(7x7) Microcontrollers RoHS
LQFP-48(7x7)ROHS3 CompliantActive
S12 Microcontrollers
- Manufacturer
- NXP
- Manufacturer part #
- S9S12G48F0MLF
- Store part #
- C1339571
- Package / case
- LQFP-48(7x7)
- Category
- Microcontrollers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1339571
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹958.42 | ₹958.42 |
| 10+ | ₹935.37 | ₹9,353.70 |
| 30+ | ₹919.93 | ₹27,597.90 |
| 100+ | ₹904.50 | ₹90,450.00 |
1 × ₹958.42
₹958.42
excl. GST
₹1,130.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,250 per tray
S9S12G48F0MLF
₹958.42 for 1 + GST
Specifications
- ADC (Bit)
- 10bit
- Number of I/O
- 40
- Operating Temperature
- -40℃~+125℃
- Voltage - Supply
- 3.13V~5.5V
- Program Memory Type
- FLASH
- EEPROM
- 1.5KB
- Program Storage Size
- 48KB
- CPU Core
- Others
- Core Size
- 16 Bit
- CPU Maximum Speed
- 25MHz
- Oscillator Type
- Built-in
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 3A991A2
- Packaging
- Tray
- Standard pack
- 1,250 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
Key features
- Chip-Level Features
- Module Features
- S12 16-Bit Central Processor Unit (CPU)
- On-Chip Flash with ECC
- On-Chip SRAM
- Port Integration Module (PIM)
- Main External Oscillator (XOSCLCP)
- Internal RC Oscillator (IRC)
- Internal Phase-Locked Loop (IPLL)
- System Integrity Support
- Timer (TIM)
- Pulse Width Modulation Module (PWM)
- Controller Area Network Module (MSCAN)
- Serial Communication Interface Module (SCI)
- Serial Peripheral Interface Module (SPI)
- Analog-to-Digital Converter Module (ADC)
- Reference Voltage Attenuator (RVA)
- Digital-to-Analog Converter Module (DAC)
- Analog Comparator (ACMP)
- On-Chip Voltage Regulator (VREG)
- Background Debug (BDM)
- Debugger (DBG)
- Port Integration Module (S12GPIMV1) Features
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S9S12G48AMLF#C1345875NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 53 | ₹1,036.91 · 53 in stock | View |
 | S9S12G64F0MLF#C414058NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 4 | ₹764.24 · 4 in stock | View |
| S9S12G96F0MLF#C1344911NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 3 | ₹2,001.39 · 3 in stock | View | |
 | S9S12G128F0MLF#C1339100NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 3 | ₹1,187.15 · 3 in stock | View |
| S9S12G96F0CLF#C1338143NXP · LQFP-48(7x7) | NXP | LQFP-48(7x7) | 5 | ₹1,652.07 · 5 in stock | View | |
