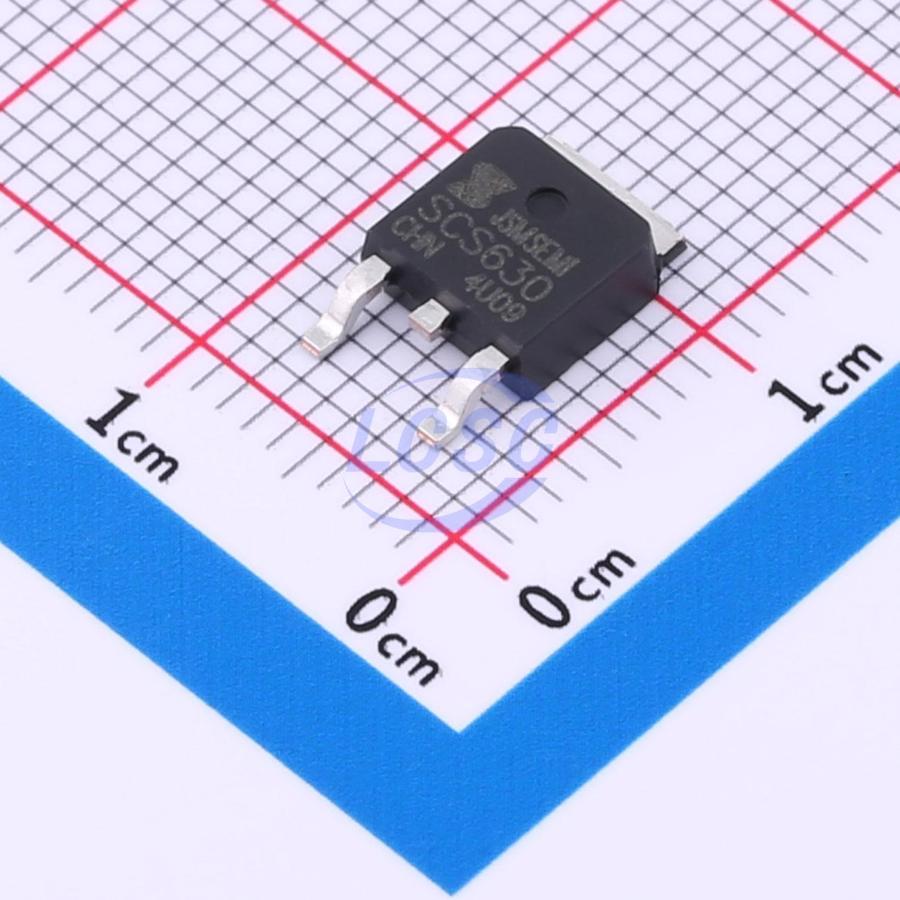

SCS630A4H
N-Channel 200V 9A 74W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 200V 9A TO-252
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SCS630A4H
- Store part #
- C20616637
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C20616637
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.52 | ₹142.60 |
| 50+ | ₹24.87 | ₹1,243.50 |
| 150+ | ₹23.31 | ₹3,496.50 |
| 500+ | ₹21.37 | ₹10,685.00 |
| 2,500+ | ₹20.49 | ₹51,225.00 |
| 5,000+ | ₹19.98 | ₹99,900.00 |
5 × ₹28.52
₹142.60
excl. GST
₹168.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SCS630A4H
₹142.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 87pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 605pF
- Pd - Power Dissipation
- 74W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 300mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.391 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supply (UPS)
- Power Factor Correction (PFC)
Key features
- Fast switching 100% avalanche tested
- Improved dv/dt capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD10N20CTM-JSM#C18192414JSMSEMI · TO-252 | JSMSEMI | TO-252 | 1,166 | ₹58.86 · 1,166 in stock | View |
 | JCS630RA#C20616634JSMSEMI · TO-252 | JSMSEMI | TO-252 | 2,133 | ₹35.87 · 2,133 in stock | View |
 | SUF630G-TN3-R#C20616635JSMSEMI · TO-252 | JSMSEMI | TO-252 | 10,765 | ₹43.51 · 10,765 in stock | View |
 | FQD7N20LTM-JSM#C20616636JSMSEMI · TO-252 | JSMSEMI | TO-252 | 60 | ₹29.71 · 60 in stock | View |
 | SME10N15-G#C20616638JSMSEMI · TO-252 | JSMSEMI | TO-252 | 1,840 | ₹30.92 · 1,840 in stock | View |
