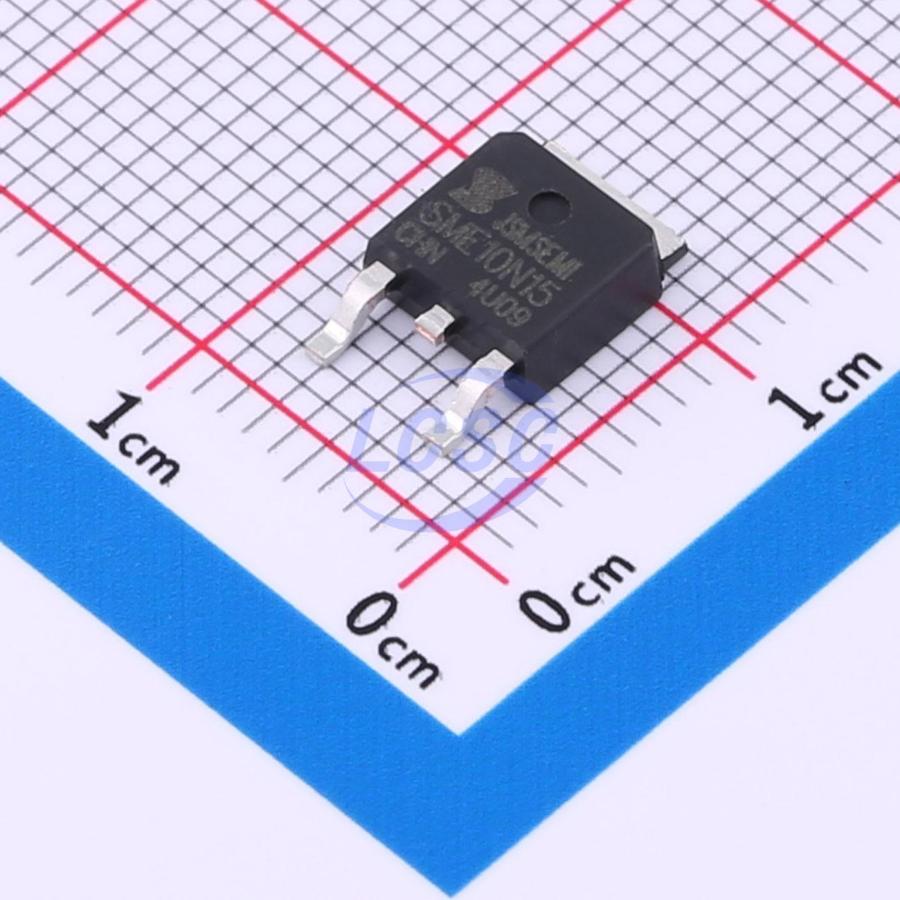

SME10N15-G
N-Channel 200V 9A 74W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 200V 9A TO-252
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SME10N15-G
- Store part #
- C20616638
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C20616638
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.92 | ₹154.60 |
| 50+ | ₹27.29 | ₹1,364.50 |
| 150+ | ₹25.75 | ₹3,862.50 |
| 500+ | ₹23.80 | ₹11,900.00 |
| 2,500+ | ₹22.94 | ₹57,350.00 |
| 5,000+ | ₹22.42 | ₹1,12,100.00 |
5 × ₹30.92
₹154.60
excl. GST
₹182.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SME10N15-G
₹154.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 87pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 605pF
- Pd - Power Dissipation
- 74W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 300mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supply (UPS)
- Power Factor Correction (PFC)
Key features
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
