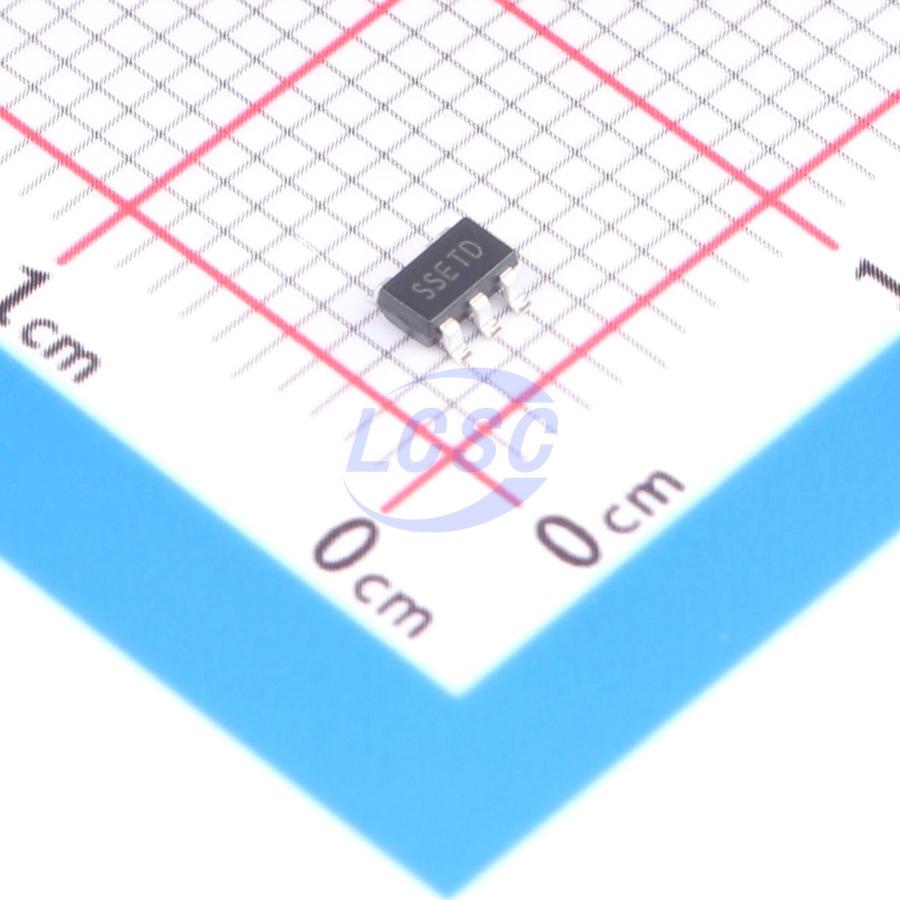

SGM2588CYN5G/TR

The SGM2588 is a single-channel power distribution switch. The switch operates over a wide supply voltage range of 2.5V to 5.5V and is controlled by the EN pin, making it suitable for USB power distribution applications. It integrates a 100mΩ low on-resistance N-channel MOSFET. The small package size and low quiescent current make this device well-suited for space-constrained battery-powered applications. The device features multiple protection functions, including soft-start, current limiting, and thermal shutdown. If the die temperature exceeds +150°C, the thermal shutdown function turns off the output MOSFET and asserts the nFAULT output; the output MOSFET remains off until the die temperature drops to +130°C. Under fault conditions, the nFAULT pin is pulled low after a 13ms blanking time to prevent false triggering. The SGM2588 is available in a green SOT-23-5 package and operates over a temperature range of -40°C to +85°C.

Applications

• Digital TV
• Set-top box
• Motherboard USB power switch
• USB device power switch

Key features

• Input voltage range: 2.5V to 5.5V
• On-resistance: 100mΩ (typical)
• Three current limit levels
• SGM2588A/B/G: 1100 ± 110mA
• SGM2588C/D/I: 2100 ± 220mA
• SGM2588E/F/K: 2600 ± 310mA
• Quiescent current: 23μA (typical)
• Shutdown current: 0.1μA (typical)
• Comprehensive protection features
• Soft-start
• Input undervoltage lockout
• No reverse leakage current
• Thermal shutdown
• Fast output discharge: SGM2588A/B/C/D/E/F
• EN pin pull-down resistor: 500kΩ (SGM2588G/I/K)
• Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC, Test Procedure 1 with CB report (SGM2588A/C/E)
• Green SOT-23-5 package
