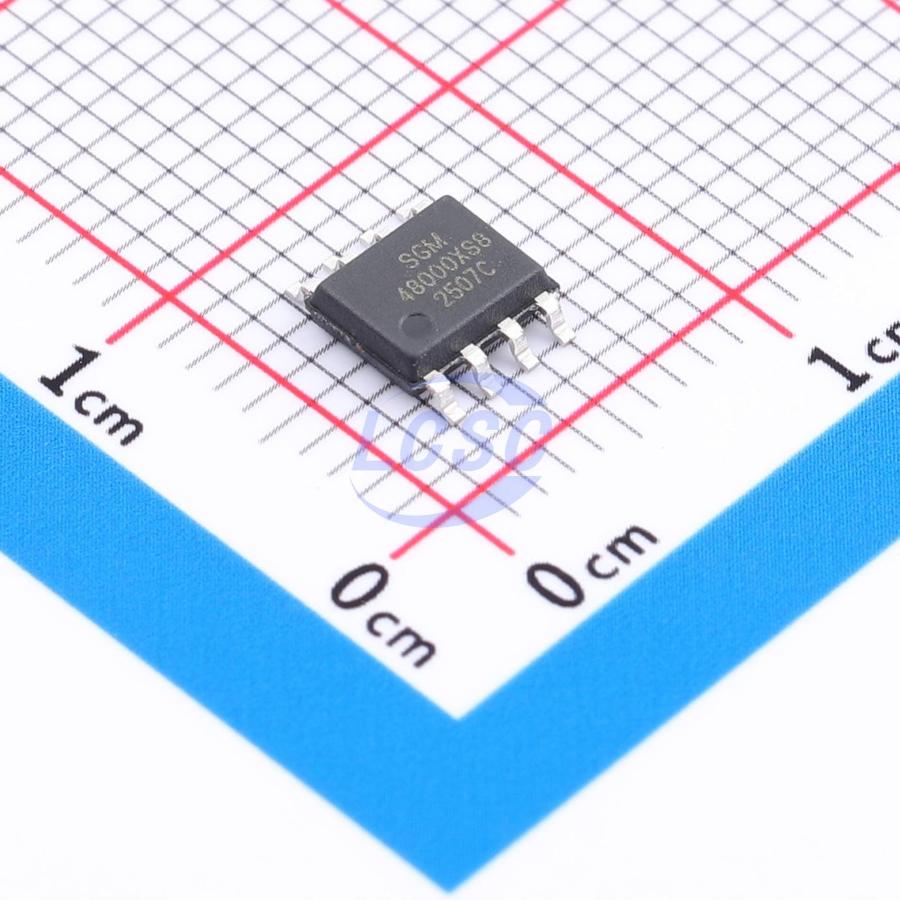

SGM48000XS8G/TR
4.5V~26.5V 2A 2A SOIC-8 Gate Drivers
High Speed, Dual Power MOSFET Drivers
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM48000XS8G/TR
- Store part #
- C700286
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,138 in stock
#C700286
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.59 | ₹120.59 |
| 10+ | ₹92.50 | ₹925.00 |
| 30+ | ₹78.67 | ₹2,360.10 |
| 100+ | ₹64.84 | ₹6,484.00 |
1 × ₹120.59
₹120.59
excl. GST
₹142.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SGM48000XS8G/TR
₹120.59 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~26.5V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 12ns
- Fall Time
- 13ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
The SGM48000/1/2 series are dual-channel low-side drivers with typical 2A source and sink current capability. Inverting and non-inverting inputs are both available and three combinations can be chosen for flexible logic application. The rise time and fall time of SGM48000/1/2 are matched to be 12ns and 13ns respectively, which allows the pulse widths to deliver to the outputs with minimum timing errors and clock skew issues. Unique technique is integrated to achieve minimum overlap of the outputs, which reduces the dynamic switching losses. The SGM48000/1/2 are available in Green SOIC-8 and TDFN-2×2-8L packages. They operate over an ambient temperature range of -40°C to +125°C.
Applications
- Driving Power Devices
- DC/DC Converters
- Switch Mode Power Supplies
- Motor Control
- Class D Switching Amplifiers
Key features
- Improved Response Times
- Matched Rise and Fall Times
- Reduced Clock Skew between Dual Channels
- Low Output Impedance
- Output is at LOW under UVLO Protection
- High Noise Immunity
- Improved Clocking Rate
- Low Supply Current
- Wide Operating Voltage Range
- -40°C to +125°C Operating Temperature Range
- Available in Green SOIC-8 and TDFN-2×2-8L Packages
