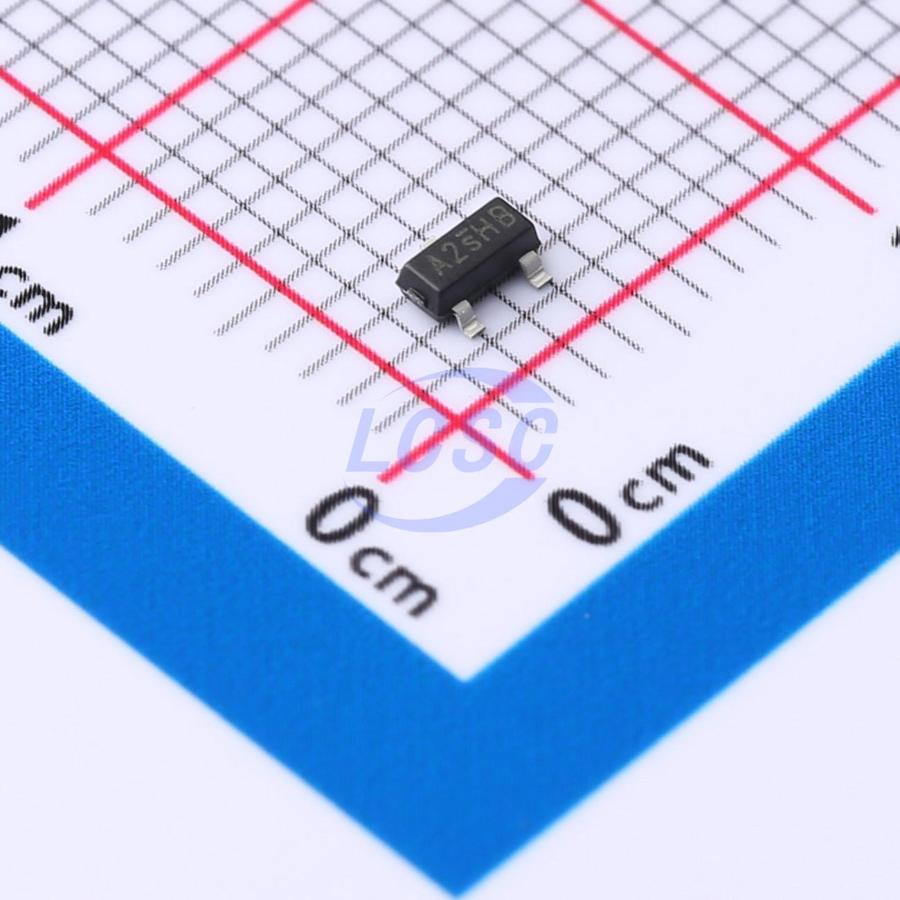

SI2302CDS
20V 2.8A 900mW Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 2.8A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI2302CDS
- Store part #
- C5310968
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,480 in stock
#C5310968
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.82 | ₹76.40 |
| 200+ | ₹3.04 | ₹608.00 |
| 600+ | ₹2.62 | ₹1,572.00 |
| 3,000+ | ₹2.35 | ₹7,050.00 |
| 9,000+ | ₹2.13 | ₹19,170.00 |
| 21,000+ | ₹2.01 | ₹42,210.00 |
20 × ₹3.82
₹76.40
excl. GST
₹90.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2302CDS
₹76.40 for 20 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 270pF
- Current - Continuous Drain(Id)
- 2.8A
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 900mW
- RDS(on)
- 85mΩ@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Battery protection
- Load switch
- Power management
Key features
- 20V, 2.8A
- R<sub>DS(ON)</sub> = 83 mΩ (typical) at V<sub>GS</sub> = 4.5V
- R<sub>DS(ON)</sub> = 120 mΩ (typical) at V<sub>GS</sub> = 2.5V
- Lead-free certified
- Robust and reliable
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2302DS#C5310967TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 21,120 | ₹4.23 · 21,120 in stock | View |
 | TPM2302LS3#C2841418TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,140 | ₹4.26 · 2,140 in stock | View |
 | SI2302#C2841377TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 16,440 | ₹3.63 · 16,440 in stock | View |
 | AO3402A#C7603371TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,440 | ₹5.68 · 3,440 in stock | View |
 | AO3402#C7603372TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 620 | ₹4.79 · 620 in stock | View |
