TECH PUBLICDatasheet (PDF)

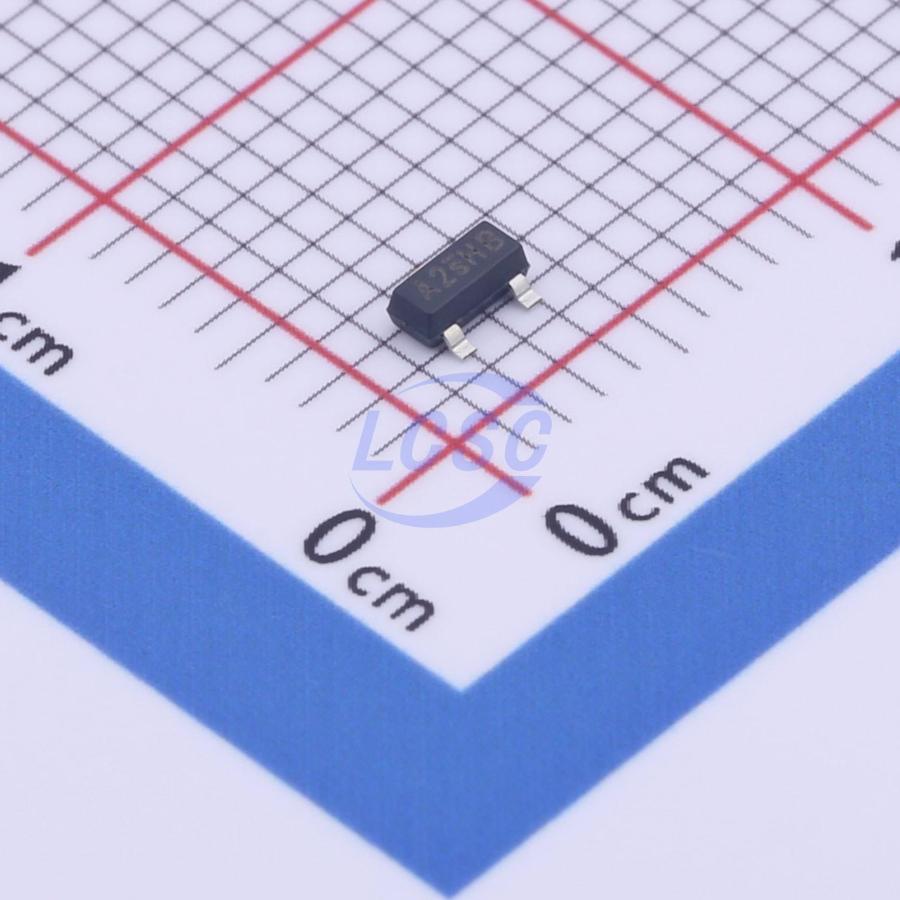

TPM2302LS3
20V 2.6A 0.9W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 2.6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM2302LS3
- Store part #
- C2841418
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,140 in stock
#C2841418
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.26 | ₹85.20 |
| 200+ | ₹3.44 | ₹688.00 |
| 600+ | ₹2.99 | ₹1,794.00 |
| 3,000+ | ₹2.47 | ₹7,410.00 |
| 9,000+ | ₹2.24 | ₹20,160.00 |
| 21,000+ | ₹2.12 | ₹44,520.00 |
20 × ₹4.26
₹85.20
excl. GST
₹100.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM2302LS3
₹85.20 for 20 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 270pF
- Current - Continuous Drain(Id)
- 2.6A
- Ciss-Input Capacitance
- 880pF
- Pd - Power Dissipation
- 900mW
- RDS(on)
- 85mΩ@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.033 g
Overview
The UniFET™ MOSFET is a high-voltage MOSFET family based on planar stripe and DMOS technology. These MOSFETs are optimized to reduce on-resistance, offering improved switching performance and higher avalanche energy capability. Through lifetime control, the body diode reverse recovery performance of UniFET FRFET MOSFETs is enhanced. Their reverse recovery time (trr) is less than 100 ns with a reverse dv/dt ruggedness of 15 V/ns, compared to standard planar MOSFETs which exhibit a trr exceeding 200 ns and a reverse dv/dt ruggedness of 4.5 V/ns. As a result, in applications where body diode performance is critical, these devices can reduce the need for additional components and improve system reliability. This device family is suited for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supplies, ATX power supplies, and electronic lamp ballasts.
Applications
- Battery protection
- Load switch
- Power management
Key features
- 20V, 2.6A, RDS(ON) = 83 mΩ (typical) at VGS = 4.5V
- RDS(ON) = 120 mΩ (typical) at VGS = 2.5V
- Lead-free
- Robust and reliable
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2302CDS#C5310968TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,480 | ₹3.82 · 3,480 in stock | View |
 | SI2302#C2841377TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 16,440 | ₹3.63 · 16,440 in stock | View |
 | SI2302DS#C5310967TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 21,120 | ₹4.23 · 21,120 in stock | View |
 | AO3402A#C7603371TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,440 | ₹5.68 · 3,440 in stock | View |
 | AO3402#C7603372TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 620 | ₹4.79 · 620 in stock | View |
