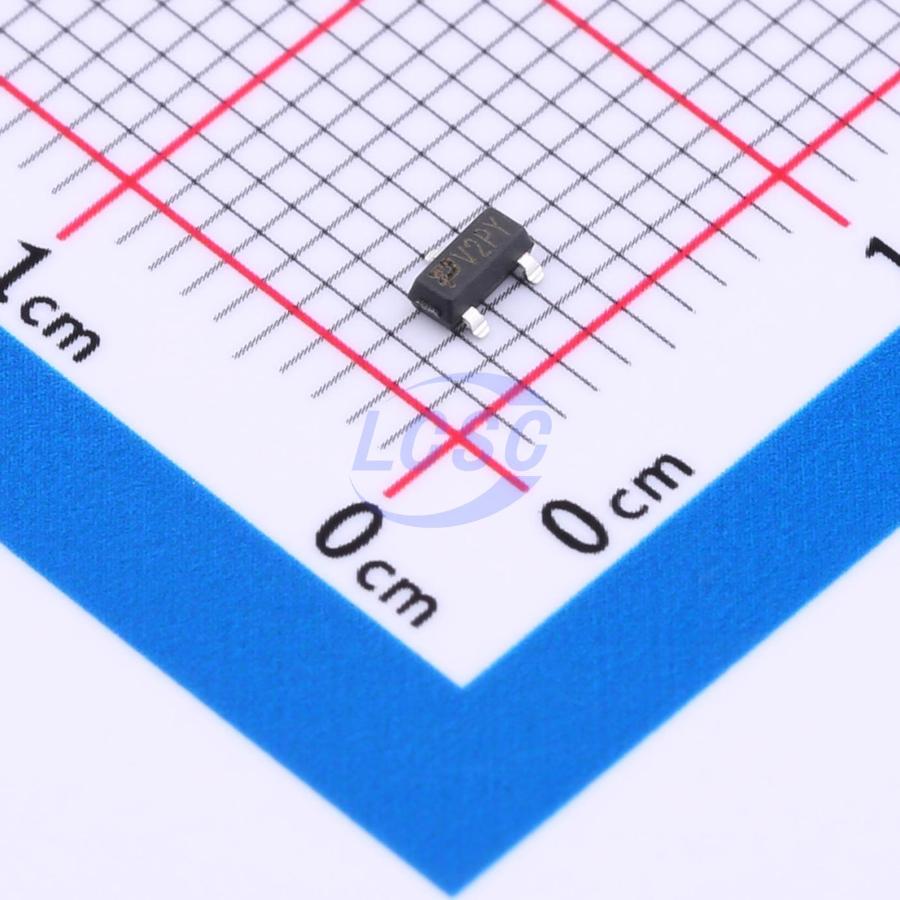

SI2309DS
60V 1.6A 1.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 60V 1.6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SI2309DS
- Store part #
- C5182077
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C5182077
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.64 | ₹68.20 |
| 50+ | ₹11.01 | ₹550.50 |
| 150+ | ₹9.68 | ₹1,452.00 |
| 500+ | ₹8.69 | ₹4,345.00 |
| 3,000+ | ₹7.24 | ₹21,720.00 |
| 6,000+ | ₹6.84 | ₹41,040.00 |
5 × ₹13.64
₹68.20
excl. GST
₹80.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2309DS
₹68.20 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 19.6pF
- Ciss-Input Capacitance
- 444.2pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 17.9pF
- RDS(on)
- 200mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.3nC@30V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Applications
- Load/power switch
- Interface switch
- Logic level translation
Key features
- VDS = -60V, ID = -1.6A
- \mathsfRDS(ON) < 200\mathsfmΩ (at \mathsfVGS = -10\mathsfV)
- RDS(ON) < 240 mΩ (at VGS = -4.5 V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDN5618P#C3021110TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 39,180 | ₹13.03 · 39,180 in stock | View |
 | TPM60V2PS3#C3021111TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,670 | ₹16.59 · 2,670 in stock | View |
 | SI2309CDS#C3021112TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 9,495 | ₹13.34 · 9,495 in stock | View |
 | DMP6350S#C3021113TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 940 | ₹12.95 · 940 in stock | View |
 | ZXMP6A13FTA#C3021114TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 22,190 | ₹14.78 · 22,190 in stock | View |
