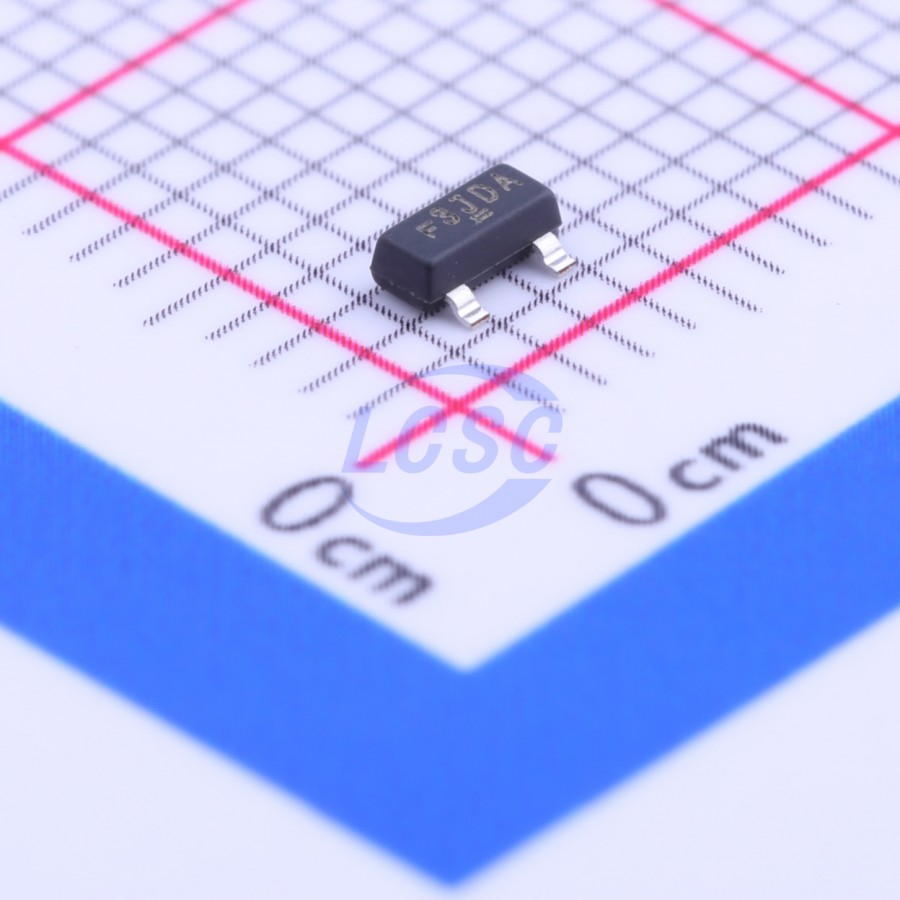

SI2343DS-T1-E3
P-Channel 30V 4A 1.25W Surface Mount SOT-23
SOT-23ROHS3 CompliantDiscontinued
MOSFET P-CH 30V 4A SOT-23
- Manufacturer
- VISHAY
- Manufacturer part #
- SI2343DS-T1-E3
- Store part #
- C144996
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,254 in stock
#C144996
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹325.60 | ₹325.60 |
| 10+ | ₹277.38 | ₹2,773.80 |
| 30+ | ₹247.19 | ₹7,415.70 |
| 100+ | ₹216.14 | ₹21,614.00 |
| 500+ | ₹195.06 | ₹97,530.00 |
| 1,000+ | ₹188.98 | ₹1,88,980.00 |
1 × ₹325.60
₹325.60
excl. GST
₹384.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI2343DS-T1-E3
₹325.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 131pF
- Ciss-Input Capacitance
- 540pF
- Pd - Power Dissipation
- 1.25W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 86mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 21nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
Applications
- Load Switch
- PA Switch
Key features
- Halogen-free According to IEC 61249-2-21
- Available TrenchFET Power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL2343#C2999982Slkor · SOT-23 | Slkor | SOT-23 | 760 | ₹8.92 · 760 in stock | View |
 | CCX3401A#C51953476Chao He · SOT-23-3L | Chao He | SOT-23-3L | 1,66,320 | ₹3.00 · 1,66,320 in stock | View |
| AO3401-L-TWGMC#C52117608TWGMC · SOT-23-3L | TWGMC | SOT-23-3L | 2,660 | ₹4.64 · 2,660 in stock | View | |
 | AO3401A#C5380686FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 1,820 | ₹5.31 · 1,820 in stock | View |
 | PMV50EPEAR#C478012Nexperia · SOT-23 | Nexperia | SOT-23 | 105 | ₹33.23 · 105 in stock | View |
