VISHAYDatasheet (PDF)

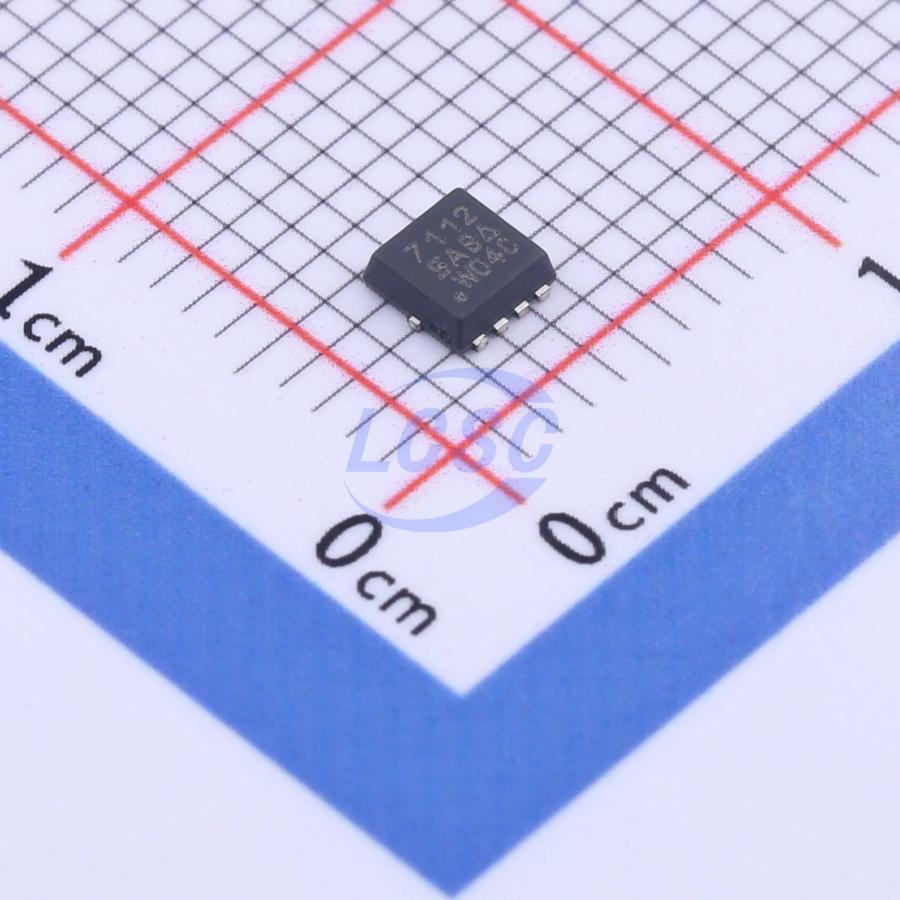

SI7112DN-T1-GE3
N-Channel 30V 17.8A 20W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 17.8A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7112DN-T1-GE3
- Store part #
- C2926777
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,585 in stock
#C2926777
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.04 | ₹162.04 |
| 10+ | ₹134.03 | ₹1,340.30 |
| 30+ | ₹118.61 | ₹3,558.30 |
| 100+ | ₹101.01 | ₹10,101.00 |
| 500+ | ₹93.40 | ₹46,700.00 |
| 1,000+ | ₹89.94 | ₹89,940.00 |
1 × ₹162.04
₹162.04
excl. GST
₹191.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7112DN-T1-GE3
₹162.04 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -50℃~+150℃
- Output Capacitance(Coss)
- 340pF
- Current - Continuous Drain(Id)
- 17.8A
- Ciss-Input Capacitance
- 2.61nF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 8.2mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
N-channel 30 V (D-S) fast-switching MOSFET. The PowerPAK 1212-8 is a derivative of the PowerPAK SO-8, utilizing the same packaging technology to maximize die area. The exposed connection pad on the bottom of the die provides a direct, low-resistance thermal path to the substrate on which the device is mounted, bringing the advantages of the PowerPAK SO-8 into a smaller package with equivalent thermal performance. Its footprint is comparable to TSOP-6, more than 40% smaller than standard TSSOP-8, with more than twice the die capacity of standard TSOP-6. Thermal performance is an order of magnitude better than SO-8 and 20x better than TSSOP-8. It can utilize any PC board heat-spreading capability, enabling lower junction temperatures and approximately 20% improvement in die efficiency compared to TSSOP-8. Single and dual versions of the PowerPAK 1212-8 share the same pinout as single and dual PowerPAK SO-8. The low profile of 1.05 mm makes it an ideal choice for space-constrained applications.
Applications
- Synchronous Rectification - N-Channel MOSFET
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- Low thermal resistance PowerPAK package, 1.07 mm height
- 100% gate resistance tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | E030N6P0ML1#C29781159Existar · PDFN3.3x3.3-8 | Existar | PDFN3.3x3.3-8 | 700 | ₹14.76 · 700 in stock | View |
 | E030N5P8ML1#C29781160Existar · PDFN3.3x3.3-8 | Existar | PDFN3.3x3.3-8 | 4,690 | ₹18.92 · 4,690 in stock | View |
 | HSBB8008#C508825HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 2,890 | ₹48.30 · 2,890 in stock | View |
 | SISH112DN-T1-GE3#C5918322VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 54 | ₹496.73 · 54 in stock | View |
 | LWN3012BD3#C54221211Lewa Micro · PDFN-8L(3.3x3.3) | Lewa Micro | PDFN-8L(3.3x3.3) | 5,000 | ₹22.24 · 5,000 in stock | View |
