VISHAYDatasheet (PDF)

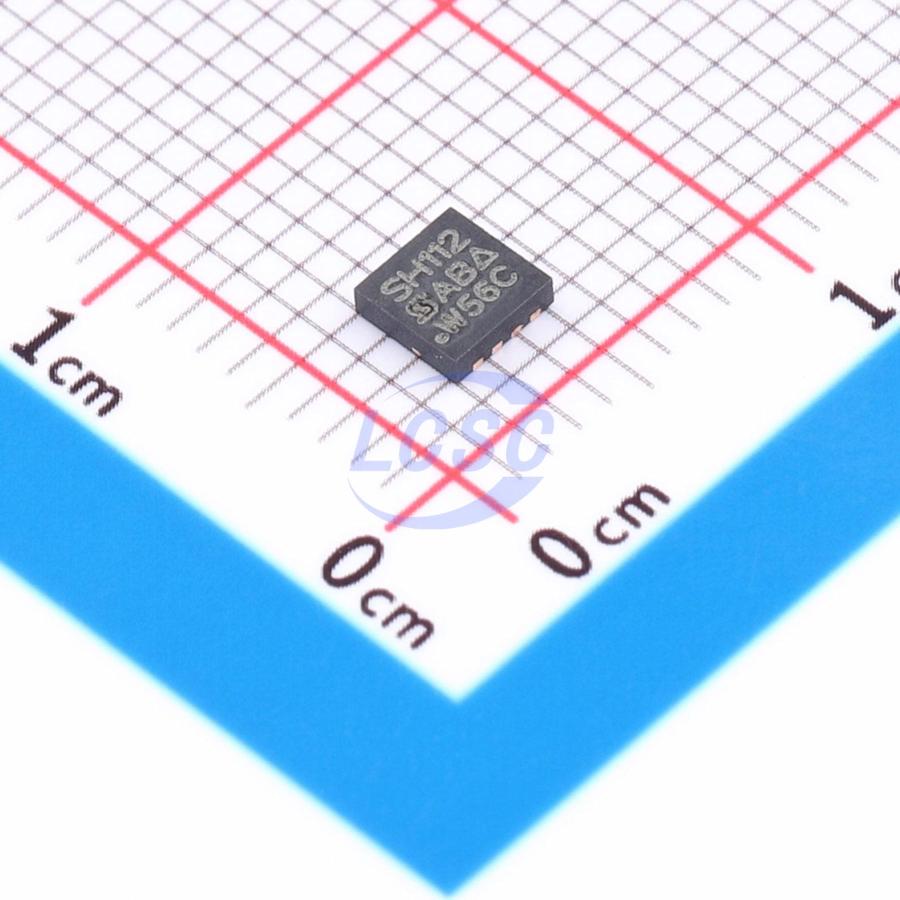

SISH112DN-T1-GE3
30V 17.8A 3.8W 7.5mΩ@10V 1 N-channel PowerPAK1212-8 Single FETs, MOSFETs RoHS
PowerPAK1212-8ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SISH112DN-T1-GE3
- Store part #
- C5918322
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C5918322
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹496.73 | ₹496.73 |
| 10+ | ₹428.43 | ₹4,284.30 |
| 30+ | ₹387.67 | ₹11,630.10 |
| 100+ | ₹346.69 | ₹34,669.00 |
| 500+ | ₹327.83 | ₹1,63,915.00 |
| 1,000+ | ₹319.37 | ₹3,19,370.00 |
1 × ₹496.73
₹496.73
excl. GST
₹586.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SISH112DN-T1-GE3
₹496.73 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -50℃~+150℃
- Current - Continuous Drain(Id)
- 17.8A
- Ciss-Input Capacitance
- 2.61nF
- Pd - Power Dissipation
- 3.8W
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 7.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.189 g
Overview
Applications
- Synchronous rectification
- Load switch
Key features
- TrenchFET Power MOSFET
- 100% Rg tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7112DN-T1-GE3#C2926777VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2,585 | ₹162.04 · 2,585 in stock | View |
 | SIS890DN-T1-GE3#C59572VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 95 | ₹308.76 · 95 in stock | View |
 | CMSC7418A#C7501169Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 315 | ₹42.52 · 315 in stock | View |
 | AGM305AP#C5349129AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 490 | ₹28.03 · 490 in stock | View |
 | LWN3012BD3#C54221211Lewa Micro · PDFN-8L(3.3x3.3) | Lewa Micro | PDFN-8L(3.3x3.3) | 5,000 | ₹22.24 · 5,000 in stock | View |
